62012 (T 1200) - Toro Generator (SN: 005000001 - 005999999) (1985) GENERATOR ASSEMBLY Parts Diagram

Generator

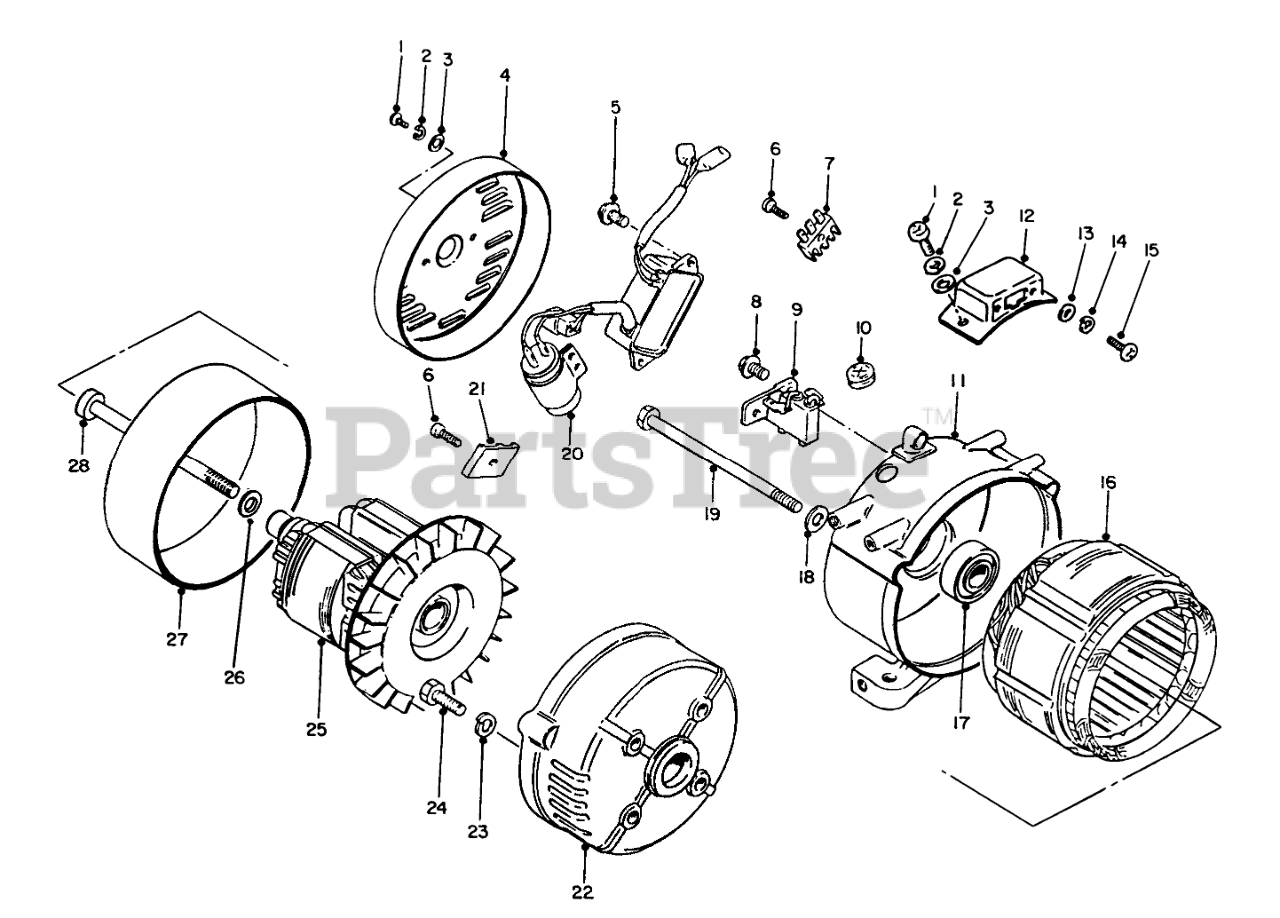

GENERATOR ASSEMBLY Parts Diagram

  • Title
1

Toro 50-0280

SCREW

$

$

Not available

2

Toro 81-1380

Washer

$

$

Not available

3

Toro 50-0610

WASHER

$

$

Not available

4

Toro 55-0380

REAR COVER

$

$

Not available

5

Toro 55-0370

Bolt
(Superseded to 50-0120)

$

$

Not available

6

Toro 50-0300

Screw

$

$

Not available

7

Toro 50-8980

Diode

$

$

Not available

8

$

$

Not available

9

Toro 55-0340

HOLDER

$

$

Not available

10

Toro 55-0420

Grommet

$

$

Not available

11

Toro 55-0310

Bracket-Rear

$

$

Not available

12

Toro 55-0410

Cover-Coupler

$

$

Not available

13

Toro 50-0590

Washer

$

$

Not available

14

Toro 50-0560

Lockwasher

$

$

Not available

15

Toro 50-0220

SCREW

$

$

Not available

16

Toro 55-1130

STATOR

$

$

Not available

17

Toro 55-1100

Bearing

$

$

Not available

18

Toro 50-0620

Washer

$

$

Not available

19

$

$

Not available

20

Toro 55-0360

Regulator-Voltage

$

$

Not available

21

Toro 55-0390

Terminal

$

$

Not available

22

Toro 55-0440

Bracket-Front

$

$

Not available

23

Toro 50-5730

Lockwasher

$

$

Not available

24

$

$

Not available

25

Toro 55-1090

Rotor

$

$

Not available

26

Toro 50-9010

Washer

$

$

Not available

27

Toro 55-1140

Cover

$

$

Not available

28

$

$

Not available

Toro 55-1080

Generator Assembly (Incl. Ref. #1-28)

Note: Not illustrated

$

$

Not available
