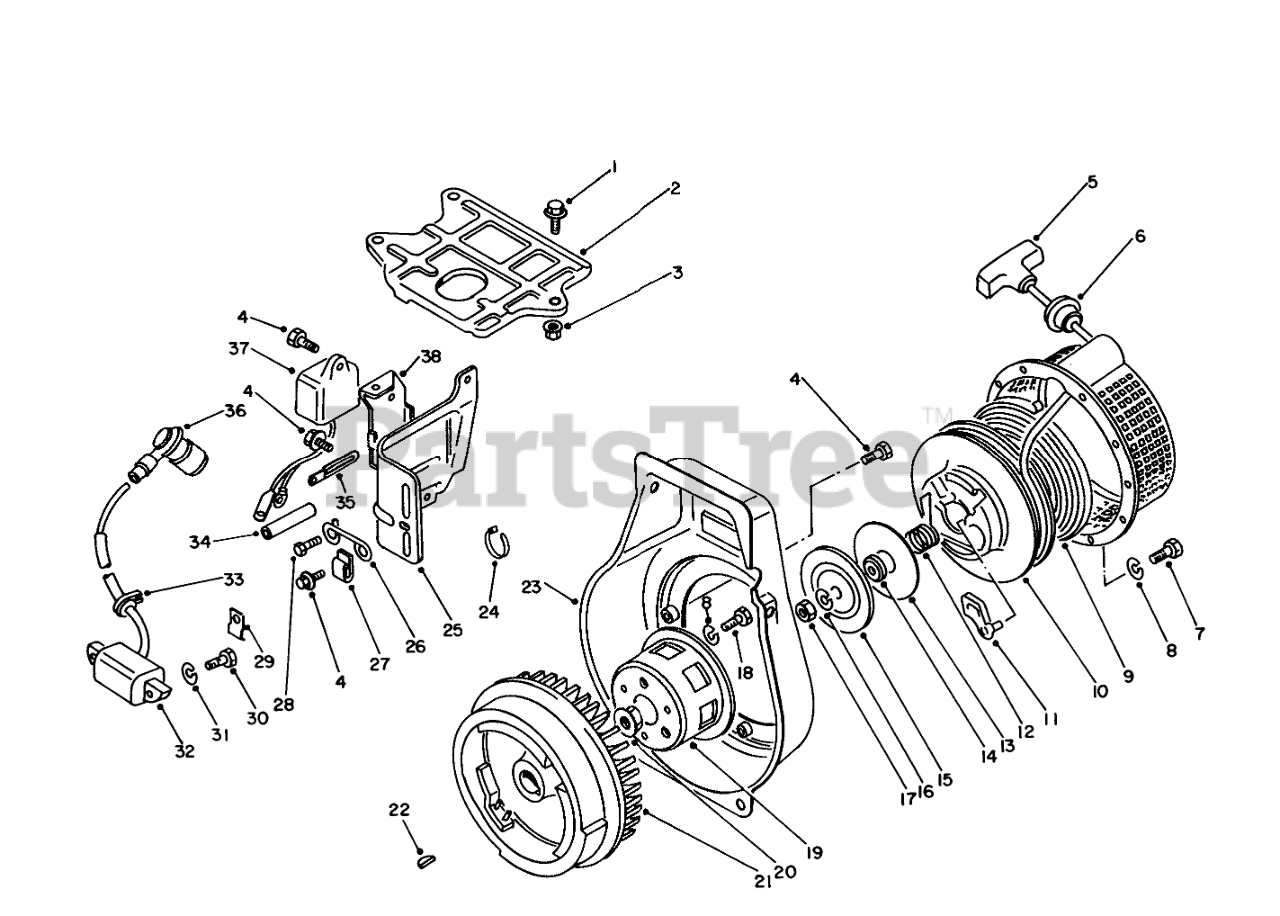

62012 (T 1200) - Toro Generator (SN: 004000001 - 004999999) (1984) RECOIL STARTER ASSEMBLY Parts Diagram

Generator

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 81-0530

Bolt

$

$

Not available

2

Toro 50-2810

Cowling-Upper

$

$

Not available

3

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

4

Toro 50-0170

Bold

$

$

Not available

5

Grip

$

$

Not available

6

Toro 50-2990

Grip Assembly (Incl. Ref. #35)

$

$

Not available

7

Toro 50-0650

BOLT

$

$

Not available

8

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

9

Toro 50-2900

SPRING

$87.99

$

Usually ships in 3-6 days

0

10

Toro 50-2860

Reel

$

$

Not available

11

Toro 50-2880

Ratchet

$

$

Not available

12

Toro 50-2940

Spring
(Superseded to 98-9234)

$

$

Not available

13

Toro 50-2980

Plate-Slide
(Superseded to 98-9234)

$

$

Not available

14

Toro 50-2970

Cover
(Superseded to 98-9234)

$

$

Not available

15

Toro 50-2920

Plate

$

$

Not available

16

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

17

Toro 50-0750

NUT

$

$

Not available

18

Toro 50-0020

Bolt

$

$

Not available

19

Toro 50-3050

Pulley-Starter

$

$

Not available

20

Toro 50-0540

Nut

$

$

Not available

21

Toro 50-3360

Rotor

$

$

Not available

22

Toro 50-0640

KEY

$

$

Not available

23

Toro 50-2740

Cover-Cooling Fan

$

$

Not available

24

Toro 50-1100

Clamp

$

$

Not available

25

Toro 50-2780

Cowling Side

$

$

Not available

26

Toro 50-1030

CLAMP

$

$

Not available

27

Toro 50-1040

Clamp

$

$

Not available

28

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

29

Toro 50-1010

Clamp

$

$

Not available

30

Toro 50-0690

Bolt

$

$

Not available

31

Toro 50-0580

Washer-Lock

$

$

Not available

32

Toro 50-3330

Stater

$

$

Not available

33

Toro 50-3380

Grommet

$

$

Not available

34

Toro 50-3440

CAP CONNECTOR

$

$

Not available

35

Toro 50-1000

Clamp

$

$

Not available

36

Toro 50-3450

SPARK PLUG CAP

$

$

Not available

37

Toro 50-3410

Unit-Transistor Magneto

$

$

Not available

38

Toro 50-3430

Bracket

$

$

Not available

Toro 50-2840

Starter Assembly Recoil (Incl. Ref. #4-5 & 9-17)

Note: Not illustrated

$

$

Not available
