62012 (T 1200) - Toro Generator (SN: 003000001 - 003999999) (1983) MUFFLER-EXHAUST ASSEMBLY Parts Diagram

Generator

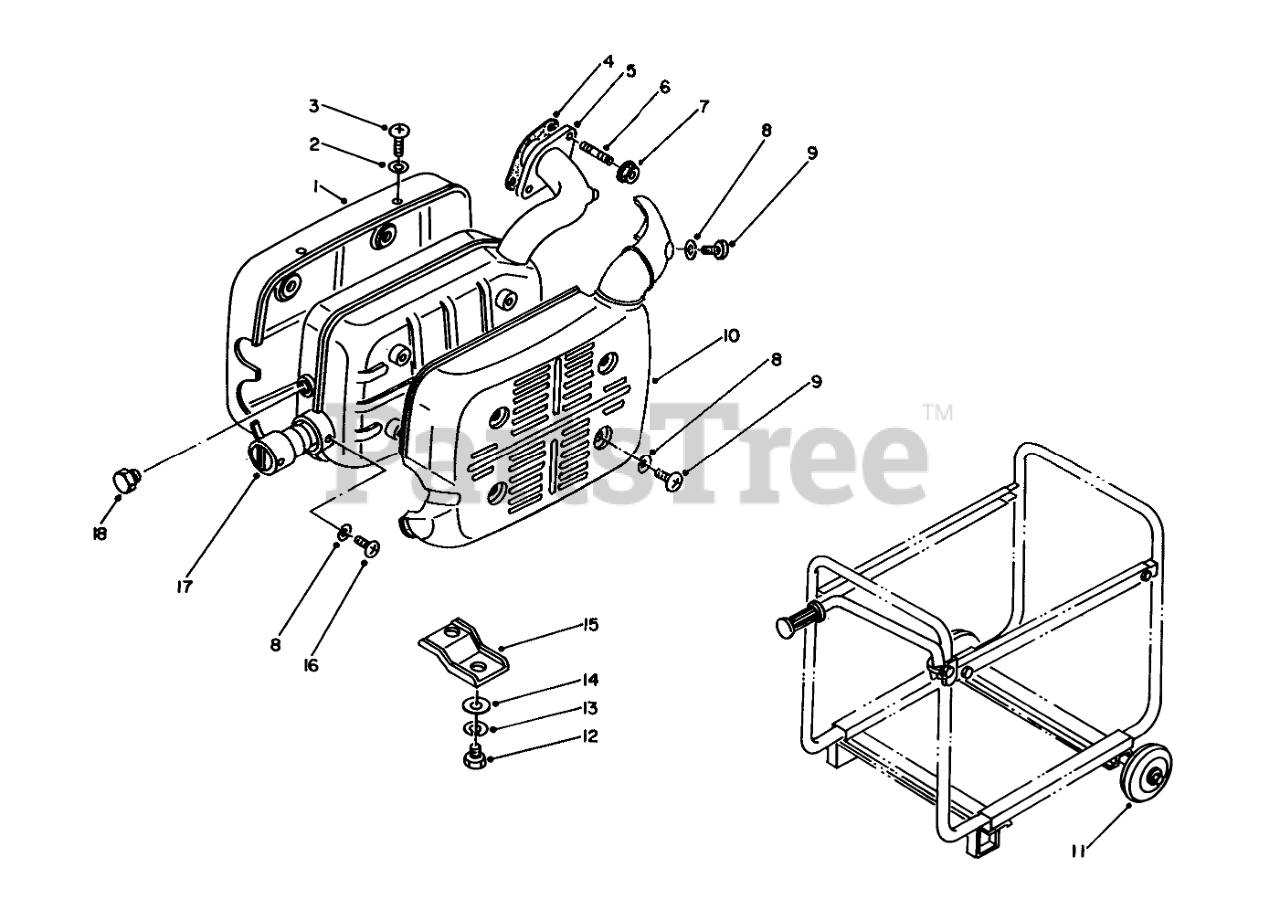

MUFFLER-EXHAUST ASSEMBLY Parts Diagram

  • Title
1

Toro 50-2690

Cover-Rear

$

$

Not available

2

Toro 81-1420

Lockwasher

$

$

Not available

3

Toro 50-0230

Screw

$

$

Not available

4

Toro 50-2590

Gasket-Exhaust

$

$

Not available

5

Toro 50-2630

MUFFLER ASSM

$

$

Not available

6

Toro 50-0100

Stud Bolt

$

$

Not available

7

$

$

Not available

8

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

9

Toro 81-1140

SCREW

$6.99

$

Usually ships in 3-6 days

0

10

Toro 50-2660

Cover-Front

$

$

Not available

11

Toro 50-3660

Wheel Assembly (Optional)

$

$

Not available

12

$

$

Not available

13

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

14

Toro 50-0630

Washer

$

$

Not available

15

Toro 50-2650

Bracket-Muffler

$

$

Not available

16

Toro 50-0350

Screw

$

$

Not available

17

Toro 50-2700

Cleanout Tube

$

$

Not available

18

Toro 50-2640

Drain Plug

$

$

Not available
