62008 (T 800) - Toro Generator (SN: 008000001 - 008999999) (1988) CYLINDER ASSEMBLY Parts Diagram

Generator

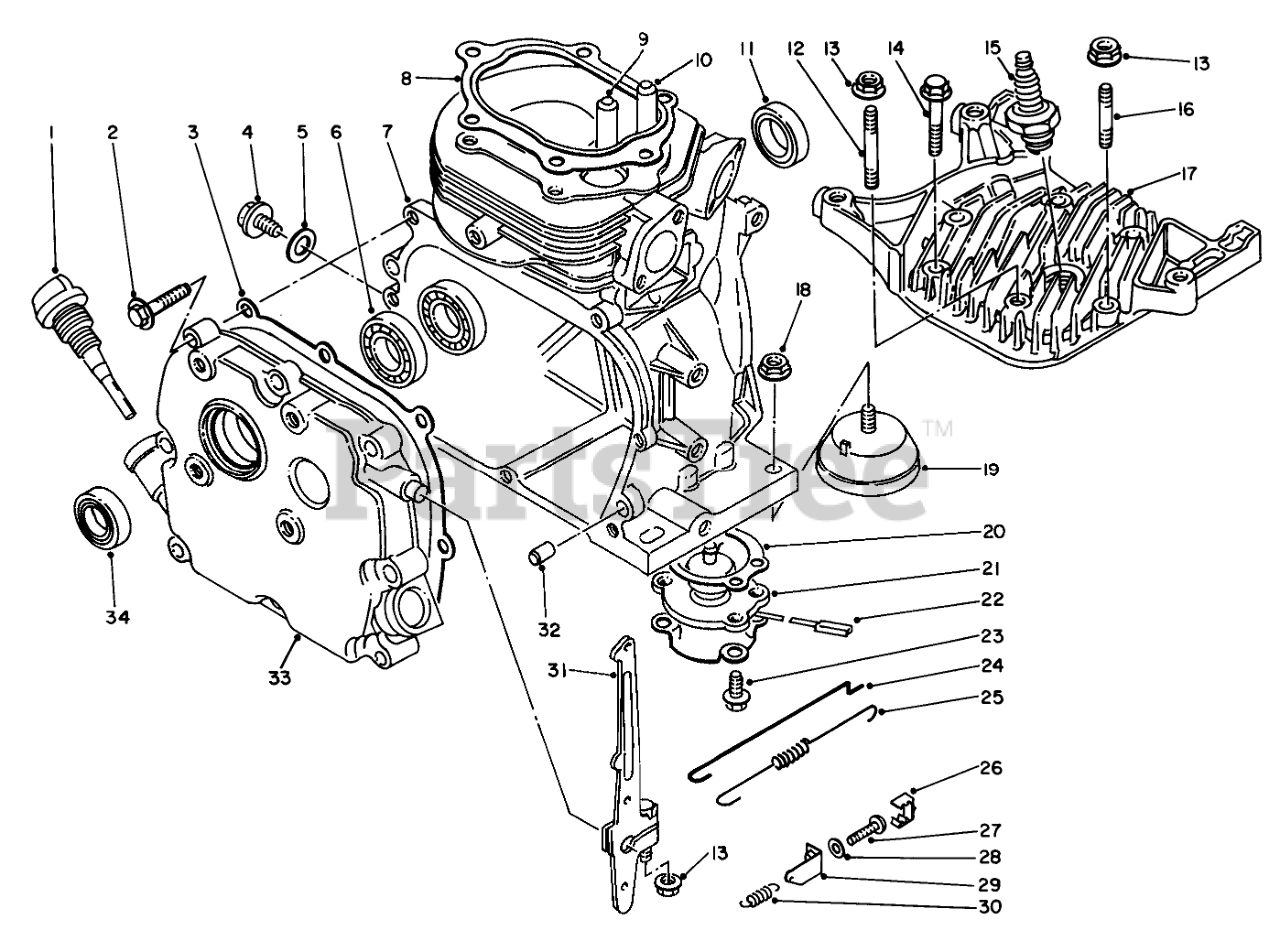

CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro 53-0120

Gauge-Oil Level

$

$

Not available

2

Toro 53-0130

BOLT

$

$

Not available

3

Toro 53-0110

CRANKCASE GASKET

$

$

Not available

4

Toro 81-4970

OIL DRAIN PLUG

$8.49

$

Usually ships in 3-6 days

0

5

Toro 50-0780

Gasket

$

$

Not available

6

Toro 55-0590

Bearing

$

$

Not available

7

Toro 53-0060

Cylinder Assembly

$

$

Not available

8

Toro 53-0020

CYL. GASKET

$

$

Not available

9

Toro 53-0080

Guide-Exhaust Valve

$

$

Not available

10

Toro 53-0070

Guide-Intake Valve
(Superseded to 81-3830)

$

$

Not available

11

Toro 50-0860

OIL SEAL

$

$

Not available

12

Toro 53-0040

Bolt-Stud

$

$

Not available

13

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

14

Toro 53-1490

Bolt

$

$

Not available

15

Toro 81-0180

SPARK PLUG

$8.99

$

Usually ships in 3-6 days

0

16

Toro 53-0030

Bolt-Stud

$

$

Not available

17

Toro 55-1210

Cylinder Head

$

$

Not available

18

Toro 50-7010

NUT

$

$

Not available

19

Toro 55-1230

MOUNTING

$

$

Not available

20

Toro 50-3520

GASKET

$

$

Not available

21

Toro 55-0030

SENSOR

$

$

Not available

22

Toro 50-3540

Plate

$

$

Not available

23

Toro 50-6190

Bolt

$

$

Not available

24

Toro 50-3300

Rod-Carburetor

$

$

Not available

25

Toro 55-1280

SPRING

$

$

Not available

26

Toro 55-1270

Cap

$

$

Not available

27

Toro 55-1250

Screw

$

$

Not available

28

Toro 55-1260

Washer

$

$

Not available

29

Toro 55-1240

Hook-Governor

$

$

Not available

30

Toro 53-0250

SPRING

$

$

Not available

31

Toro 53-0140

Lever-Throttle Conlrol

$

$

Not available

32

Toro 50-0450

PIN

$

$

Not available

33

Toro 53-0100

Cover-Crankcase Side

$

$

Not available

34

Toro 50-0860

OIL SEAL

$

$

Not available

Toro 55-1290

Gasket Set (Optional)

$

$

Not available
