62008 (T 800) - Toro Generator (SN: 008000001 - 008999999) (1988) CONTROL PANEL Parts Diagram

Generator

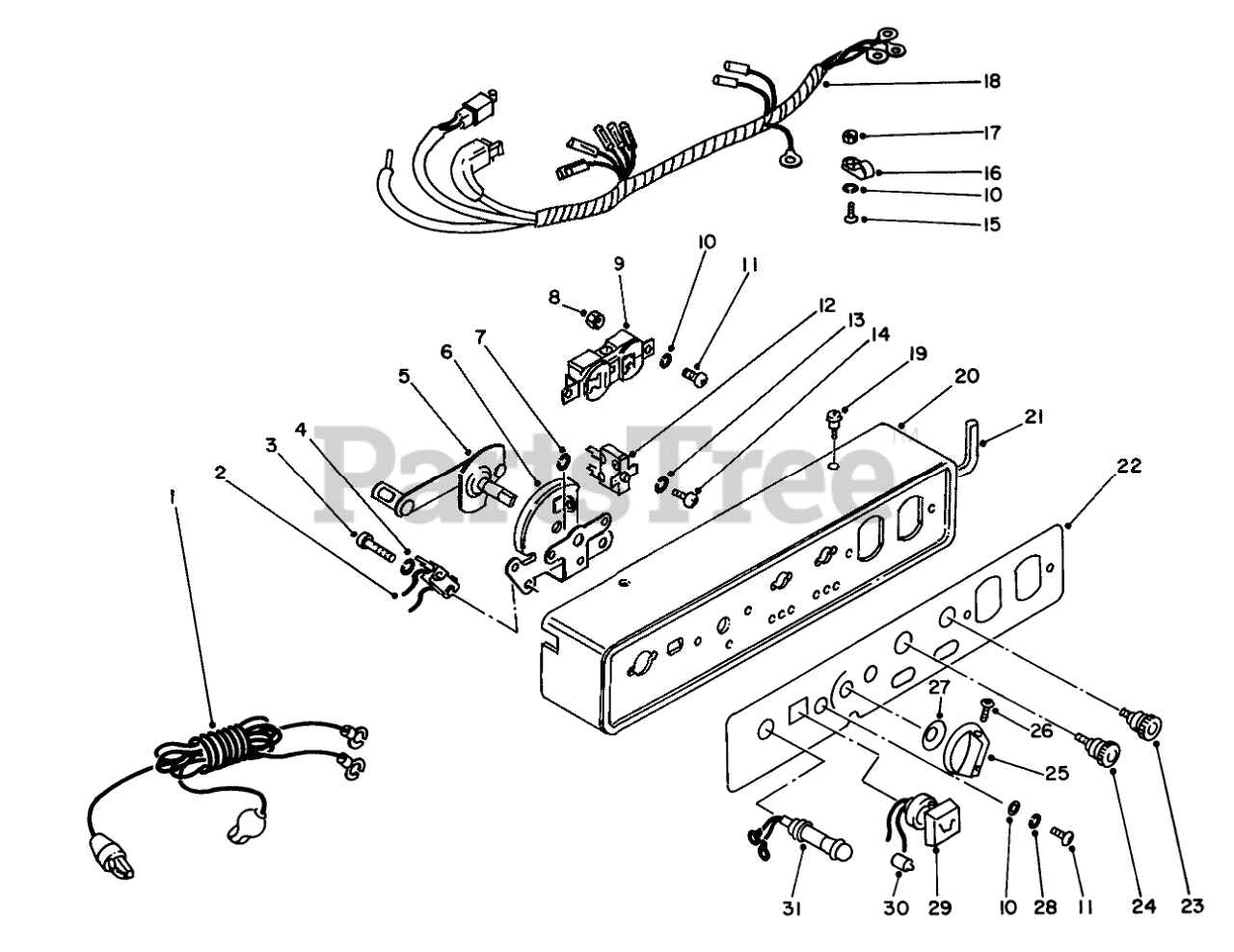

CONTROL PANEL Parts Diagram

  • Title
1

Toro 55-2160

Cord-Charger (optional)

$

$

Not available

2

Toro 55-2140

Switch-Engine

$

$

Not available

3

Toro 55-2150

Screw

$

$

Not available

4

Toro 50-0590

Washer

$

$

Not available

5

Toro 55-2120

Shaft-Fuel Cock Knob

$

$

Not available

6

Toro 55-2100

Bracket-Fuel Cock Knob

$

$

Not available

7

Toro 55-2130

E-Ring

$

$

Not available

8

$

$

Not available

9

Toro 50-4490

RECEPTACLE

$

$

Not available

10

Toro 50-0600

Washer

$

$

Not available

11

Toro 53-1080

Screw

$

$

Not available

12

Toro 55-2020

PROTECTOR

$

$

Not available

Toro 55-2030

PROTECTOR

$

$

Not available

13

Toro 50-6750

Washer

$

$

Not available

14

Toro 50-8710

Screw

$

$

Not available

15

Toro 50-0240

Screw

$

$

Not available

16

Toro 55-2060

Clamp

$

$

Not available

17

$

$

Not available

18

Toro 55-2050

Wiring Harness Control

$

$

Not available

19

Toro 55-2000

Screw

$

$

Not available

20

Toro 55-1980

Panel-Control

$

$

Not available

21

Toro 55-2010

Seal (L:421)

$

$

Not available

22

Toro 55-1990

Plate-Panel

$

$

Not available

23

Toro 50-4540

TERMINAL +

$

$

Not available

24

Toro 50-4550

Terminal (-)

$

$

Not available

25

$

$

Not available

26

Toro 55-2080

Screw

$

$

Not available

27

Toro 55-2090

Wave Washer

$

$

Not available

28

Toro 55-2110

Washer-Lock

$

$

Not available

29

Toro 50-3480

Lamp-Oil Level

$

$

Not available

30

$

$

Not available

31

Toro 50-9140

Holder

$

$

Not available
