62008 (T 800) - Toro Generator (SN: 008000001 - 008999999) (1988) CARBURETOR Parts Diagram

Generator

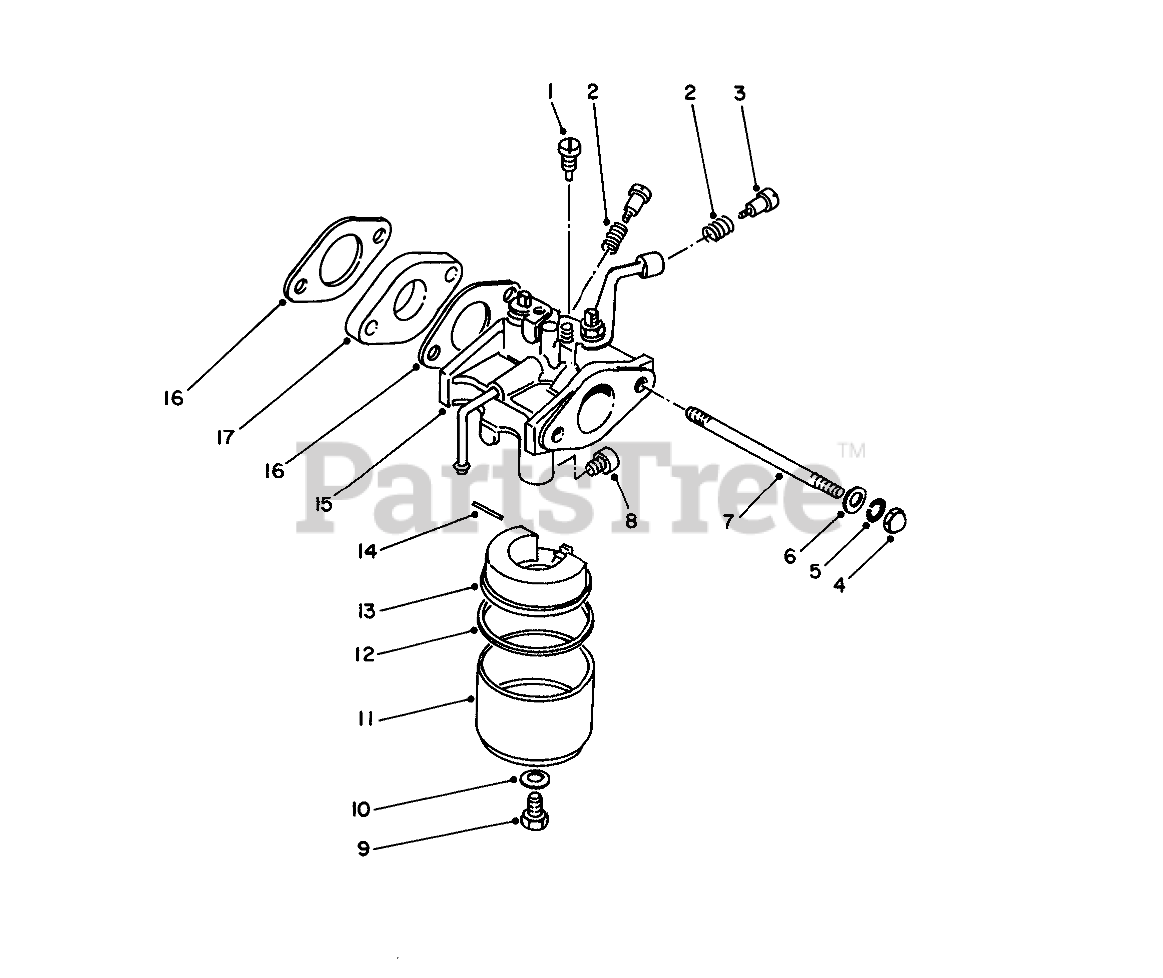

CARBURETOR Parts Diagram

  • Title
1

Toro 50-1220

PILOT JET
(Superseded to 94-1684)

$

$

Not available

2

Toro 50-2340

SPRING

$

$

Not available

3

Toro 50-0250

SCREW

$

$

Not available

4

$

$

Not available

5

Toro 55-1360

Washer-Lock

$

$

Not available

6

Toro 55-1370

Washer

$

$

Not available

7

Toro 55-1340

Stud Bolt

$

$

Not available

8

$

$

Not available

9

$

$

Not available

10

Toro 50-2260

GASKET

$

$

Not available

11

Bowl-Float

$

$

Not available

12

Toro 50-2280

GASKET

$

$

Not available

13

Toro 55-1320

FLOAT

$

$

Not available

14

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

15

Toro 55-1310

Carburetor Assembly (Incl. Ref . #1-14 & 16-18)

$

$

Not available

16

Toro 50-2450

GASKET

$

$

Not available

17

Toro 53-0540

Insulator

$

$

Not available
