62008 (T 800) - Toro Generator (SN: 006000001 - 006999999) (1986) MAGNETO-GENERATOR Parts Diagram

Generator

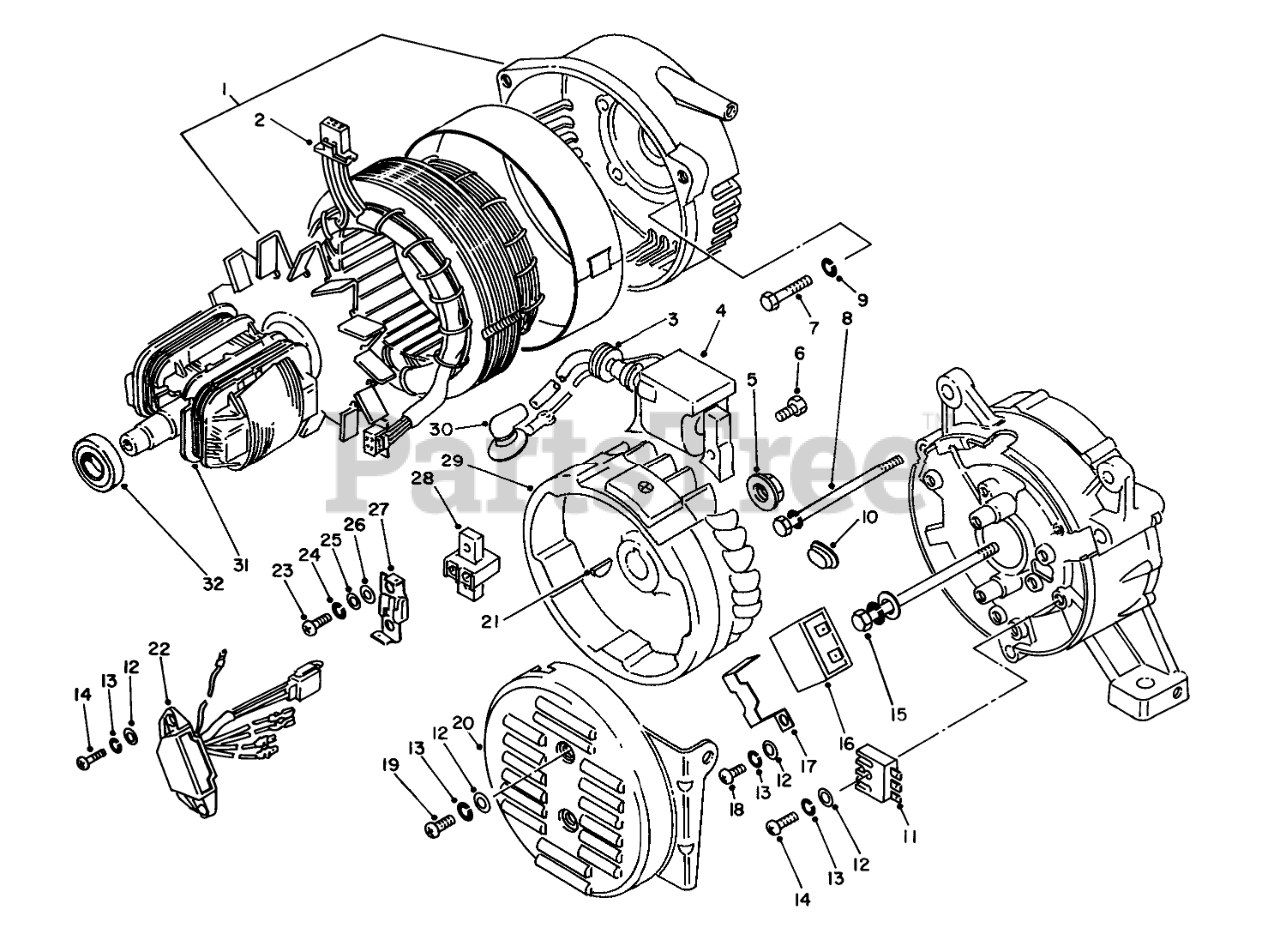

MAGNETO-GENERATOR Parts Diagram

  • Title
1

Toro 55-1830

Generator Assy (120V, 60Hz)

$

$

Not available

2

Toro 55-1950

Stator-Generator (120V)

$

$

Not available

3

Toro 53-0840

Grommet

$

$

Not available

4

Toro 55-1960

Stator Assy (Incl. Ref. #3)

$

$

Not available

5

$

$

Not available

6

$

$

Not available

7

$

$

Not available

8

Toro 55-1870

Bolt-Stator

$

$

Not available

9

Toro 50-5730

Lockwasher

$

$

Not available

10

$

$

Not available

11

Toro 55-1880

Diode
(Superseded to 50-8980)

$

$

Not available

12

Toro 50-0610

WASHER

$

$

Not available

13

Toro 81-1380

Washer

$

$

Not available

14

Toro 50-0310

Screw
(Superseded to 55-3390)

$

$

Not available

15

Toro 55-1860

Bolt-Rotor

$

$

Not available

16

Toro 55-1890

CAPACITOR

$

$

Not available

17

Toro 55-1900

Bracket

$

$

Not available

18

Toro 50-0280

SCREW

$

$

Not available

19

Toro 50-0290

Screw

$

$

Not available

20

Toro 55-1850

Cover-Rear

$

$

Not available

21

$

$

Not available

22

Toro 55-1940

REGULATOR

$

$

Not available

23

Toro 50-0260

Screw
(Superseded to 81-4550)

$

$

Not available

24

Toro 81-1420

Lockwasher

$

$

Not available

25

Toro 50-0600

Washer

$

$

Not available

26

Toro 55-1930

Bushing

$

$

Not available

27

Toro 55-1920

BRUSH

$

$

Not available

28

Toro 55-1910

Holder-Brush

$

$

Not available

29

Toro 53-0850

Rotor

$

$

Not available

30

Toro 55-1970

Cap-Spark Plug

$

$

Not available

31

Toro 55-1840

Rotor (Incl. Ref. #32)

$

$

Not available

32

Toro 50-0480

Bearing

$

$

Not available
