62005 (T 500) - Toro Generator (SN: 005000001 - 005999999) (1985) STARTER-EXHAUST ASSEMBLY Parts Diagram

Generator

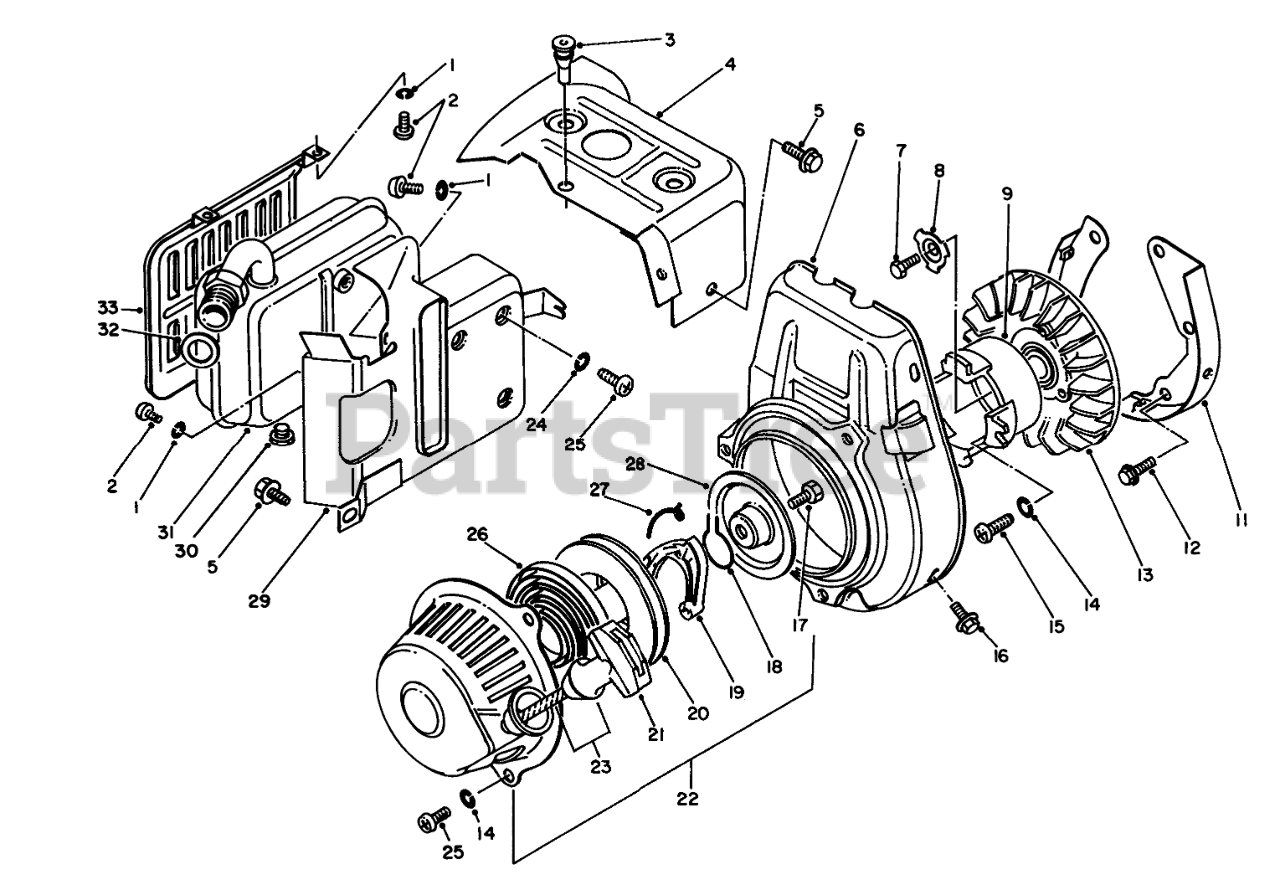

STARTER-EXHAUST ASSEMBLY Parts Diagram

  • Title
1

Toro 81-1380

Washer

$

$

Not available

2

Toro 50-0270

Screw

$

$

Not available

3

Toro 50-2820

Cushion

$

$

Not available

4

Toro 50-2790

Cowling-Ventilation

$

$

Not available

5

$

$

Not available

6

Toro 55-3200

COOLING FAN COVER

$

$

Not available

7

$

$

Not available

8

Toro 50-2720

Washer

$

$

Not available

9

Toro 50-3040

STARTER ASM

$

$

Not available

11

Toro 55-3210

Plate-Cooling Fan Front

$

$

Not available

12

$

$

Not available

13

Toro 50-2710

Fan-Cooling

$

$

Not available

14

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

15

Toro 50-0380

Screw

$

$

Not available

16

$

$

Not available

17

$

$

Not available

18

Toro 50-2950

Spring

$

$

Not available

19

Toro 50-2890

Ratchet

$

$

Not available

20

$

$

Not available

21

$

$

Currently unavailable

22

Toro 55-3190

Starter Assembly-Recoil

$

$

Not available

23

Toro 50-3000

Grip Assy. (Incl. Ref. #211)

$

$

Not available

25

Toro 50-0360

Screw

$

$

Not available

26

Toro 50-2910

Spring

$

$

Not available

27

Toro 50-2960

Spring-Return

$

$

Not available

28

Toro 50-7650

Plate-Friction

$

$

Currently unavailable

29

Toro 50-2680

Cover-Rear

$

$

Not available

30

Toro 55-3220

Plug-Drain

$

$

Not available

31

Toro 50-2620

Muffler

$

$

Not available

32

Toro 50-2600

Gasket-Exhaust

$

$

Not available

33

Toro 50-2670

Cover-Front

$

$

Not available
