62005 (T 500) - Toro Generator (SN: 005000001 - 005999999) (1985) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

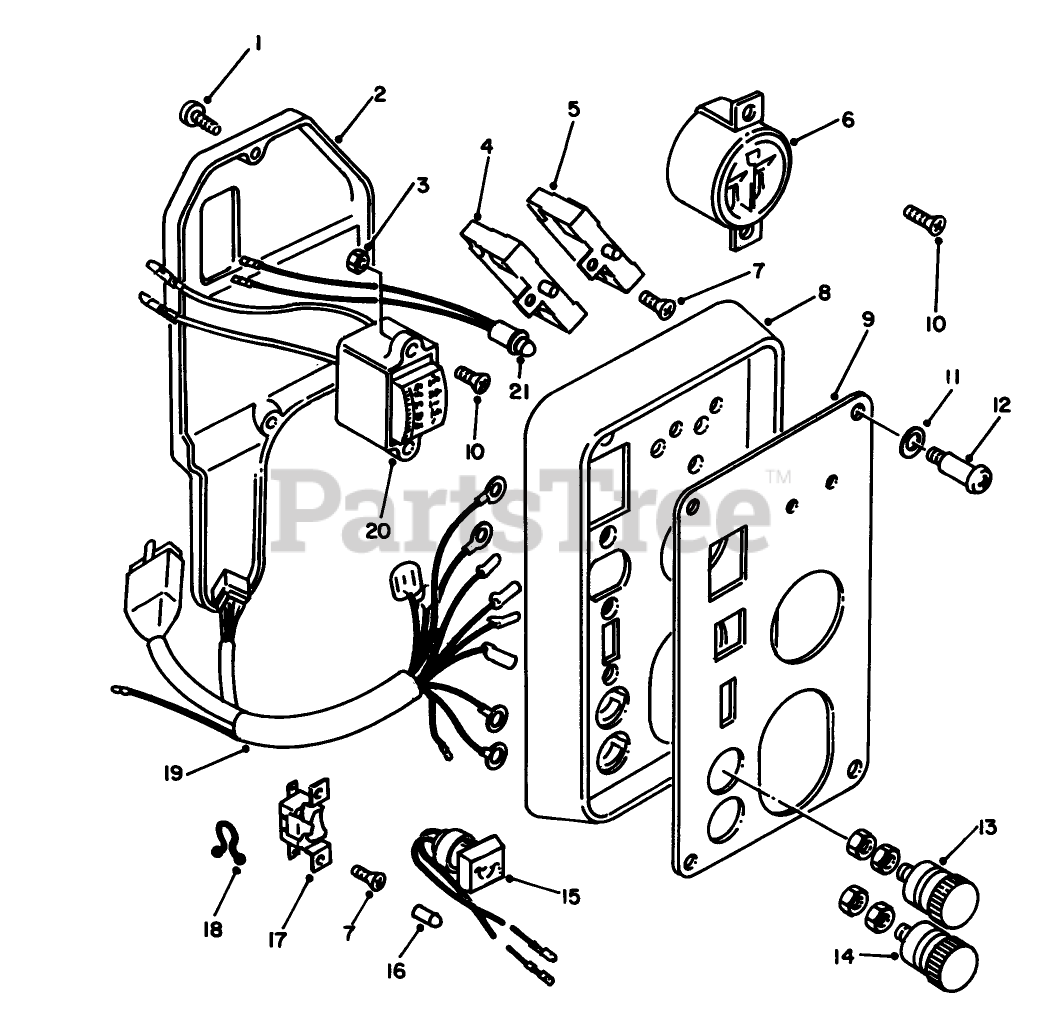

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title
1

Toro 55-3410

Screw

$

$

Not available

2

Toro 55-3400

Cover-Panel

$

$

Not available

3

$

$

Not available

4

Toro 55-3430

Circuit Breaker(4.0A)

$

$

Not available

5

Toro 55-3420

Circuit Breaker (15A)

$

$

Not available

6

Toro 55-3120

Receptacle

$

$

Not available

7

Toro 50-0390

Screw

$

$

Not available

8

Toro 55-3370

Panel-Control

$

$

Not available

9

Toro 55-3380

Plate-Panel

$

$

Not available

10

Toro 50-0400

Screw

$

$

Not available

11

Toro 50-0620

Washer

$

$

Not available

12

Toro 55-3390

SCREW

$

$

Not available

13

Toro 55-3440

Terminal (+)

$

$

Not available

14

Toro 55-3450

Terminal (-)

$

$

Not available

15

Toro 50-3480

Lamp-Oil Level

$

$

Not available

16

$

$

Not available

17

Toro 50-4350

Switch

$

$

Not available

18

Toro 50-1110

Clamp

$

$

Not available

19

Toro 55-3460

Harness-Control

$

$

Not available

20

Toro 50-4390

Hertz Meter

$

$

Not available

21

Toro 50-4400

CYCLE METER LAMP ASM

$

$

Not available
