62005 (T 500) - Toro Generator (SN: 003000001 - 003999999) (1983) STARTER-EXHAUST ASSEMBLY Parts Diagram

Generator

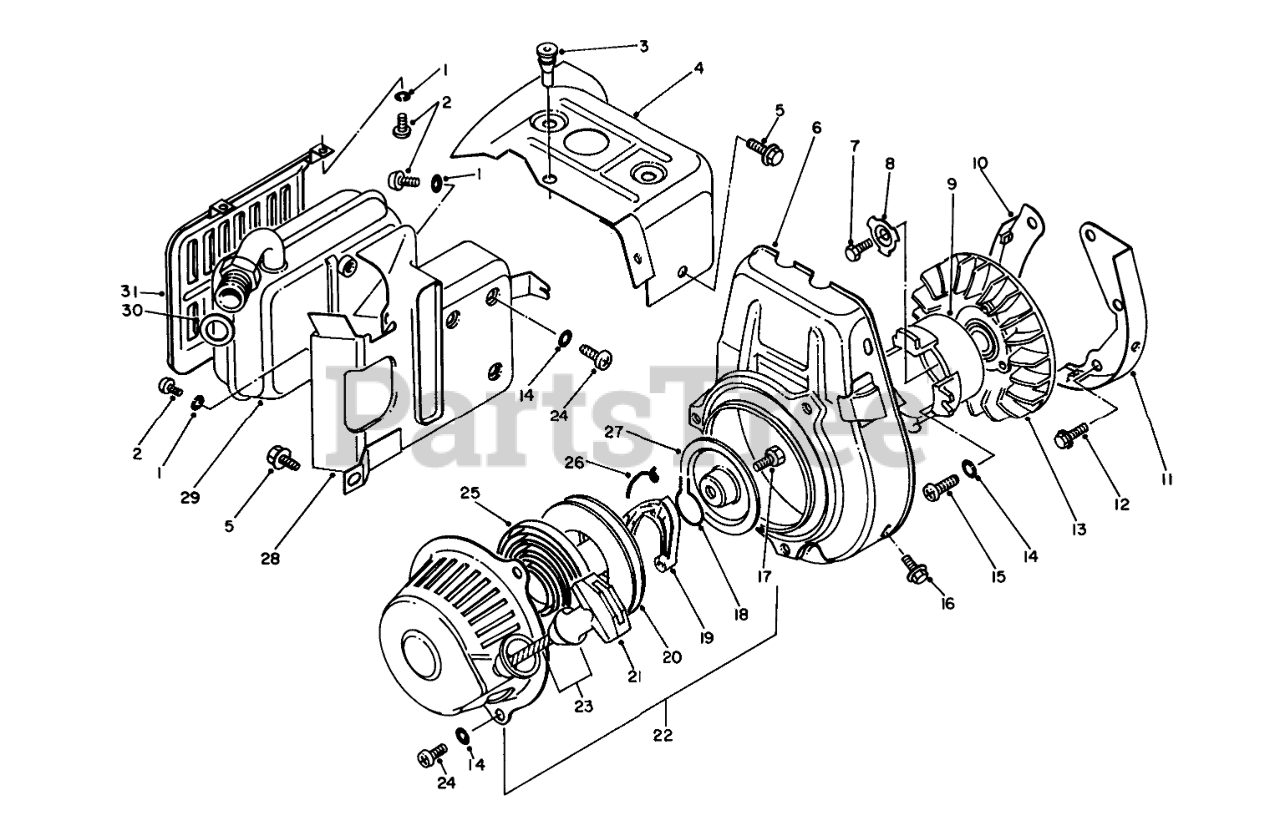

STARTER-EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 81-1380

Washer

$

$

Not available

2

Toro 50-0270

Screw

$

$

Not available

3

Toro 50-2820

Cushion

$

$

Not available

4

Toro 50-2790

Cowling-Ventilation

$

$

Not available

5

Toro 50-0170

Bold

$

$

Not available

6

Toro 50-2750

Cover-Cooling Fan

$

$

Not available

7

Toro 81-0890

Bolt

$

$

Not available

8

Toro 50-2720

Washer

$

$

Not available

9

Toro 50-3040

STARTER ASM

$

$

Not available

10

Toro 50-2830

Plate-Cooling Fan Rear

$

$

Not available

11

Toro 50-2760

Plate-Cooling Fan Front

$

$

Not available

12

Toro 50-0120

BOLT

$

$

Not available

13

Toro 50-2710

Fan-Cooling

$

$

Not available

14

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

15

Toro 50-0380

Screw

$

$

Not available

16

Toro 50-0110

Bolt

$

$

Not available

17

Toro 50-3060

Bolt

$

$

Not available

18

Toro 50-2950

Spring

$

$

Not available

19

Toro 50-2890

Ratchet

$

$

Not available

20

Toro 50-2870

Reel

$

$

Not available

21

Grip

$

$

Not available

22

Toro 50-2850

Starter Assembly-Recoil
(Superseded to 55-3190)

$

$

Not available

23

Toro 50-3000

Grip Assy. (Incl. Ref. #21)

$

$

Not available

24

Toro 50-0360

Screw

$

$

Not available

25

Toro 50-2910

Spring

$

$

Not available

26

Toro 50-2960

Spring-Return

$

$

Not available

27

Toro 50-2930

Plate-Friction

$

$

Not available

28

Toro 50-2680

Cover-Rear

$

$

Not available

29

Toro 50-2620

Muffler

$

$

Not available

30

Toro 50-2600

Gasket-Exhaust

$

$

Not available

31

Toro 50-2670

Cover-Front

$

$

Not available

Toro 50-3570

Lead Wire-Sealed (Optional)

Note: Not illustrated

$

$

Not available
