62005 (T 500) - Toro Generator (SN: 003000001 - 003999999) (1983) GENERATOR ASSEMBLY Parts Diagram

Generator

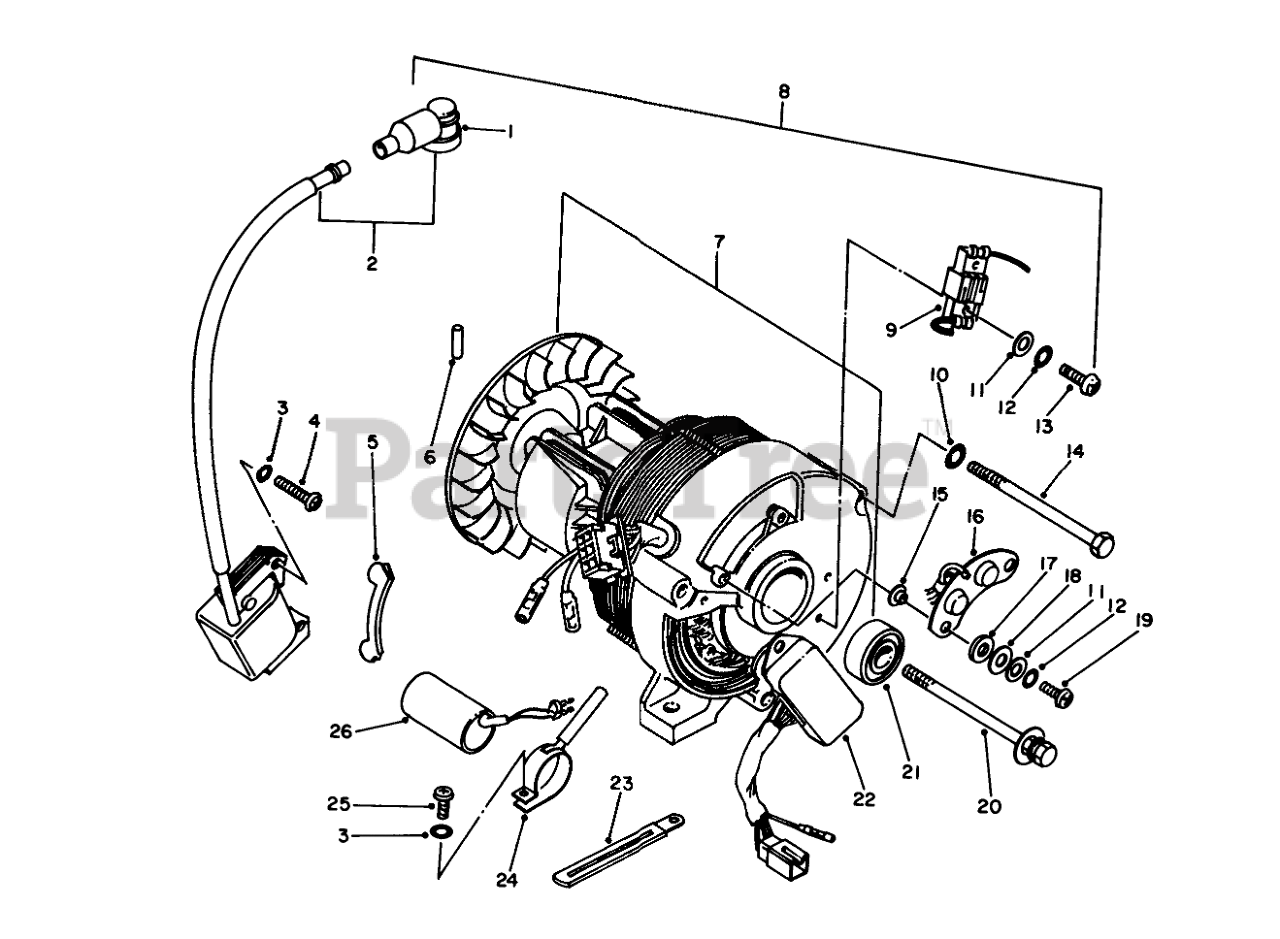

GENERATOR ASSEMBLY Parts Diagram

  • Title
1

Toro 50-3460

CAP ASM

$

$

Not available

2

Toro 50-3340

STARTOR ASM

$

$

Not available

3

Toro 81-1380

Washer

$

$

Not available

4

Toro 50-0320

Screw

$

$

Not available

5

Toro 50-3390

Seal-Stator

$

$

Not available

6

$

$

Not available

7

Toro 50-4220

Rotor

$

$

Not available

8

Toro 50-3960

Generator Assembly

$

$

Not available

9

Toro 50-4170

Holder Brush

$

$

Not available

10

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

11

Toro 50-0600

Washer

$

$

Not available

12

Toro 81-1420

Lockwasher

$

$

Not available

13

Toro 50-0260

Screw
(Superseded to 81-4550)

$

$

Not available

14

$

$

Not available

15

Toro 50-4140

Bushing

$

$

Not available

16

Toro 50-4100

Diode

$

$

Not available

17

Toro 50-4120

Washer

$

$

Not available

18

Toro 50-4150

Washer

$

$

Not available

19

Toro 50-0260

Screw
(Superseded to 81-4550)

$

$

Not available

20

Toro 50-4250

Bolt (L:125)

$

$

Not available

21

Toro 50-0480

Bearing

$

$

Not available

22

Toro 50-4050

A.V.R.

$

$

Not available

23

Toro 50-1090

Clamp

$

$

Not available

24

Toro 50-4080

Bracket

$

$

Not available

25

Toro 50-0280

SCREW

$

$

Not available

26

Toro 50-4070

Capacitor (10 UF)

$

$

Not available
