62005 (T 500) - Toro Generator (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Generator

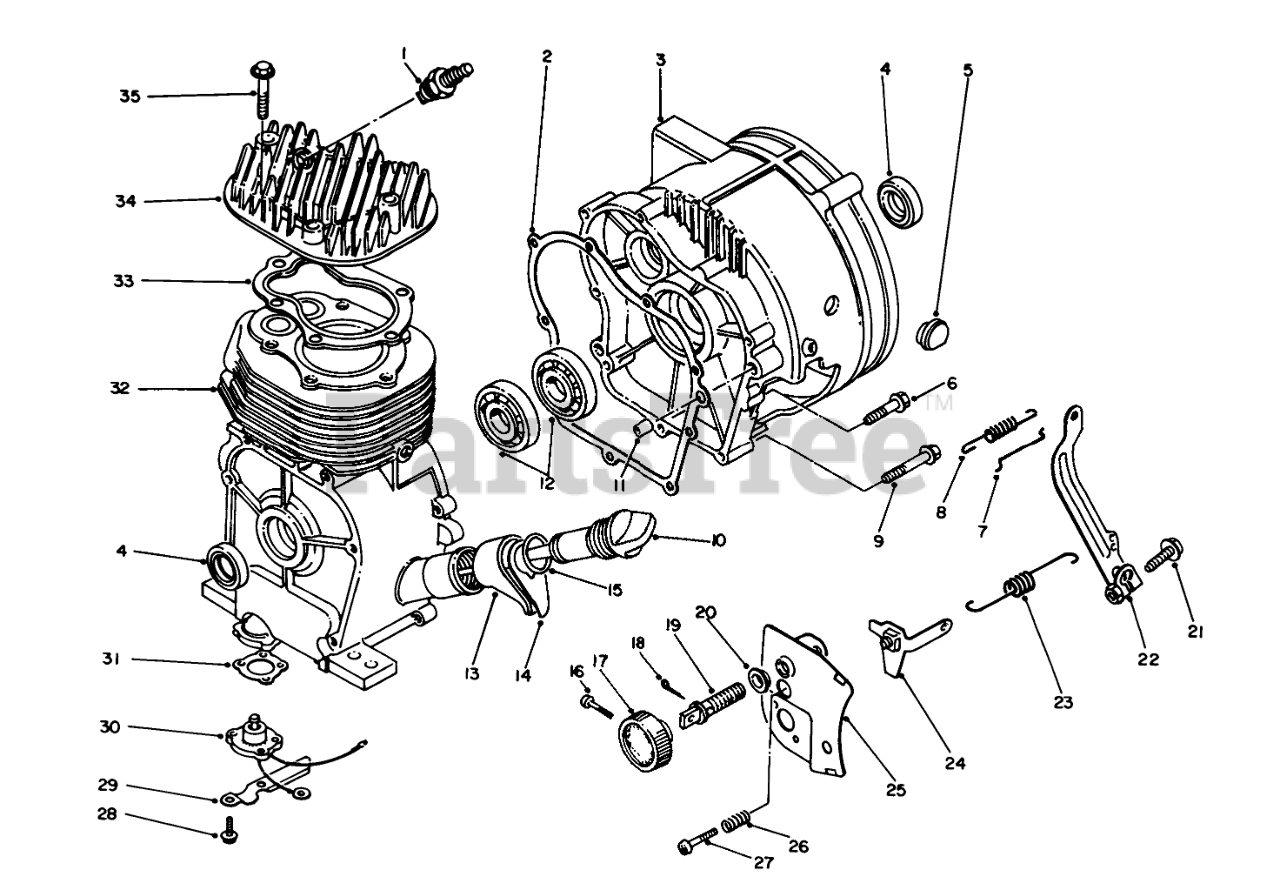

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 50-1170

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

2

Toro 50-1420

Gasket-Crankcase

$

$

Not available

3

Toro 50-1390

Cover-Crankcase Side

$

$

Not available

4

Toro 50-0860

OIL SEAL

$

$

Not available

5

Toro 50-0810

Cap-Cover

$

$

Not available

6

Toro 50-0150

Bolt

$

$

Not available

7

Toro 50-3290

Rod-Carburetor

$

$

Not available

8

Toro 50-1120

SPRING

$

$

Not available

9

Toro 50-0160

Bolt

$

$

Not available

10

Toro 50-1460

Gauge-Oil Level

$

$

Not available

11

Toro 50-0450

PIN

$

$

Not available

12

Toro 50-0820

Bearing

$

$

Not available

13

Toro 50-1470

Plate-Oil Guide

$

$

Not available

14

Toro 50-1480

Cover-Plate

$

$

Not available

15

Toro 50-0840

O-RING

$

$

Not available

16

Toro 50-0700

Screw

$

$

Not available

17

Toro 50-3310

Knob-Throttle Control

$

$

Not available

18

Toro 50-0140

Bolt

$

$

Not available

19

Toro 50-3270

SHAFT

$

$

Not available

20

Toro 50-0880

Bushing

$

$

Not available

21

Toro 50-0140

Bolt

$

$

Not available

22

Toro 50-3180

Lever-Control

$

$

Not available

23

Toro 50-1140

Spring

$

$

Not available

24

Toro 50-3220

Hook-Spring

$

$

Not available

25

Toro 50-3250

Bracket-Throttle Control

$

$

Not available

26

Toro 50-3240

Spring-Limit

$

$

Not available

27

Toro 50-0250

SCREW

$

$

Not available

28

Toro 81-1300

BOLT

$9.99

$

Usually ships in 3-6 days

0

29

Toro 50-3530

Plate-Guard

$

$

Not available

30

Toro 50-3500

Sensor

$

$

Not available

31

Toro 50-3520

GASKET

$

$

Not available

32

Toro 50-1330

Cylinder Assembly

$

$

Not available

33

Toro 50-1300

GASKET

$

$

Not available

34

Toro 50-1270

Cylinder Head

$

$

Not available

35

Toro 81-0540

BOLT

$

$

Not available

35

Toro 50-0180

Bolt

$

$

Not available

Toro 50-1490

Gasket Set
(Superseded to 55-2830)

Note: Not illustrated

$

$

Not available
