620000x30NC - Murray 20" Snow Thrower (2004) Chute Control Rod Assembly Parts Diagram

20" Snow Thrower

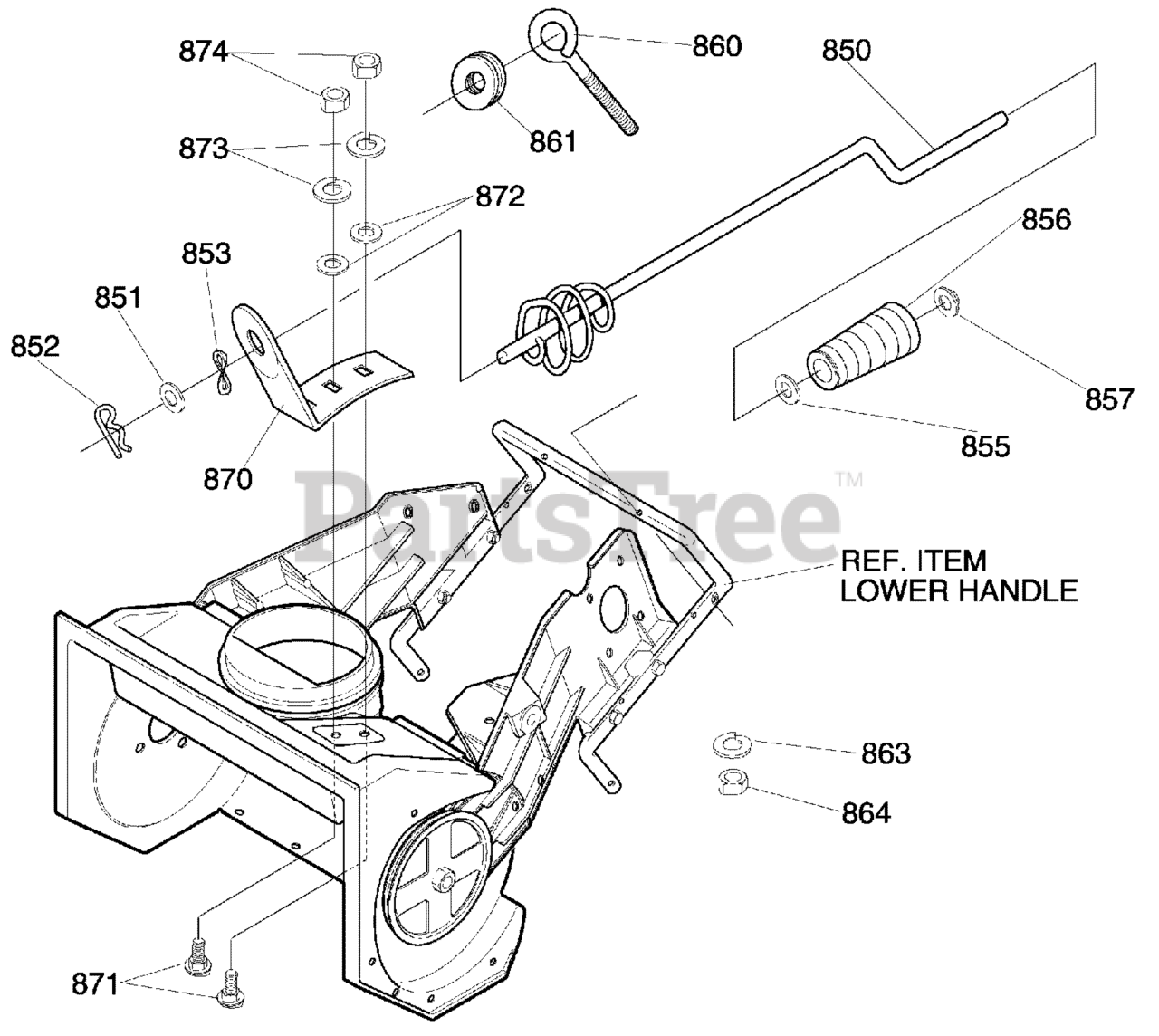

Chute Control Rod Assembly Parts Diagram

  • Title
850

Murray 314996

ROD, ASSY UPPER CHUTE

$

$

Not available

851

Murray 71072

FLATWASHER

$

$

Not available

852

Murray 71082

COTTER PIN

$

$

Not available

853

Murray 313431

WASHER, CURVED SPRING
(Superseded to 313431MA)

$4.99

$

In Stock, only 1 left!

0

855

Murray 71072

FLATWASHER

$

$

Not available

856

Murray 57082

KNOB, SLEEVE
(Superseded to 57082MA)

$7.99

$

Usually ships in 2-12 days

0

857

Murray 331532

NUT, PUSH

$4.99

$

Usually ships in 2-12 days

0

860

Murray 313712

EYE BOLT 3/8-16x2.00

$

$

Not available

861

Murray 148

GROMMET, EYE BOLT
(Superseded to 148MA)

$

$

Not available

863

Murray 71062

WASHER, SPLITLOCK

$

$

Not available

864

Murray 71045

NUT, 3/8-16

$

$

Not available

870

Murray 333946E701

BRACKET, CHUTE ROTATE
(Superseded to 333946E701MA)

$33.99

$

Usually ships in 2-12 days

0

871

Murray 340720

BOLT, 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

872

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

873

Murray 71060

WASHER, SPTLOCK
(Superseded to 1501670MA)

$

$

Not available

874

Murray 71037

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
