620000x30NA - Murray 20" Snow Thrower (2002) Chute Control Rod Assembly Parts Diagram

20" Snow Thrower

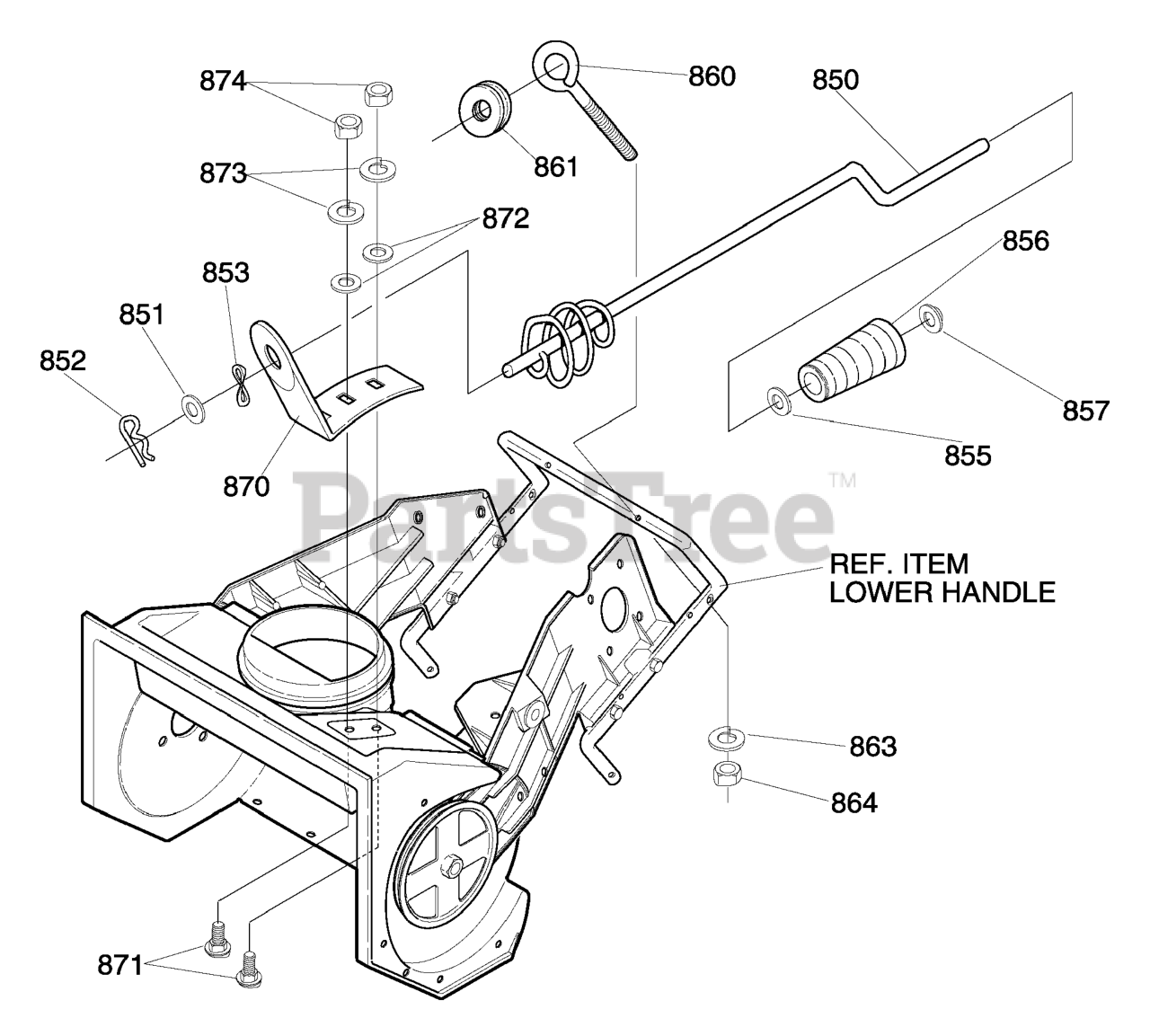

Chute Control Rod Assembly Parts Diagram

  • Title
850

Murray 314996

ROD, ASSY UPPER CHUTE

$

$

Not available

851

Murray 71072

FLATWASHER

$

$

Not available

852

Murray 71082

COTTER PIN

$

$

Not available

853

Murray 313431MA

WASHER, CURVED SPRING

$4.99

$

In Stock, only 1 left!

0

855

Murray 71072

FLATWASHER

$

$

Not available

856

Murray 57082MA

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

857

Murray 331532MA

NUT, PUSH

$4.99

$

Usually ships in 2-12 days

0

860

Murray 313712

EYE BOLT 3/8-16x2.00

$

$

Not available

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

863

Murray 71062

WASHER, SPLITLOCK

$

$

Not available

864

Murray 71045

NUT, 3/8-16

$

$

Not available

870

Murray 333946E701MA

BRACKET, CHUTE ROTATE

$33.99

$

Usually ships in 2-12 days

0

871

Murray 340720MA

BOLT, 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

872

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

873

Murray 071060

WASHER, SPTLOCK

$3.49

$

In Stock, Qty 20+

0

874

Murray 71037

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
