620000x30NA - Murray 20" Snow Thrower (2002) Auger Housing Assembly Parts Diagram

20" Snow Thrower

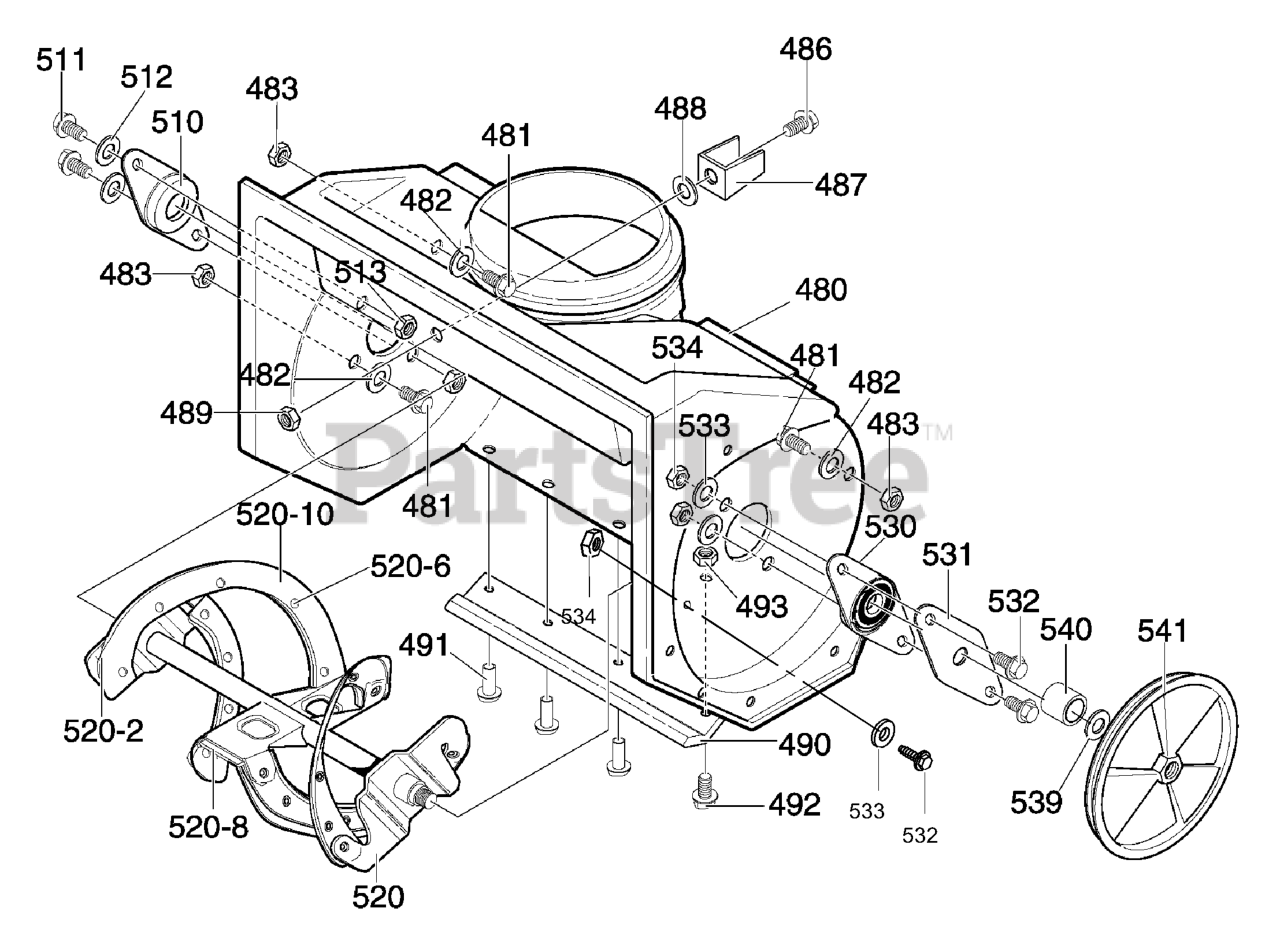

Auger Housing Assembly Parts Diagram

  • Title

480

Murray 330312MA

HOUSING ASSEMBLY

$

$

Not available

481

Murray 302628MA

SCREW, 1/4-20x.75

$4.49

$

In Stock, Qty 7

0

482

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

483

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

486

Murray 579052

SCREW, 1/4-20 x.63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

487

Murray 331126MA

BRACKET, STOP

$6.99

$

Usually ships in 2-12 days

0

488

Murray 331211MA

FLATWASHER

$3.99

$

Usually ships in 2-12 days

0

489

Murray 15X143MA

NUT,1/4-20

$4.99

$

In Stock, Qty 13

0

490

Murray 55323MA

SCRAPER BAR

$35.99

$

In Stock, only 1 left!

0

491

Murray 577707

RIVET
(Superseded to 577707MA)

$3.99

$

Usually ships in 2-12 days

0

492

Murray 302628MA

SCREW, 1/4-20x .75

$4.49

$

In Stock, Qty 7

0

493

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

510

Murray 577023MA

FLANGE BEARING

$5.99

$

In Stock, only 3 left!

0

511

Murray 710263

SCREW, 1/4-20x1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

512

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

513

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

520

Murray 302783MA

AUGER ASSEMBLY

$204.99

$

Usually ships in 2-12 days

0

520-2

Murray 302565MA

AUGER BLADE

$28.99

$

In Stock, only 2 left!

0

520-6

Murray 49838

RIVET
(Superseded to 49838MA)

$4.49

$

In Stock, Qty 20+

0

520-8

Murray 335992MA

CENTER BLADE

$8.99

$

In Stock, Qty 8

0

520-10

Murray 302552E701

AUGER & BLADE SUPPORT

$204.99

$

Usually ships in 2-12 days

0

530

Murray 583459MA

BEARING & PLATE ASSY.

$27.99

$

Usually ships in 2-12 days

0

531

Murray 334287MA

BEARING RETAINER

$7.49

$

In Stock, only 1 left!

0

532

Murray 579052

SCREW, 1/4-20x5/8
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

533

Murray 071067MA

FLATWASHER,.281x.63x.065

$82.99

$

In Stock, only 1 left!

0

534

Murray 73826

NUT, 1/4-20 Reghexctrlk

$4.99

$

In Stock, Qty 20+

0

539

Murray 40677

FLATWASHER

$

$

Not available

540

Murray 578101MA

SPACER, SLEEVE

$4.99

$

Usually ships in 2-12 days

0

541

Murray 583363MA

PULLEY, POLY V -AUGER

$

$

Not available
