620 - BCS America Two-Wheeled Tractor Steering Column (SN: 158833 & Above) Parts Diagram

Two-Wheeled Tractor

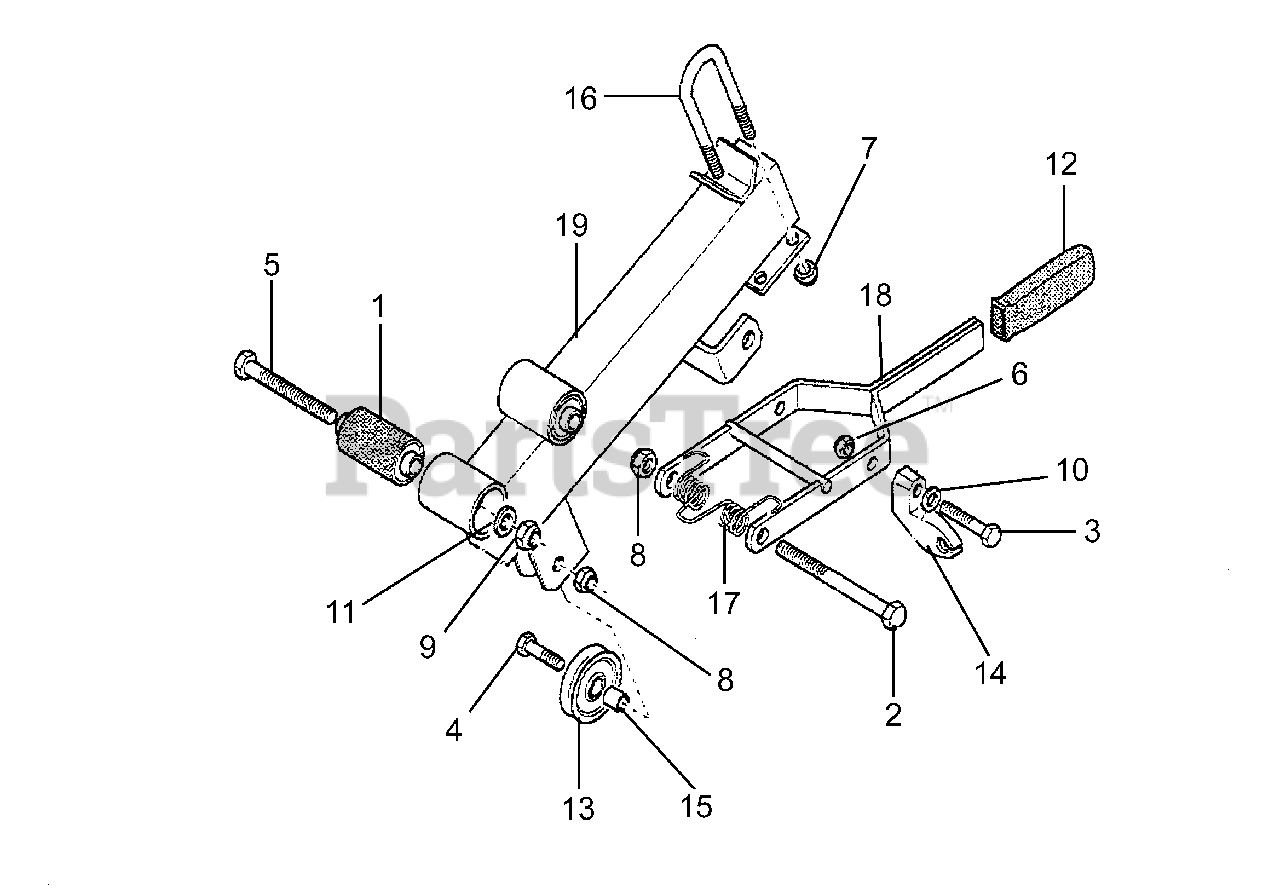

Steering Column (SN: 158833 & Above) Parts Diagram

  • Title

1

BCS America 300.10120

SILENTBLOCK 12X40X58X66-47602

$35.99

$

In Stock, only 1 left!

0

2

BCS America 311.11229

HEX SCREW M10X110 UNI 5737 8G

$2.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12153

HEX SCREW M8X35 UNI 5739-8G

$1.49

$

In Stock, only 2 left!

0

4

BCS America 311.12211

HEX. SCREW M10X30 UNI 5739-8G

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 311.12295

HEX SCREW M12X95 UNI 5739 8G

$2.49

$

Usually ships in 5-8 days

0

6

BCS America 312.11080

NUT M8 UNI 5588-5S

$0.99

$

In Stock, only 3 left!

0

7

BCS America 312.41080

LOCKNUT M 8

$0.99

$

In Stock, Qty 11

0

8

BCS America 312.41100

LOCKNUT M 10

$1.49

$

In Stock, only 2 left!

0

9

BCS America 312.41121

SELF-LOCKING NUT M12 LOW

$1.49

$

Usually ships in 5-8 days

0

10

BCS America 314.23084

SPRING WASHER B 8.4 DIN 137

$0.99

$

In Stock, Qty 10

0

11

BCS America 314.23130

SPRING WASHER B 13 DIN 137

$1.49

$

In Stock, only 3 left!

0

12

BCS America 551.02714

FLAT KNOB

$14.99

$

Usually ships in 5-8 days

0

13

BCS America 552.20363

BRAKE PULLEY

$8.49

$

Usually ships in 5-8 days

0

14

BCS America 552.43340

CUT CONTROL ROD MOUNT

$

$

Not available

15

BCS America 561.20364

BRAKE PULLEY BUSHING

$7.99

$

Usually ships in 5-8 days

0

16

BCS America 561.56940

HANDLEBAR U BOLT

$8.49

$

Usually ships in 5-8 days

0

17

BCS America 580.56942

HANDLEBAR RELEASE SPRING

$16.99

$

Usually ships in 5-8 days

0

18

BCS America 590.56935

HANDLEBAR SELECT. LEVER COMPL.

$71.99

$

Usually ships in 5-8 days

0

19

BCS America 590.56980

2-WH.TRACT.STEER.COL.W/SIL.BLO

$

$

Currently unavailable
