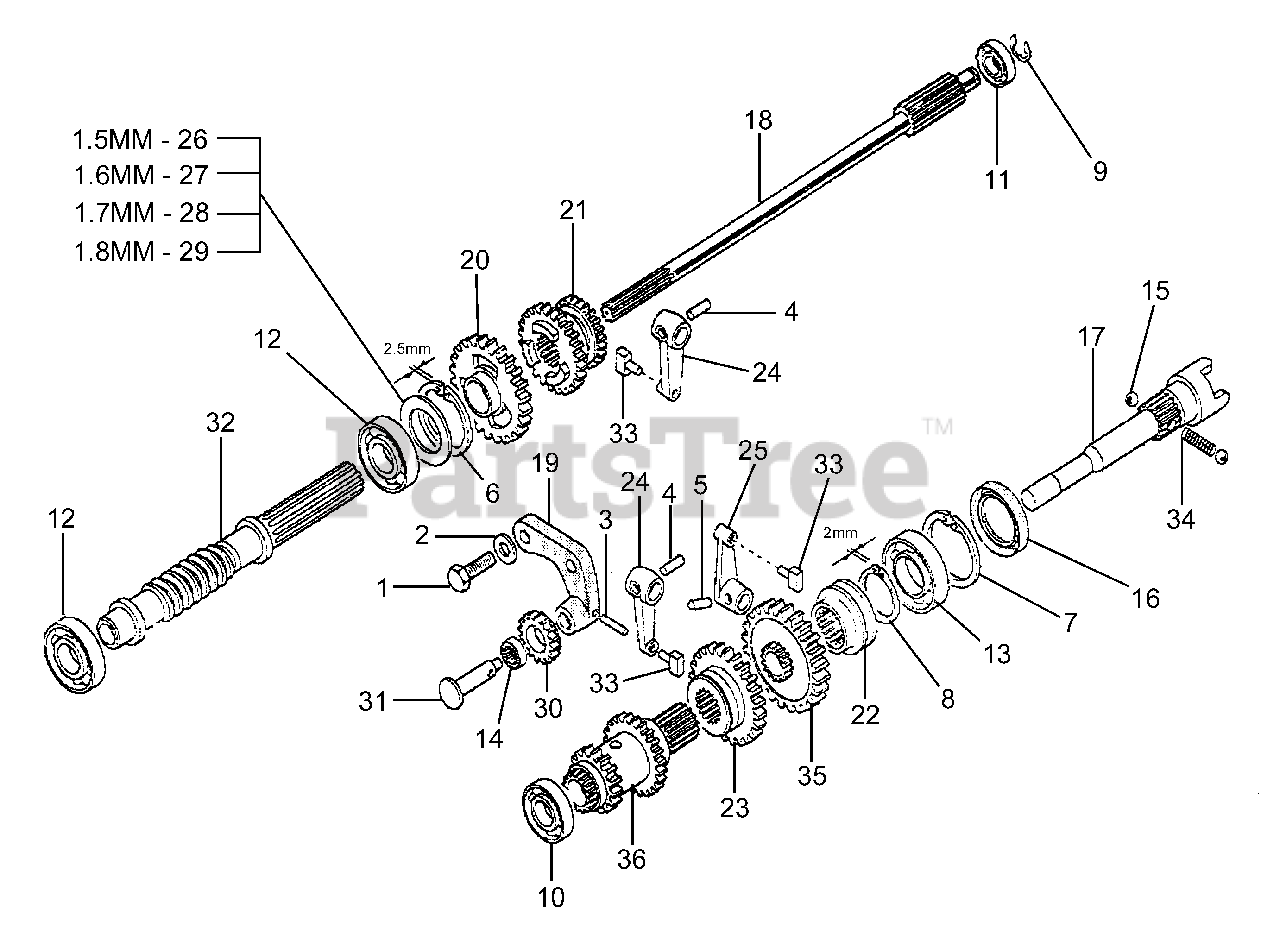

620 - BCS America Two-Wheeled Tractor Gears (SN: 156431 & Above) Parts Diagram

Two-Wheeled Tractor

Gears (SN: 156431 & Above) Parts Diagram

  • Title

1

BCS America 311.12211

HEX. SCREW M10X30 UNI 5739-8G

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 314.21101

TOP WASHER 10

$1.99

$

In Stock, only 3 left!

0

3

BCS America 342.11042

ROLL PIN 4X25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 342.13060

ROLL PIN 6X24 SPIROL

$1.99

$

In Stock, only 2 left!

0

5

BCS America 342.13061

ROLL PIN 6X20 SPIROL U.6876

$1.49

$

In Stock, Qty 6

0

6

BCS America 351.11053

SNAP RING INS.D52 PES.UNI7438

$7.49

$

Usually ships in 5-8 days

0

7

BCS America 351.11055

SNAP RING INS.D 55 DIN 472

$2.49

$

In Stock, only 1 left!

0

8

BCS America 351.21031

SNAP RING OUTS.30 S.HVY U7436

$1.99

$

In Stock, only 4 left!

0

9

BCS America 352.11120

SNAP RING

$1.49

$

In Stock, Qty 8

0

10

BCS America 371.11151

BEARING 6202 15X35X11 SKF

$10.99

$

In Stock, only 1 left!

0

11

BCS America 371.11152

BEARING 63-02-15X42X13

$17.99

$

Usually ships in 5-8 days

0

12

BCS America 371.11255

BEARING SKF 25X52X15 6205

$15.99

$

In Stock, only 1 left!

0

13

BCS America 371.12229

BEARING 6006 30X55X13 SKF

$19.99

$

Usually ships in 5-8 days

0

14

BCS America 373.20120

BEARING K12X15X10 H

$24.99

$

Usually ships in 5-8 days

0

15

BCS America 379.10832

BALL 1/4 RIV RB 6.35

$0.99

$

In Stock, Qty 10

0

16

BCS America 382.13800

OIL SEAL 38X55X7

$11.99

$

Usually ships in 5-8 days

0

17

BCS America 524.56336

PTO SHAFT

$188.99

$

Usually ships in 5-8 days

0

18

BCS America 524.56340

INPUT SHAFT

$277.99

$

Usually ships in 5-8 days

0

19

BCS America 524.56344

REVERSER GEAR MOUNT

$

$

Currently unavailable

20

BCS America 524.56354

GEAR/IDLER 1ST GEAR

$143.99

$

Usually ships in 5-8 days

0

21

BCS America 524.56360

SPEED SLIDING GEAR 4+3

$162.99

$

Usually ships in 5-8 days

0

22

BCS America 524.56362

PTO SLIDER

$94.99

$

Usually ships in 5-8 days

0

23

BCS America 524.56370

REVERSER SLIDER

$156.99

$

Usually ships in 5-8 days

0

24

BCS America 524.56389

GEAR SLIDER LEVER

$49.99

$

Usually ships in 5-8 days

0

25

BCS America 524.56390

PTO SLIDER LEVER

$61.99

$

Usually ships in 5-8 days

0

26

BCS America 563.56328

SPACER RING THICKNESS=1.5

$12.99

$

In Stock, only 1 left!

0

27

BCS America 563.56329

SPACER RING THICKNESS=1.6

$12.99

$

Usually ships in 5-8 days

0

28

BCS America 563.56330

SPACER RING THICKNESS=1.7

$11.99

$

Usually ships in 5-8 days

0

29

BCS America 563.56331

SPACER RING THICKNESS=1.8

$12.99

$

Usually ships in 5-8 days

0

30

BCS America 564.56347

REVERSER GEAR

$124.99

$

Usually ships in 5-8 days

0

31

BCS America 564.56351

GEAR PIN

$

$

Not available

32

BCS America 564.56478

WORM SCREW 2 START

$245.99

$

Usually ships in 5-8 days

0

33

BCS America 580.43086

SHOE

$10.99

$

Usually ships in 5-8 days

0

34

BCS America 580.56391

PTO SLIDING SPRING

$1.99

$

In Stock, Qty 5

0

35

BCS America 590.56365

PTO GEAR COMPL.

$

$

Currently unavailable

36

BCS America 590.56383

TRIPLE GEAR

$318.99

$

Usually ships in 5-8 days

0
