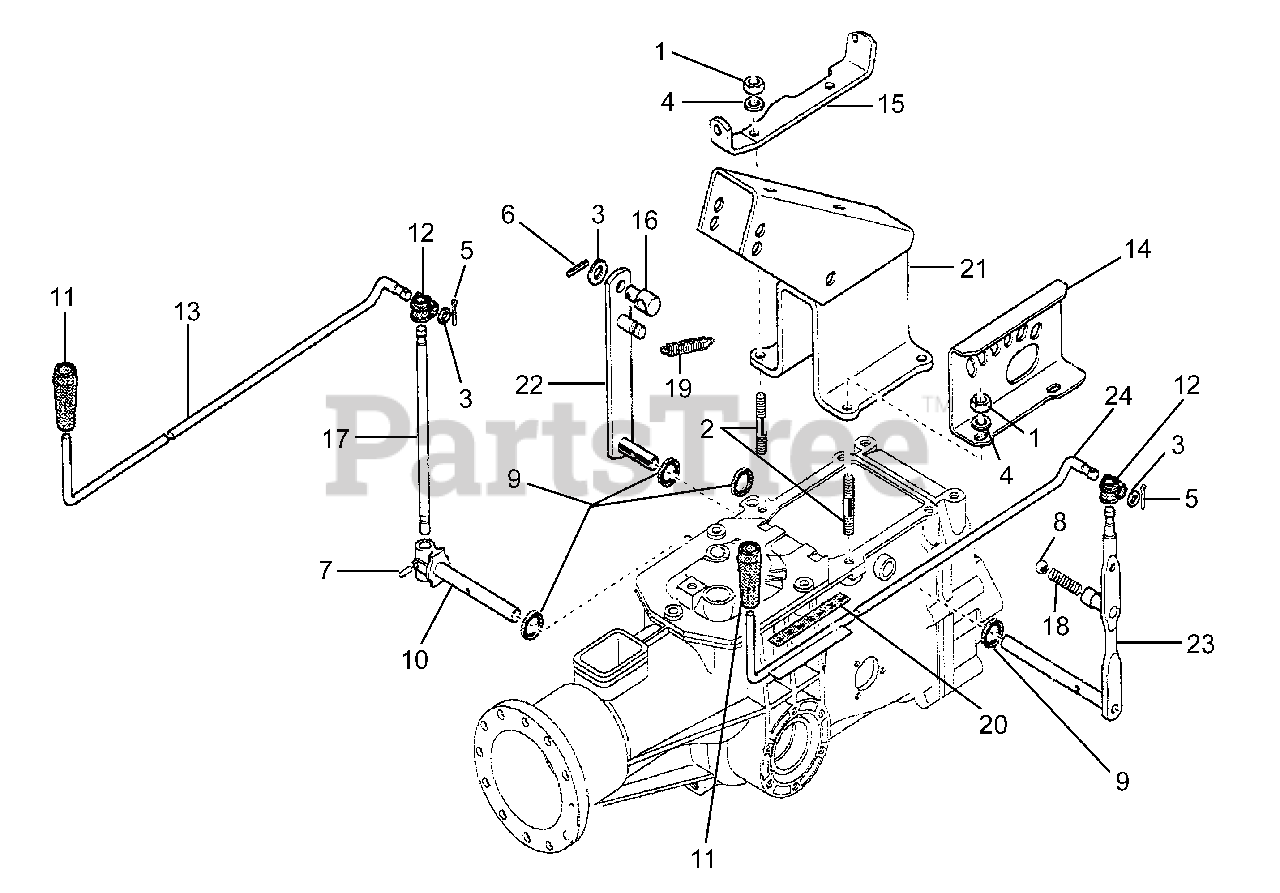

620 - BCS America Two-Wheeled Tractor Controls (SN: 158833 & Above) Parts Diagram

Two-Wheeled Tractor

Controls (SN: 158833 & Above) Parts Diagram

  • Title

1

BCS America 312.41085

LOCKING NUT M8 DEFORM.6S

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 313.12082

STUD M8X38X14X20

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 314.11104

FLAT WASHER10.5X18 UNI6592AC.

$0.99

$

In Stock, Qty 5

0

4

BCS America 314.21083

SUPER WASHER 8 DIN6796 GALV.

$1.49

$

In Stock, Qty 7

0

5

BCS America 341.10028

COTTER PIN 3X15 UNI 1336 ACC.

$0.99

$

In Stock, only 2 left!

0

6

BCS America 342.11029

SPRING SPIGOT 3X16DIN1481 ACC

$0.99

$

Usually ships in 5-8 days

0

7

BCS America 342.13020

SPLIT PIN 4X20 SPIROL

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 379.11532

BALL 15/32 RIV RB 11.906

$1.49

$

In Stock, only 2 left!

0

9

BCS America 382.11400

OIL SEAL 14X22X4

$7.99

$

Usually ships in 5-8 days

0

10

BCS America 523.57250

PTO PINION

$132.99

$

Usually ships in 5-8 days

0

11

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

12

BCS America 552.42528

SWIVEL D 10

$11.99

$

In Stock, only 2 left!

0

13

BCS America 561.49655

CONTROL ROD

$44.99

$

Usually ships in 5-8 days

0

14

BCS America 561.57235

GEAR SELECTOR MF

$31.99

$

Usually ships in 5-8 days

0

15

BCS America 561.57244

REVERSE ROD LEVER EXTENSION

$24.99

$

Usually ships in 5-8 days

0

16

BCS America 561.57246

SHEATH STOP

$9.99

$

Usually ships in 5-8 days

0

17

BCS America 561.57256

PTO LEVER FOR MF

$33.99

$

Usually ships in 5-8 days

0

18

BCS America 580.43176

SPRING

$2.49

$

In Stock, only 1 left!

0

19

BCS America 580.57247

CAP SPRING

$7.99

$

Usually ships in 5-8 days

0

20

BCS America 580.57714

DECAL/SHIFTER

$6.49

$

Usually ships in 5-8 days

0

21

BCS America 590.56975

2-WH.TRACT.STEERING COL.SUPP.

$243.99

$

Usually ships in 5-8 days

0

22

BCS America 590.57240

INVERTER LEVER COMPL.

$43.99

$

Usually ships in 5-8 days

0

23

BCS America 590.57252

GEAR LEVER COMPL. FOR MF

$138.99

$

Usually ships in 5-8 days

0

24

BCS America 590.57270

GEAR STICK MF

$55.99

$

Usually ships in 5-8 days

0
