620 (2020303) - AGCO Lawn Tractor, 19.5hp SPEED CONTROL Parts Diagram

Lawn Tractor, 19.5hp

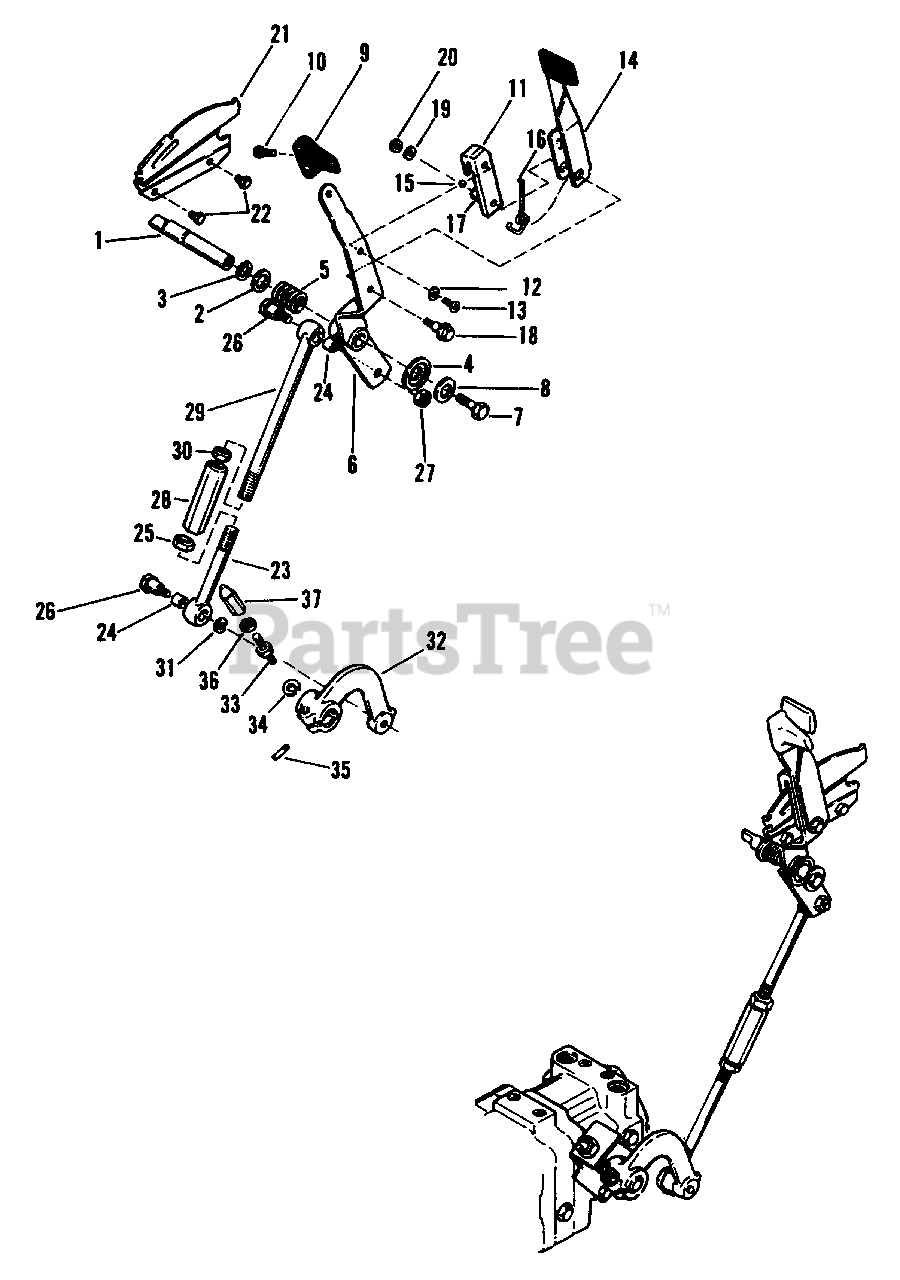

SPEED CONTROL Parts Diagram

  • Title

1

Simplicity 172167

Pivot Shaft

$

$

Not available

2

Simplicity 2156085

Washer

$

$

Not available

3

Simplicity 2173515

Retaining Ring

$

$

Not available

4

Simplicity 173293

Washer

$

$

Not available

5

Simplicity 173307

Spring

$

$

Not available

6

Simplicity 172393

Lever Assembly

$

$

Not available

7

Simplicity 2715150

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

8

Simplicity 2157424SM

Washer

$7.49

$

In Stock, Qty 5

0

9

Simplicity 2171165

Knob

$

$

Not available

10

Simplicity 2715085

Thread Forming Screw, 1/4"-20 x 3/4" lg.

$

$

Not available

11

Simplicity 171432

Stop Clamp

$

$

Not available

12

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

13

Simplicity 2711002

Phillips Screw 1/4"-20 x 1/2" lg.

$

$

Not available

14

Simplicity 172399

Handle

$

$

Not available

15

Simplicity 2166178SM

Ball

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 2166047SM

Spring

$

$

Not available

17

Simplicity 166063

Spacer

$

$

Not available

18

Simplicity 2166051SM

Shoulder Bolt

$

$

Not available

19

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

20

Simplicity 2717513

Hex Nut, Lock, 1/4"-20

$

$

Not available

21

Simplicity 172400

Quadrant

$

$

Not available

22

Simplicity 2715067

Taptite Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

23

Simplicity 172406

Eye Bolt

$

$

Not available

24

Simplicity 2172949

Bushing

$

$

Not available

25

Simplicity 2717016

Hex Nut, Jam, 1/2"-20

$

$

Not available

26

Simplicity 2108412

Shoulder Bolt

$

$

Not available

27

Simplicity 2717510

Hex Nut Full Lock, 3/8"-16

$

$

Not available

28

Simplicity 172402

Turnbuckle

$

$

Not available

29

Simplicity 172407

Eye Bolt

$

$

Not available

30

Simplicity 717032

Hex Jam Nut, L.H. 1/2"-20

$

$

Not available

31

Simplicity 2721503

Washer

$

$

Not available

32

Simplicity 176629

Lever

$

$

Not available

33

Simplicity 106771

Stud

$

$

Not available

34

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

35

Simplicity 173302

Pin

$

$

Not available

36

Simplicity 718066

Nut, 3/8"-16

$

$

Not available

37

Simplicity 176308

Detent

$

$

Not available
