62-10BP01 (A-100) - Toro 36" Lawn Tractor (1976) 8.000 SHEET METAL AND COVERS Parts Diagram

36" Lawn Tractor

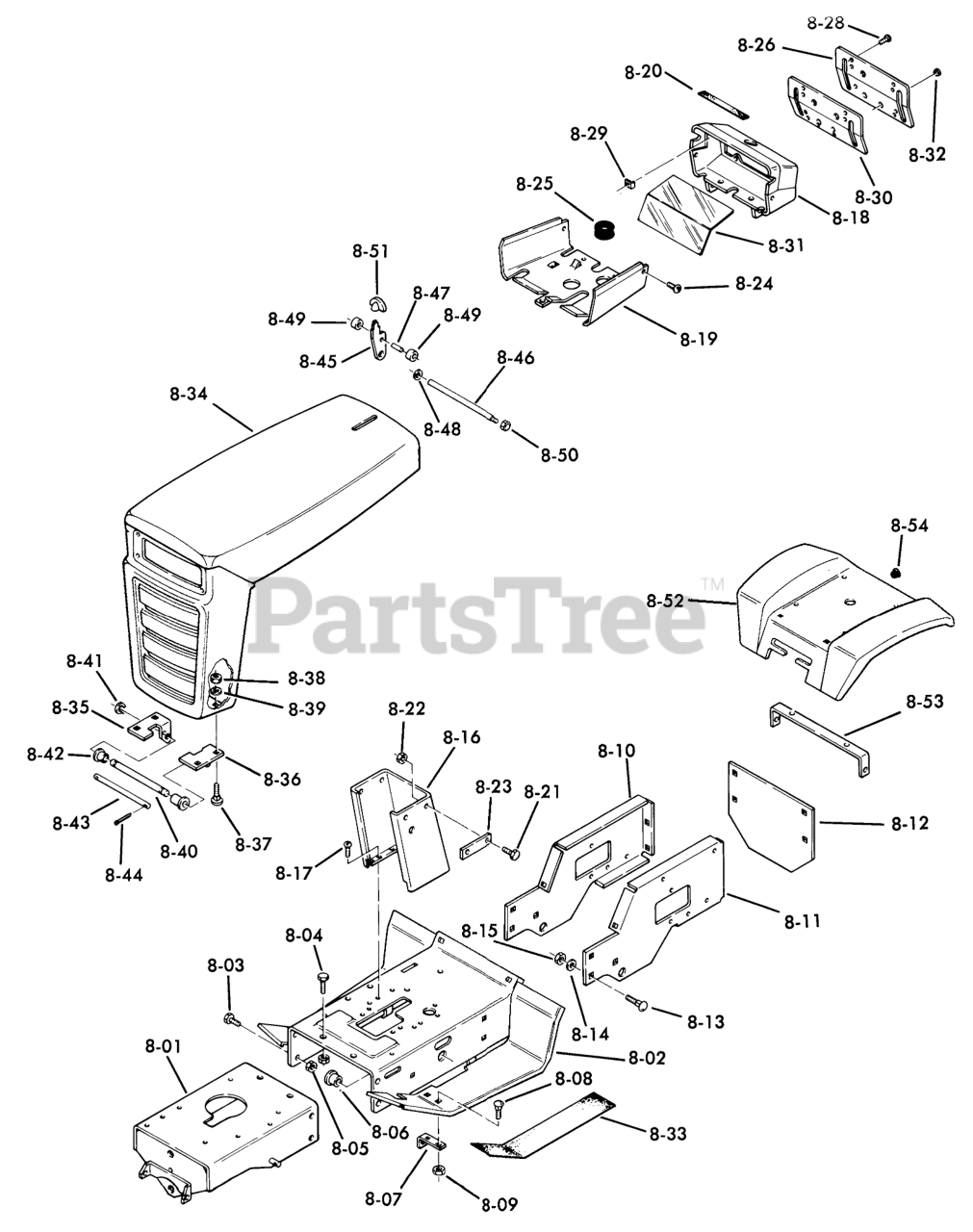

8.000 SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 105285

Assy-Frame Front

$

$

Not available

2

Toro 105445

Assy-Frame Center (W/Bushing)

$

$

Currently unavailable

3

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

4

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

5

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

6

Toro MW2412

Bushing

$

$

Not available

7

Toro 104196

Bracket

$

$

Not available

8

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

9

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10

Toro 103404

Panel-Side-R.H.

$

$

Not available

11

Toro 103405

L.H. Side Panel

$

$

Not available

12

Toro 103386

Panel-Rear

$

$

Not available

13

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

14

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 15

0

15

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

16

Toro 103566

Thrust Washer

$

$

Not available

17

Toro 926694

SCREW

$

$

Not available

18

Toro 5450

Housing

$

$

Not available

19

Toro 104108

Support-Tank

$

$

Not available

20

Toro 5606

Tape
(Superseded to 106556)

$

$

Not available

21

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

22

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

23

Toro 9775

Spacer

$

$

Not available

24

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

25

Toro 101971

Grommet

$

$

Not available

26

Toro 104023

Dash Panel

$

$

Not available

28

Toro 102168

SCREW BLACK

$

$

Not available

29

Toro 5442

SPEED NUT

$

$

Not available

30

Toro 101841

BACK UP PLATE

$

$

Not available

31

Toro 101446

CONTROL PROTECTOR

$

$

Not available

32

Toro 104868

PLUG BUTTON

$

$

Not available

33

Toro 105273

PAD-FOOTREST

$

$

Not available

34

Toro 9698

Hood

$

$

Not available

34

Toro 105497

Assy-Hood & Grill

$

$

Not available

35

Toro 9766

Bracket-Grill Pivot RH
(Superseded to 108385)

$

$

Not available

36

Toro 9767

Bracket-Grill Pivot LH
(Superseded to 108384)

$

$

Not available

37

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

38

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

40

Toro 101452

Rod-Pivot
(Superseded to 101710)

$

$

Not available

41

Toro 100398

E Ring-3/8
(Superseded to 105797)

$0.99

$

In Stock, Qty 20+

0

42

Toro 5457

NYLINER BUSHING

$23.99

$

Usually ships in 3-6 days

0

43

Toro 9707

ROD PIVOT STOP

$

$

Not available

44

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

45

Toro 5467

LEVER HOOD LATCH

$174.99

$

Usually ships in 3-6 days

0

46

Toro 5522

Rod Latch
(Superseded to 88-2090)

$

$

Not available

47

Toro 933182

SPIROL PIN

$

$

Not available

48

Toro 5466

SPEED NUT

$

$

Not available

49

Toro 5468

Roller

$

$

Not available

50

Toro 915932

USE 915932P NUT

$8.49

$

Usually ships in 3-6 days

0

51

Toro 5469

KNOB

$4.49

$

Usually ships in 3-6 days

0

52

Toro 105438

Assy-Fender & Plate
(Superseded to 108474)

$

$

Not available

52

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

53

Toro 105485

Fender Support

$

$

Not available

54

Toro 938030

Bushing

$

$

Not available
