62-10BP01 (A-100) - Toro 36" Lawn Tractor (1976) 21.000 MOWING UNIT Parts Diagram

36" Lawn Tractor

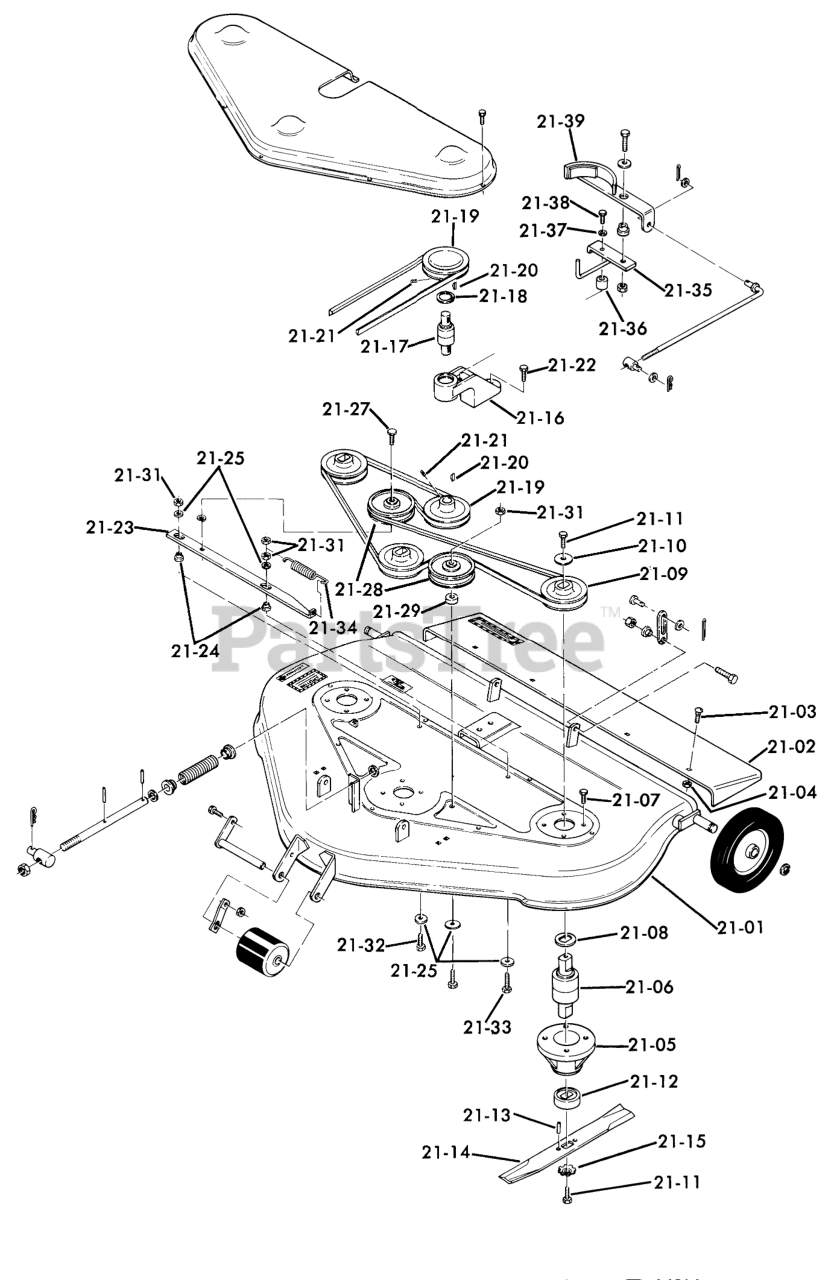

21.000 MOWING UNIT Parts Diagram

  • Title
21-01

Toro 105863

Rear Discharge Mower Deck

$

$

Not available

21-01

Toro 105864

Side Discharge Mower Deck

$

$

Not available

21-02

Toro 103585

Extension-Chute
(Superseded to 106480-01)

$102.99

$

Usually ships in 3-6 days

0

21-03

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

21-04

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

21-05

Toro 105074

HOUSING-BEARING B
(Superseded to 105074-03)

$

$

Not available

21-06

Toro 103119

BEARING

$

$

Not available

21-07

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

21-08

Toro 105075

WASHER-DOUBLE D

$

$

Not available

21-09

Toro 105781

PULLEY-MOWER DRIVE

$67.99

$

In Stock, only 2 left!

0

21-10

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

21-11

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

21-12

Toro 104373

Cup-Spindle
(Superseded to 102780)

$140.99

$

In Stock, only 1 left!

0

21-13

Toro 933210

SPIROL ROLL PIN

$3.49

$

Usually ships in 3-6 days

0

21-14

Toro 101335

BLADE KIT

$164.99

$

Usually ships in 3-6 days

0

21-15

Toro 1336

WASHER

$

$

Not available

21-16

Toro 104176

HOUSING DRIVE BRG R
(Superseded to 104176-01)

$

$

Not available

21-17

Toro 103711

BEARING INTEG SHAFT

$

$

Not available

21-18

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

21-19

Toro 105465

Pulley
(Superseded to 10-9310)

$21.99

$

Usually ships in 3-6 days

0

21-20

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

21-21

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

21-22

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

21-23

Toro 105860

BAR-IDLER SUPPORT

$

$

Not available

21-24

Toro 101765

SPACER

$

$

Not available

21-25

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

21-27

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

21-28

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 3 left!

0

21-29

Toro 5715

Spacer
(Superseded to 920011)

$0.99

$

In Stock, Qty 20+

0

21-31

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

21-32

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

21-33

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

21-34

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 3 left!

0

21-35

Toro 105479

Pivot Bracket

$

$

Not available

21-36

Toro 979369

Spacer

$

$

Not available

21-37

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

21-38

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

21-39

Toro 105469

Support and Brake Lining

$

$

Not available
