62-10BP01 (A-100) - Toro 36" Lawn Tractor (1976) 14.000 DRIVE BELT AND PULLEYS Parts Diagram

36" Lawn Tractor

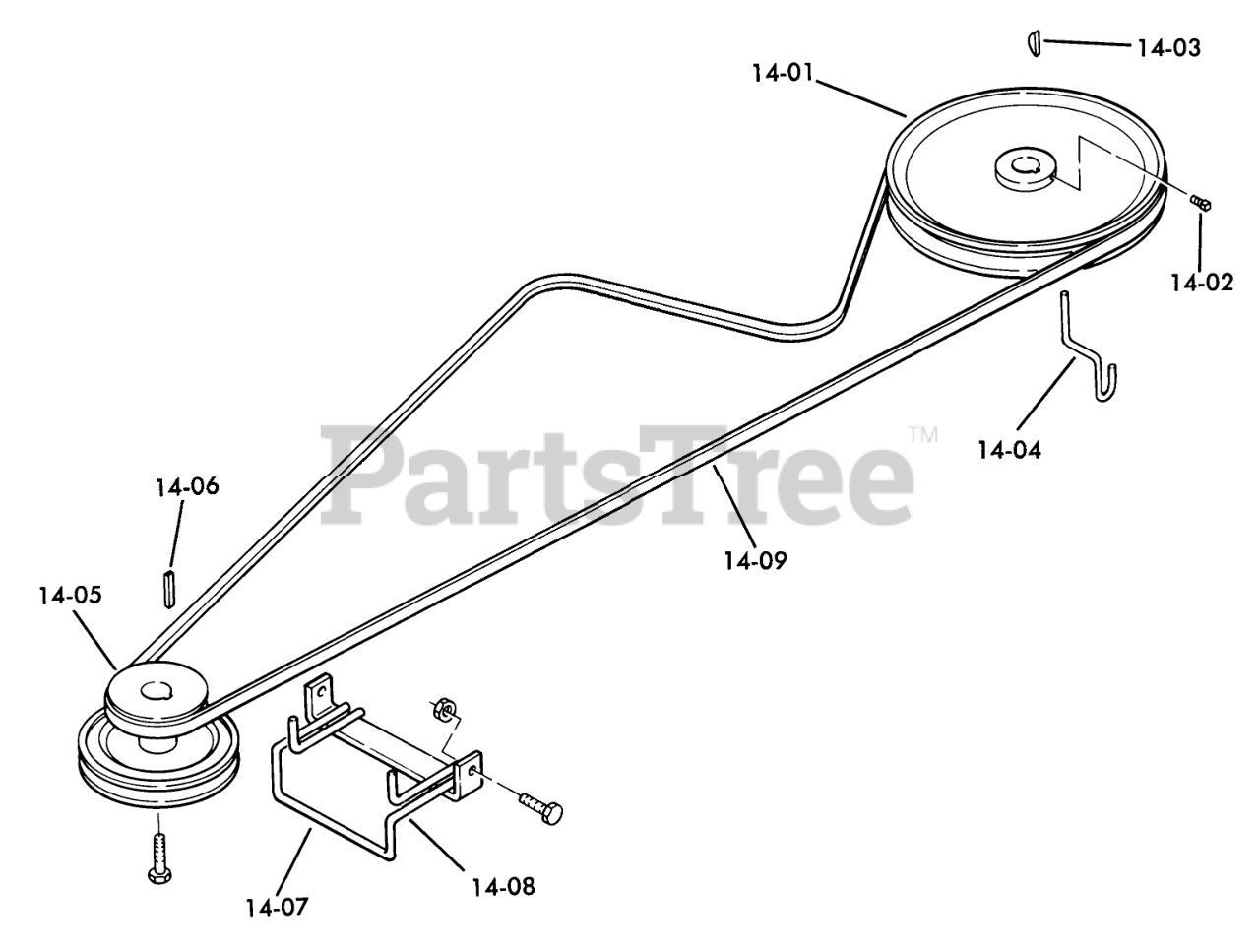

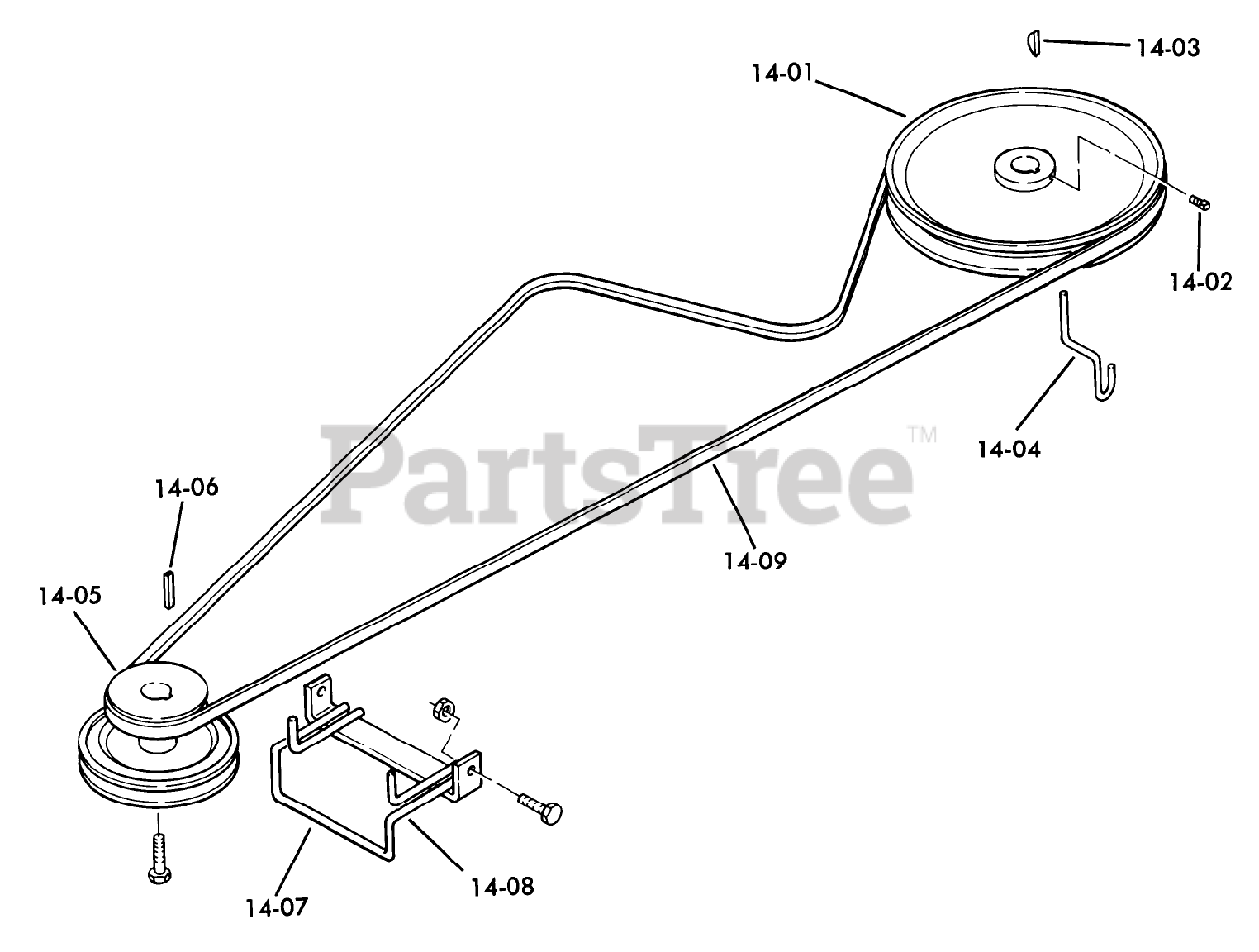

14.000 DRIVE BELT AND PULLEYS Parts Diagram

  • Title
14-01

Toro 103339

Pulley-Transmission

$

$

Not available

14-02

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

14-03

Toro 937086

KEY WOODRUFF

$

$

Not available

14-04

Toro 6441

Belt Retainer

$

$

Not available

14-05

Toro 105070

PULLEY-ENGINE

$

$

Not available

14-06

Toro 1349

Key

$

$

Not available

14-07

Toro 908195

HEX HD CAP SCREW

$

$

Not available

14-08

Toro 105289

Belt Bracket

$

$

Not available

14-09

Toro 103522

V-BELT, TRANSMISSION DR.

$56.99

$

In Stock, only 1 left!

0
