62-10BP01 (A-100) - Toro 36" Lawn Tractor (1976) 11.000 ELECTRICAL SYSTEM Parts Diagram

36" Lawn Tractor

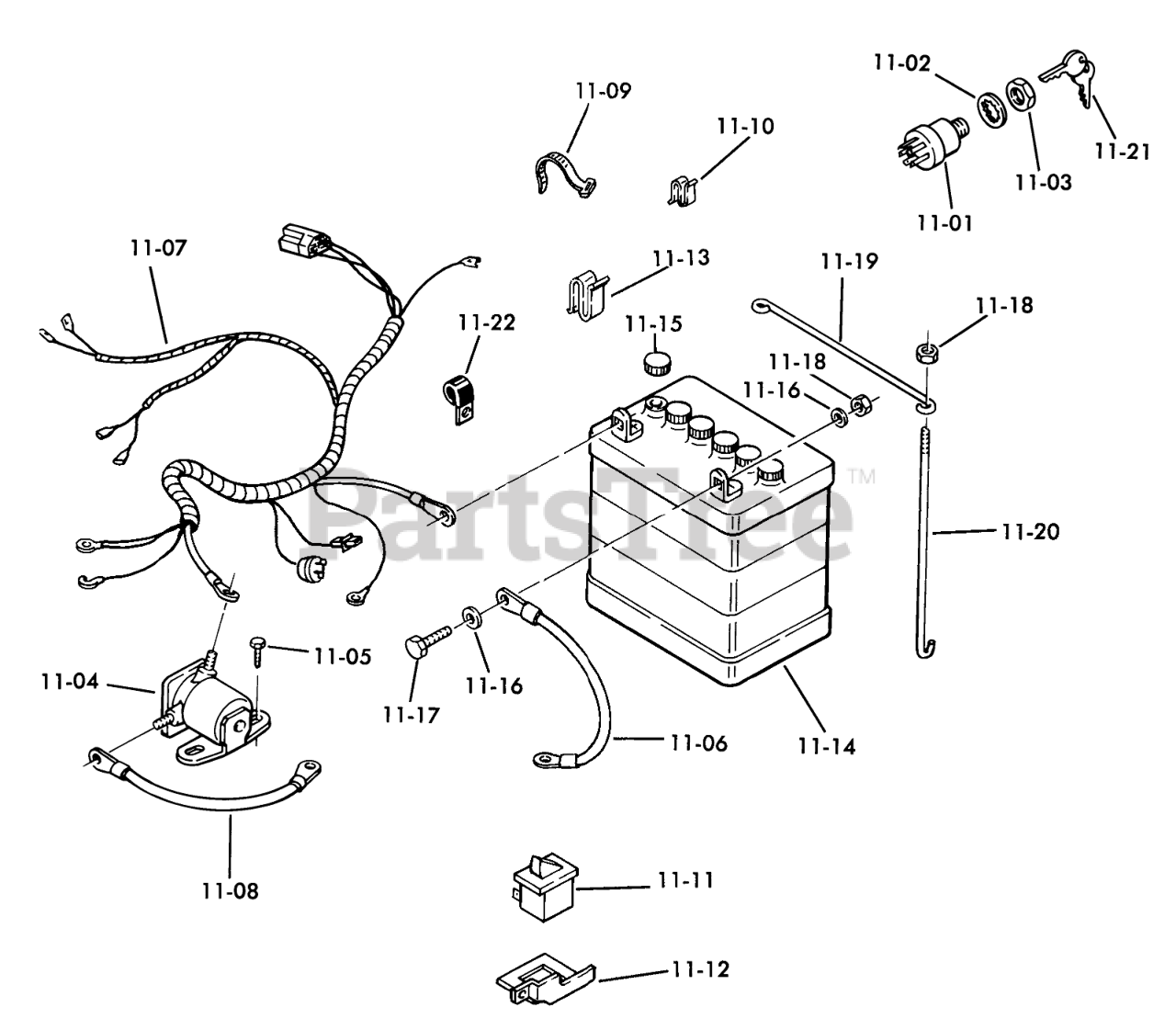

11.000 ELECTRICAL SYSTEM Parts Diagram

  • Title

11-01

Toro 103991

ASSY-SWITCH IGNITION

$47.99

$

In Stock, only 1 left!

0

11-02

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

11-03

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

11-04

Toro 8658

Solenoid
(Superseded to 108544)

$116.99

$

Usually ships in 3-6 days

0

11-05

Toro 104055

S.T. Screw 1/4-20 x 3/4

$

$

Currently unavailable

11-06

Toro 3666

Ground Wire

$

$

Currently unavailable

11-07

Toro 105439

Wire Harness

$

$

Not available

11-08

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

11-09

Toro 100571

PLASTIC TIE

$

$

Not available

11-10

Toro 3023

SPEED CLIP

$

$

Not available

11-11

Toro 103480

SWITCH INTERLOCK

$

$

Not available

11-12

Toro 104117

Bracket-Switch

$

$

Currently unavailable

11-13

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

11-14

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

11-15

Toro 100438

Cap

$

$

Not available

11-16

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11-17

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

11-18

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

11-19

Toro 105504

ROD-HOLD DOWN

$19.99

$

In Stock, only 4 left!

0

11-20

Toro 8107

Hook
(Superseded to 109547)

$10.99

$

In Stock, only 2 left!

0

11-21

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

11-22

Toro 105490

CLAMP

$

$

Not available
