62-08BP01 (A-90) - Toro 36" Lawn Tractor (1976) 9.000 ENGINE AND TRANSMISSION Parts Diagram

36" Lawn Tractor

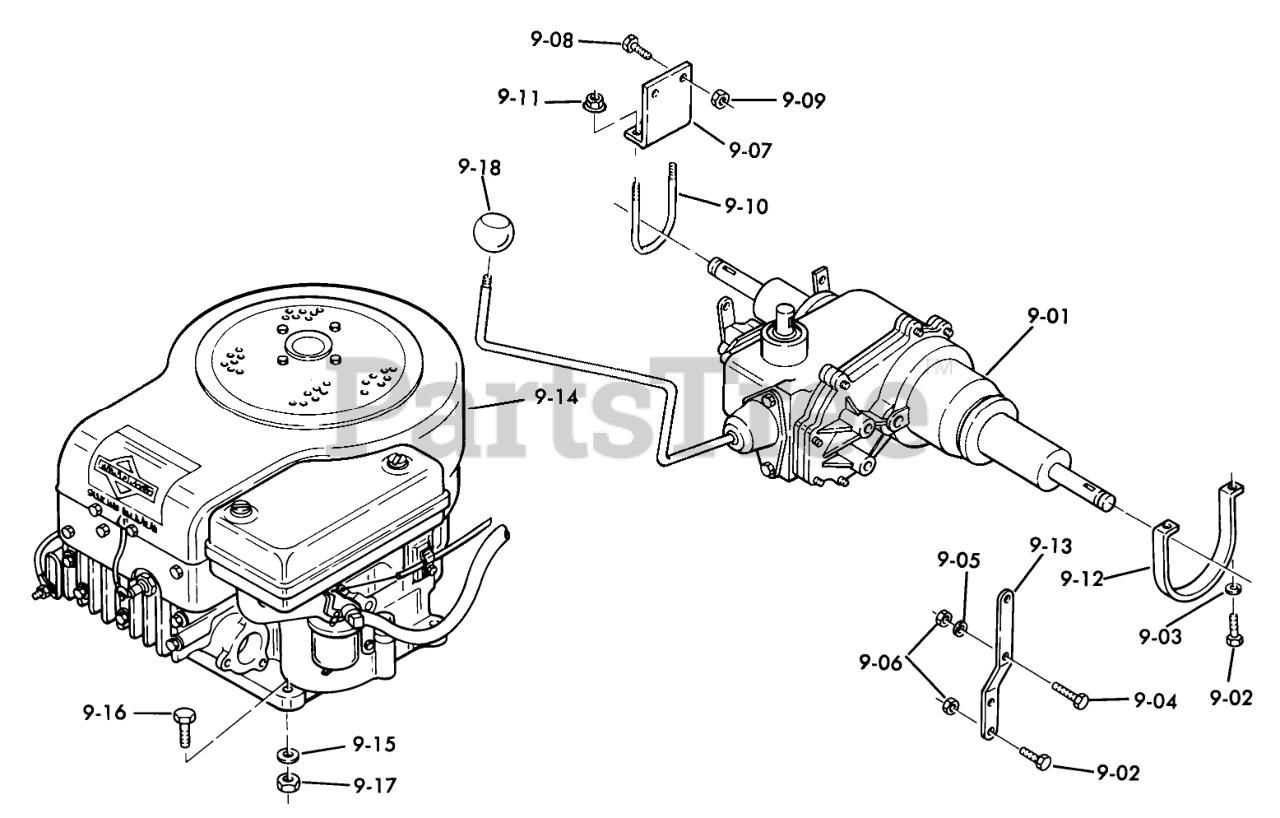

9.000 ENGINE AND TRANSMISSION Parts Diagram

  • Title

9-01

Toro 103690

Ass-y. Transmission

$

$

Not available

9-02

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

9-03

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

9-04

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

9-05

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

9-06

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9-07

Toro 103580

Bracket-Trans. Mtg.

$

$

Not available

9-08

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

9-09

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

9-10

Toro 103428

"U" Bolt Axle Mount

$

$

Not available

9-11

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

9-12

Toro 103579

Girth-Transmission

$

$

Not available

9-13

Toro 103383

Bar-Trans Support

$

$

Not available

9-13

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

9-13

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

9-13

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

9-13

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9-14

Toro 105440

Engine-8 HP Briggs

$

$

Currently unavailable

9-14

Toro 105441

Engine-10 HP Briggs

$

$

Currently unavailable

9-15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

9-16

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

9-17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9-18

Toro 102871

SHIFT KNOB

$

$

Not available
