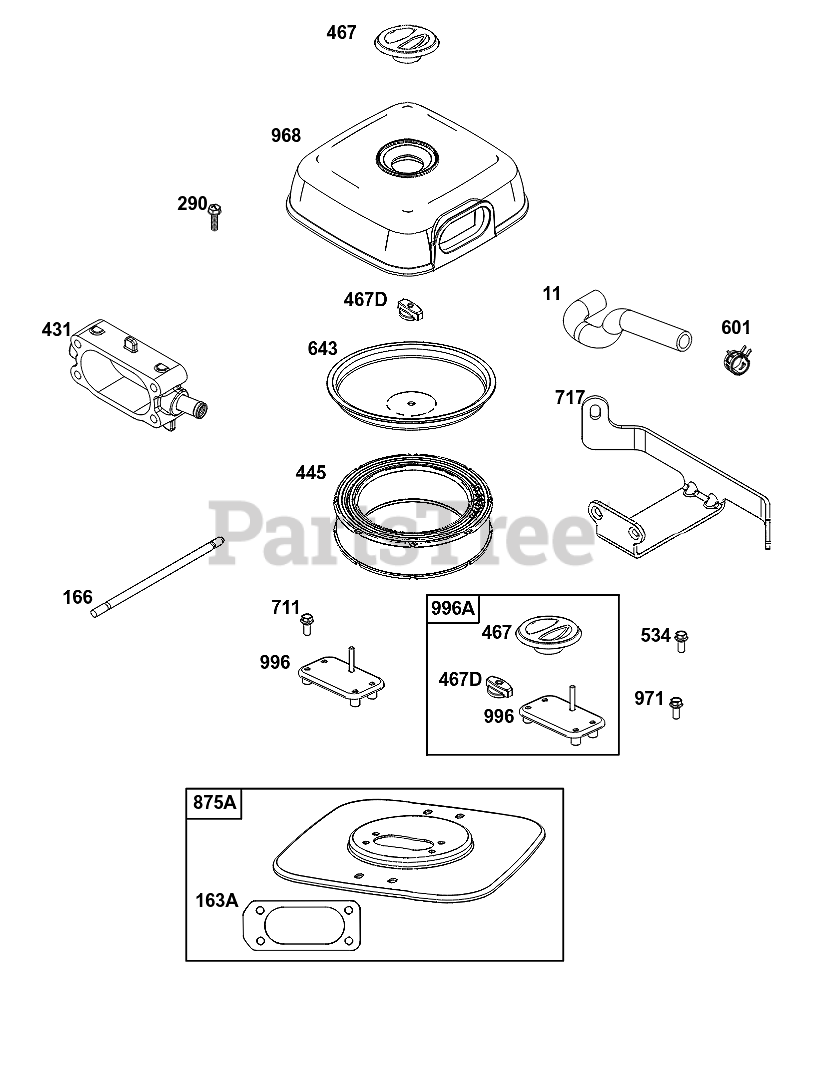

61H475-0001-J1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 846502

TUBE, Breather

$26.99

$

Usually ships in 2-12 days

0

163A

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

166

Briggs & Stratton 84006494

STUD

Note: (Air Cleaner)

$11.99

$

Usually ships in 2-12 days

0

290

Briggs & Stratton 807421

SCREW

Note: (Intake Elbow)

$3.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 84006493

ELBOW, INTAKE

$80.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 841856

FILTER, A/C Cartridge

$27.99

$

In Stock, only 4 left!

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

$16.99

$

Usually ships in 2-12 days

0

467D

Briggs & Stratton 846432

KNOB, Air Cleaner Cover

$8.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner)

$3.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 844405

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Cleaner

$22.99

$

In Stock, Qty 7

0

711

Briggs & Stratton 84006495

SCREW

Note: (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 84006451

BRACKET, AIR CLEANER

$22.99

$

Usually ships in 2-12 days

0

875A

Briggs & Stratton 843118

BASE, Air Cleaner

$72.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 843447

COVER, Air Cleaner
(Superseded to 846323)

$64.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner Base To Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 20+

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0

996A

Briggs & Stratton 846013

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0
