61H275-0001-E1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

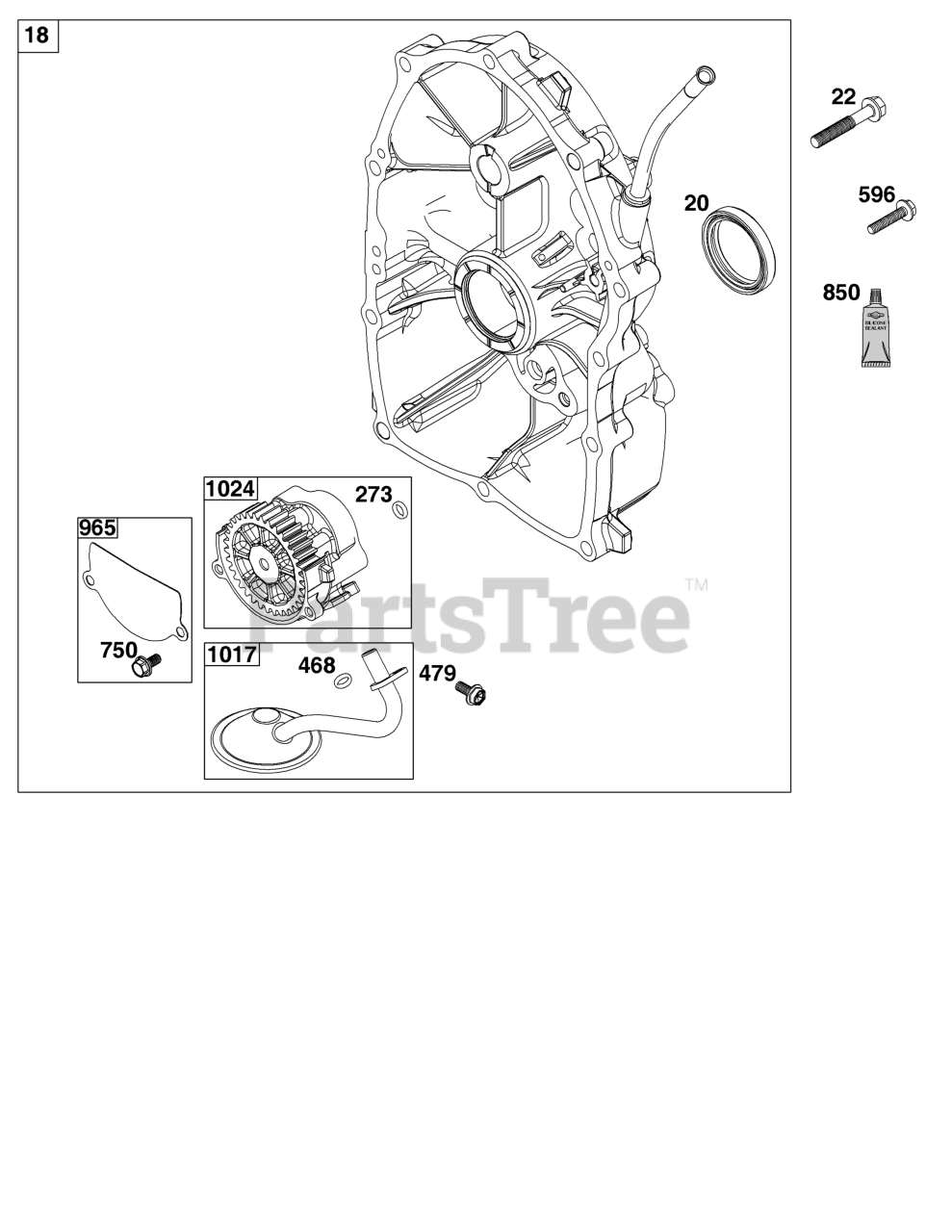

Crankcase Cover/Sump Group Parts Diagram

  • Title

18

Briggs & Stratton 848360

COVER, CRANKCASE

$385.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side)

$17.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

468

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

479

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

596

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

750

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

965

COVER, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available
