61G877-0004-J1 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Vertical Engine

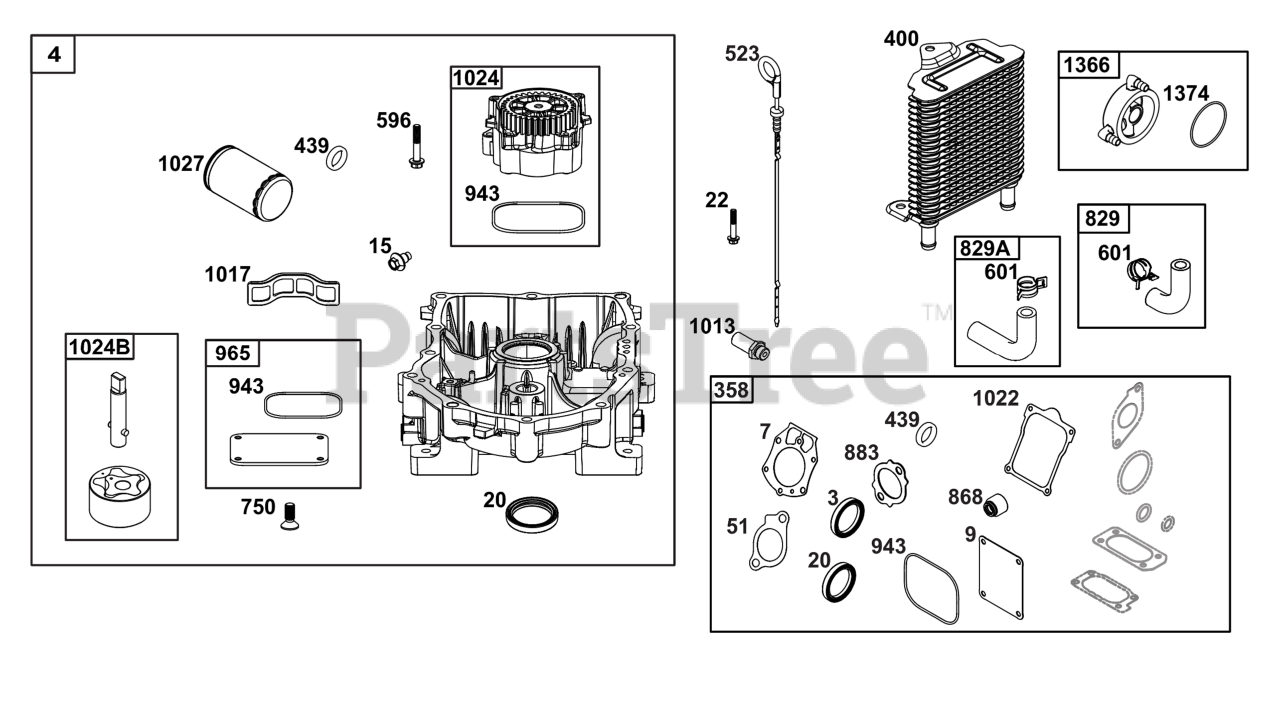

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 84007551

SUMP, Engine

$

$

Currently unavailable

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

9

GASKET, Breather

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

15

Briggs & Stratton 807392

PLUG, Oil Drain

$6.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side)

$17.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 690676

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 1 left!

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

400

Briggs & Stratton 846249

COOLER, Oil

$83.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

523

Briggs & Stratton 842542

DIPSTICK

$29.99

$

In Stock, only 4 left!

0

596

Briggs & Stratton 807385

SCREW

Note: (Oil Pump)

$3.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 845209

CLAMP, Hose

$4.49

$

Usually ships in 2-12 days

0

750

Briggs & Stratton 842537

SCREW

Note: (Oil Pump Cover)

$10.99

$

Usually ships in 2-12 days

0

829

Briggs & Stratton 846259

HOSE, Oil Cooler

$46.99

$

Usually ships in 2-12 days

0

829A

Briggs & Stratton 846260

HOSE, Oil Cooler

$39.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

943

Briggs & Stratton 842538

SEAL, O-Ring

Note: (Oil Pump Cover)

$14.99

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 842536

COVER, Oil Pump

$17.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 841602

NIPPLE, Oil Filter

$55.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 842535

SCREEN, Oil Pump

$16.99

$

Usually ships in 2-12 days

0

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

Briggs & Stratton 846026

PUMP, Oil

$119.99

$

Usually ships in 2-12 days

0

1024B

Briggs & Stratton 847355

PUMP, Oil

$46.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842291

JET, Main

$26.99

$

Usually ships in 2-12 days

0

1366

Briggs & Stratton 841510

DIVERTER, Oil Cooler

$87.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 796863

SEAL, O-Ring

Note: (Oil Cooler Diverter)

$5.99

$

In Stock, Qty 20+

0
