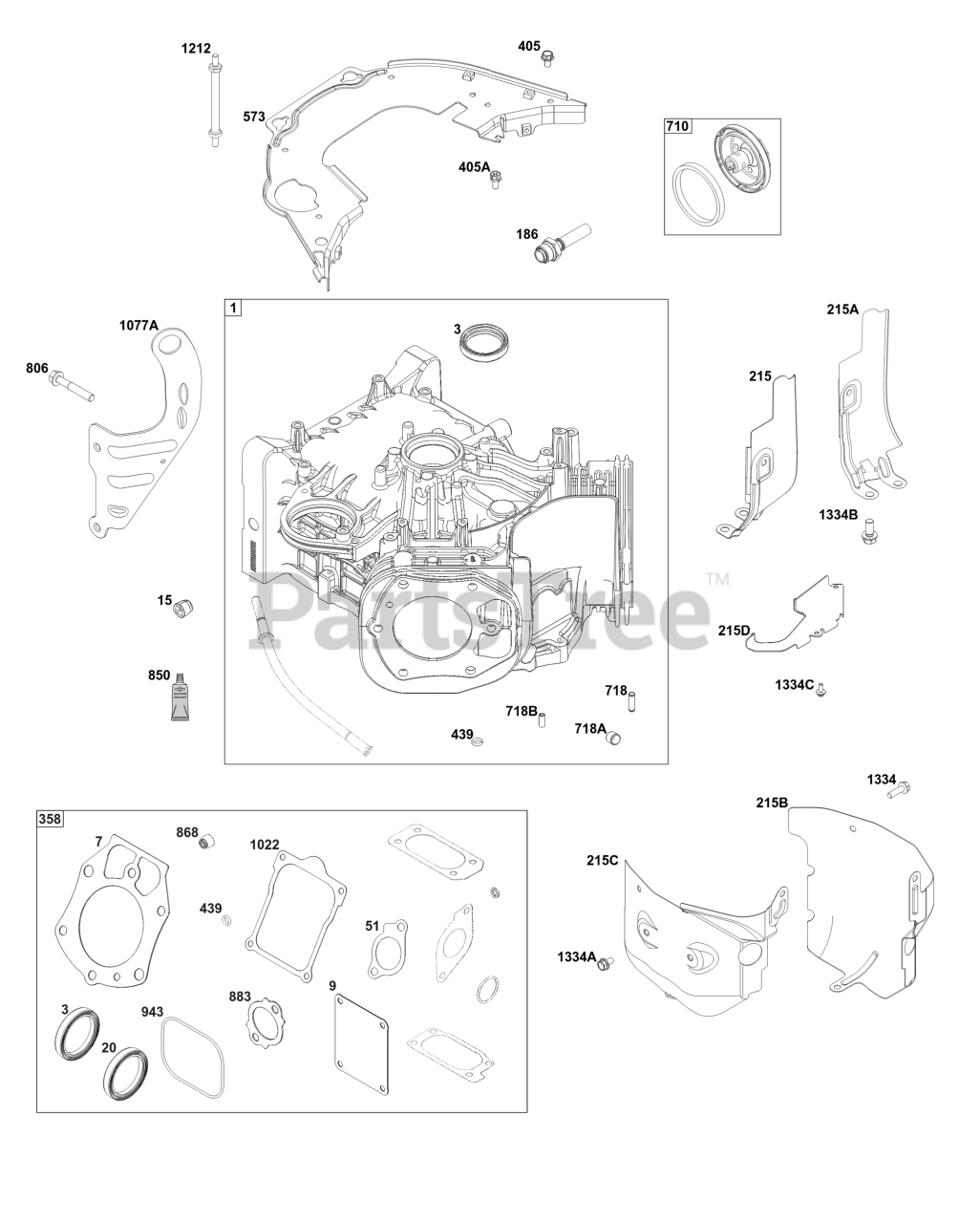

61G877-0003-J1 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 848371

CYLINDER ASSEMBLY

$546.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 841596

SEAL, Oil

Note: (Magneto Side)

$17.99

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

9

GASKET, Breather

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

186A

Briggs & Stratton 84006592

CONNECTOR, Hose

$21.99

$

Usually ships in 2-12 days

0

215

Briggs & Stratton 846455

GUIDE, Air

$37.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 846460

GUIDE, Air

$40.99

$

Usually ships in 2-12 days

0

215B

Briggs & Stratton 809897

GUIDE, Air

$42.99

$

Usually ships in 2-12 days

0

215C

Briggs & Stratton 809738

GUIDE, Air

$42.99

$

Usually ships in 2-12 days

0

215D

Briggs & Stratton 846458

GUIDE, Air

$39.99

$

Usually ships in 2-12 days

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 841735

SCREW

Note: (Back Plate)

$3.99

$

Usually ships in 2-12 days

0

439

O-RING, Oil Gallery

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

573

Briggs & Stratton 846840

PLATE, Back

$139.99

$

Usually ships in 2-12 days

0

710

Briggs & Stratton 847356

COVER, Oil Filter

$26.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 809508

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 845925

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

806

Briggs & Stratton 807362

SCREW

Note: (Lifting Bracket)

$3.49

$

In Stock, Qty 6

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

943

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1077A

Briggs & Stratton 847280

BRACKET, Lifting

$80.99

$

Usually ships in 2-12 days

0

1212

STUD

Note: (Part information located in Blower Housing Group.)

$

$

Not available

1334

Briggs & Stratton 807435

SCREW

Note: (Air Guide)

$3.49

$

Usually ships in 2-12 days

0

1334A

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 20+

0

1334B

Briggs & Stratton 692062

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 20+

0

1334C

Briggs & Stratton 690677

SCREW

Note: (Air Guide)

$3.99

$

In Stock, only 2 left!

0
