61G477-0002-J1 - Briggs & Stratton Horizontal Engine Alternator Group Parts Diagram

Horizontal Engine

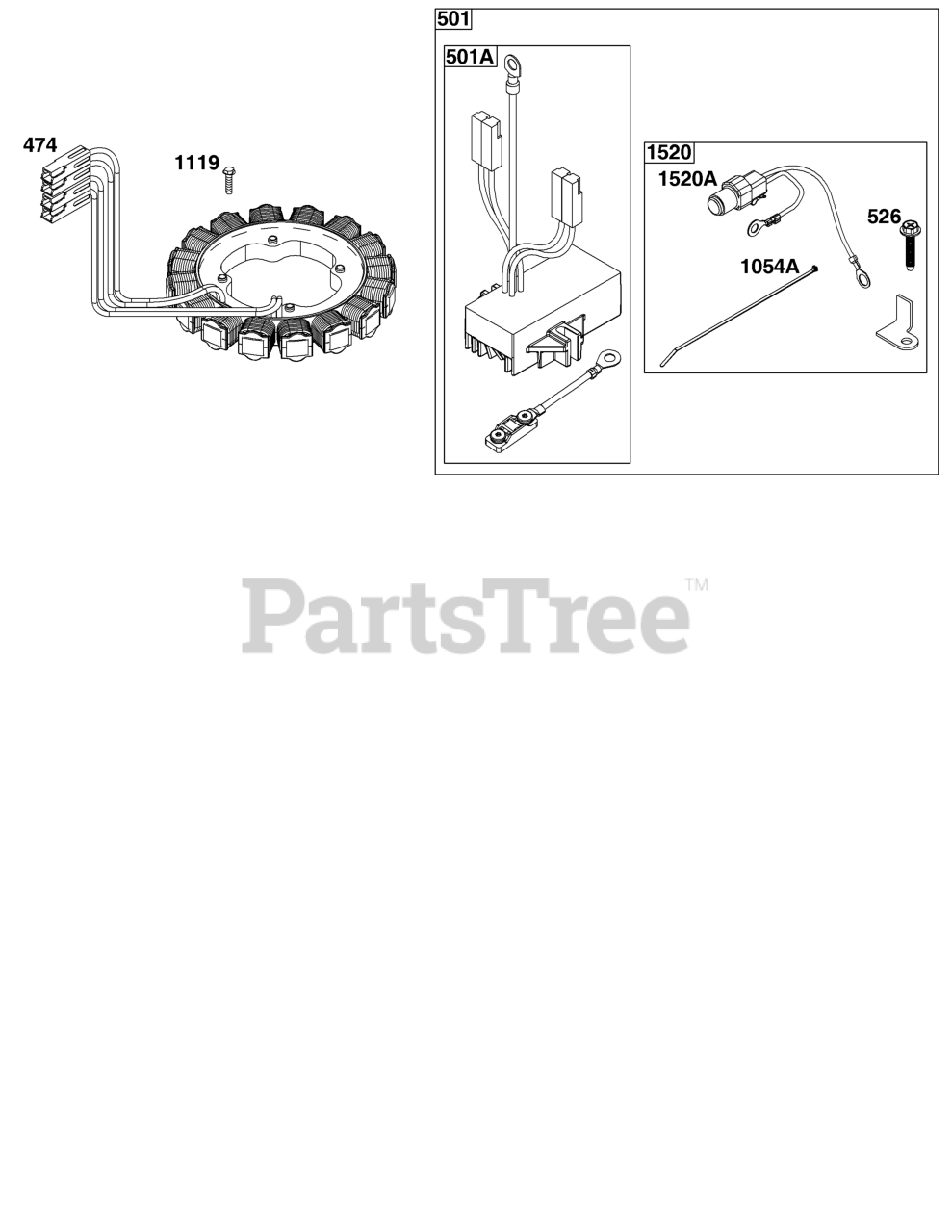

Alternator Group Parts Diagram

  • Title

474

Briggs & Stratton 841178

ALTERNATOR

$232.99

$

In Stock, only 2 left!

0

501

Briggs & Stratton 848221

REGULATOR
(Superseded to 84002239)

Note: Used Before Code Date 18021200

$259.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 848187

REGULATOR

Note: Used After Code Date 18021100

$262.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 847149

SCREW

Note: (Regulator)

$3.99

$

Usually ships in 2-12 days

0

1054A

TIE, Cable

Note: (Part information located in Controls Group.)

$

$

Not available

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator) (M4x30mm)

$3.99

$

Usually ships in 2-12 days

0

1520

CAPACITOR

Note: (Part information located in Controls Group.)

$

$

Not available

1520A

CAPACITOR

Note: (Part information located in Controls Group.)

$

$

Not available
