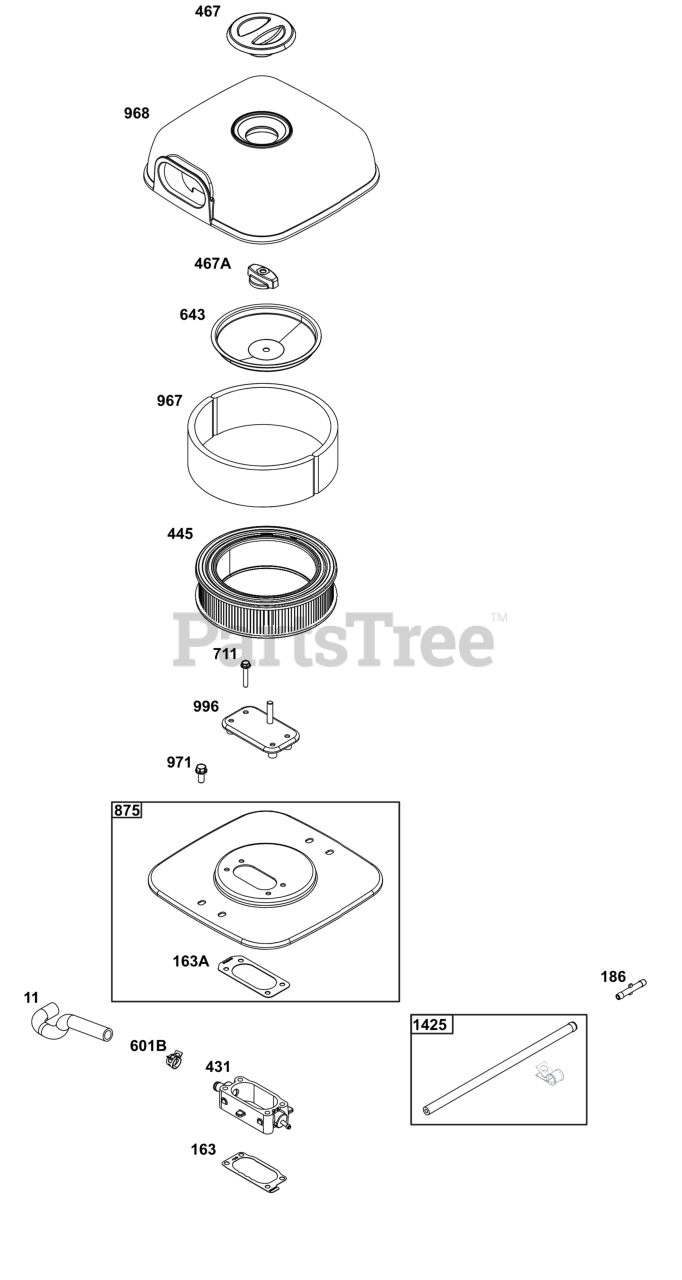

61G377-0106-J1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 846502

TUBE, Breather

$26.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

163A

GASKET, Air Cleaner

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 846507

ELBOW, Intake

$82.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 692519

FILTER, A/C Cartridge

$20.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

$16.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 846007

KNOB, Air Cleaner Cover
(Superseded to 846432)

$8.99

$

Usually ships in 2-12 days

0

601B

Briggs & Stratton 844405

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Filter

$22.99

$

In Stock, Qty 7

0

711

Briggs & Stratton 806444

SCREW

Note: (Carburetor Shield)

$4.49

$

In Stock, only 1 left!

0

875

Briggs & Stratton 843118

BASE, Air Cleaner

$72.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 692520

FILTER, Pre Cleaner

$6.49

$

In Stock, only 1 left!

0

968

Briggs & Stratton 846323

COVER, Air Cleaner

$64.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner Base To Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 20+

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 845717

HOSE, Purge Line

$29.99

$

Usually ships in 2-12 days

0
