61G377-0103-J1 - Briggs & Stratton Horizontal Engine Throttle Body and Fuel Supply Group Parts Diagram

Horizontal Engine

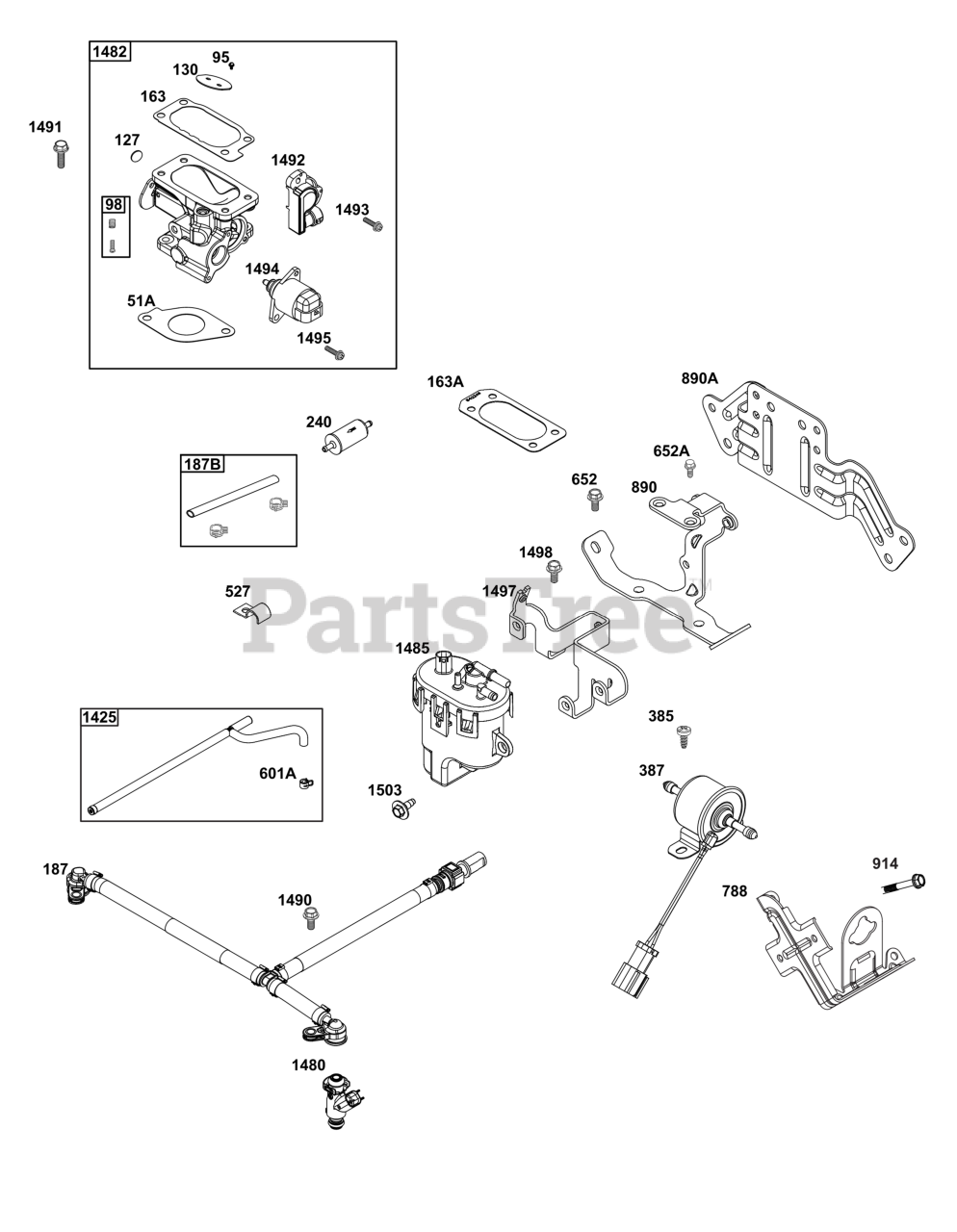

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 846477

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691742

PLUG, Welch

$4.99

$

In Stock, only 2 left!

0

130

Briggs & Stratton 846476

VALVE, Throttle

$4.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$5.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 846475

LINE, Fuel

$172.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 846250

SCREW

Note: (Fuel Pump) (M6x16mm)

$4.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

PUMP, Fuel

$146.99

$

In Stock, only 2 left!

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

601A

CLAMP, Hose

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

652A

Briggs & Stratton 845964

SCREW

Note: (Support Bracket)

$4.49

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 847087

BRACKET, Fuel Pump

$71.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 846506

BRACKET, Support

$101.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 846493

BRACKET, Support

$111.99

$

Usually ships in 2-12 days

0

914

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1425

HOSE, Purge Line

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$79.99

$

In Stock, only 2 left!

0

1482

Briggs & Stratton 846474

BODY, Throttle

$464.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1492

SENSOR, Throttle

Note: (Part information located in Controls Group.)

$

$

Not available

1493

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

1494

Briggs & Stratton 846479

VALVE, Idle Air

$130.99

$

Usually ships in 2-12 days

0

1495

Briggs & Stratton 847169

SCREW

Note: (Idle Air Valve)

$3.99

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$106.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

In Stock, Qty 20+

0
