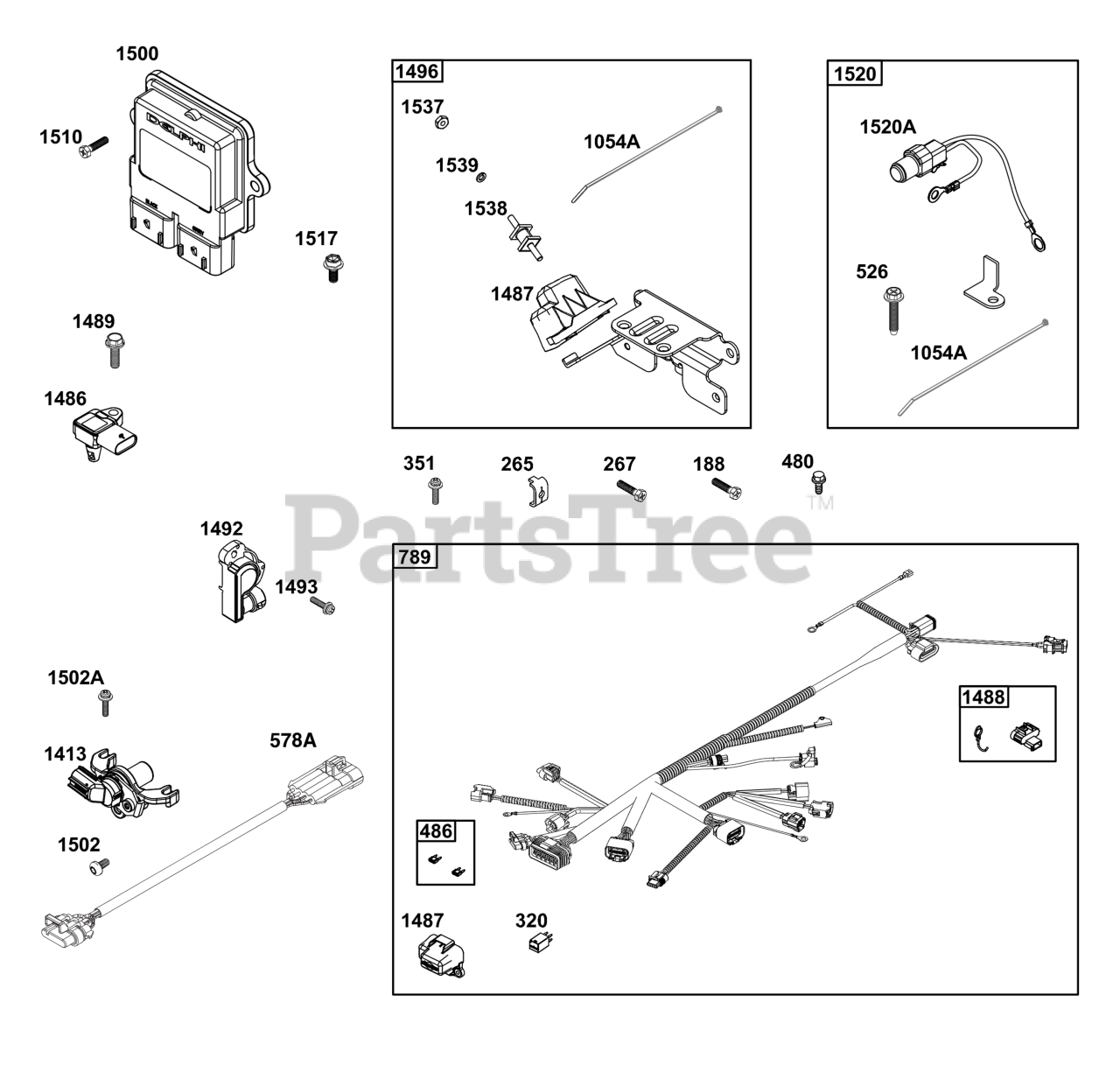

61G377-0103-J1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 841552

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

320

Briggs & Stratton 593902

RELAY(S)

$43.99

$

Usually ships in 2-12 days

0

351

Briggs & Stratton 690677

SCREW

Note: (Ground Terminal) (M4x12mm)

$3.99

$

In Stock, only 2 left!

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

486

Briggs & Stratton 593901

FUSE

$13.99

$

Usually ships in 2-12 days

0

526

SCREW

Note: (Part information located in Alternator Group.)

$

$

Not available

578A

Briggs & Stratton 847017

WIRE ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 847409

HARNESS, Wiring

$345.99

$

Usually ships in 2-12 days

0

1054A

Briggs & Stratton 861206

TIE, Cable

$4.49

$

In Stock, only 1 left!

0

1413

Briggs & Stratton 84006668

SENSOR, Speed

$58.99

$

In Stock, Qty 6

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

Usually ships in 2-12 days

0

1487

Briggs & Stratton 847334

COVER, Fuse

$35.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$12.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 807435

SCREW

Note: (TEMP/MAP Sensor) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1492

Briggs & Stratton 847938

SENSOR, Throttle

$90.99

$

Usually ships in 2-12 days

0

1493

Briggs & Stratton 847169

SCREW

Note: (Throttle Sensor)

$3.99

$

Usually ships in 2-12 days

0

1496

Briggs & Stratton 847337

COVER, Fuse

$120.99

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 846484

MODULE, Electronic Control

Note: (Not Programmed)

$262.99

$

Usually ships in 2-12 days

0

1502

Briggs & Stratton 846459

SCREW

Note: (Speed Sensor) (M5x10mm)

$3.49

$

Usually ships in 2-12 days

0

1502A

Briggs & Stratton 846868

SCREW

Note: (Speed Sensor) (M4x18mm)

$4.49

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 841552

SCREW

Note: (Electronic Control Module) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

1517

Briggs & Stratton 807084

SCREW

Note: (ECU Bracket) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

1520

Briggs & Stratton 847148

CAPACITOR

$54.99

$

Usually ships in 2-12 days

0

1520A

Briggs & Stratton 847147

CAPACITOR

$37.99

$

Usually ships in 2-12 days

0

1537

Briggs & Stratton 703460

NUT

Note: (Fuse Cover)

$3.99

$

In Stock, Qty 9

0

1538

Briggs & Stratton 847332

STUD

Note: (Fuse Cover)

$24.99

$

Usually ships in 2-12 days

0

1539

Briggs & Stratton 847333

WASHER

Note: (Fuse Cover)

$3.99

$

Usually ships in 2-12 days

0
