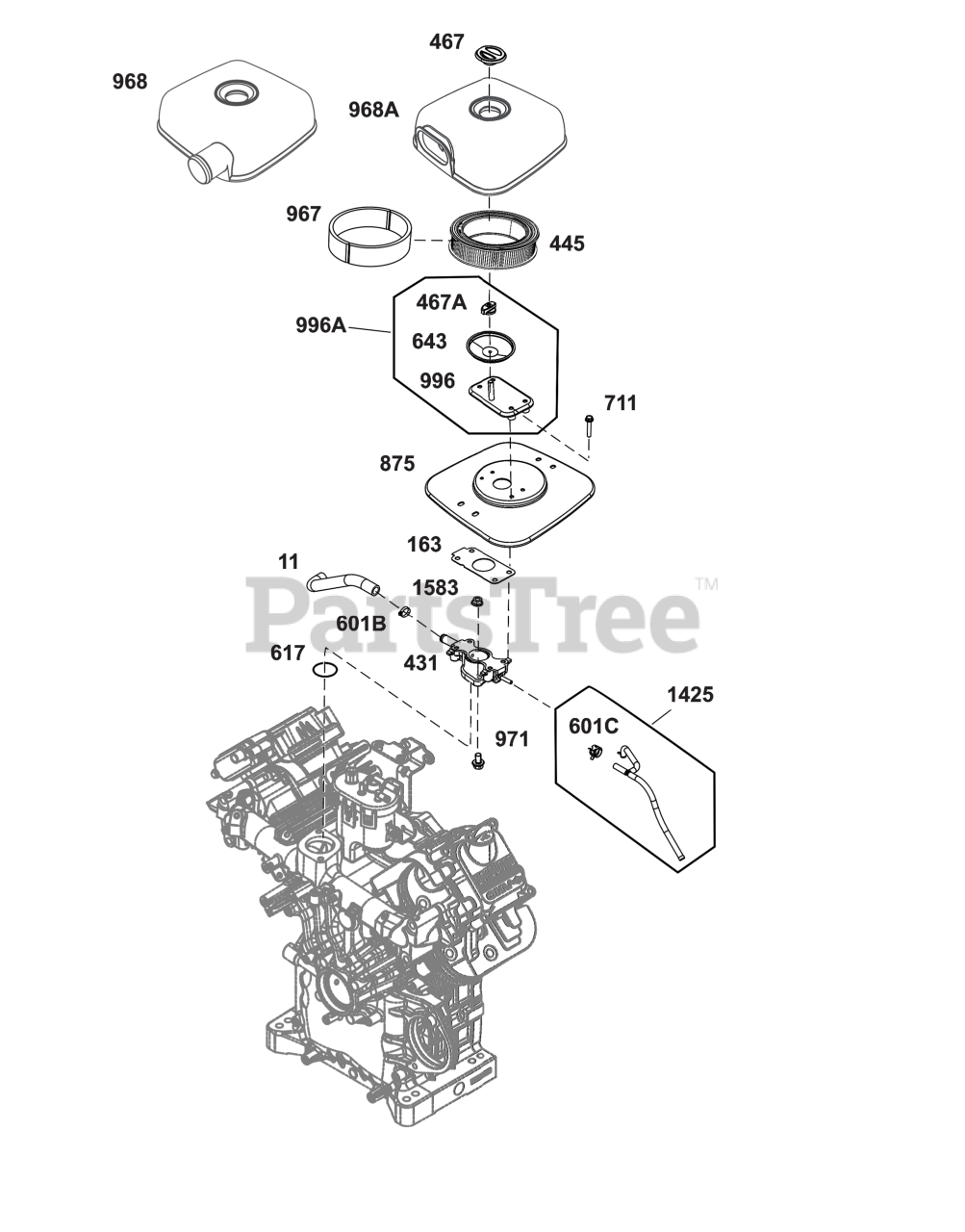

61G277-0013-J1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 846502

TUBE, Breather

$26.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 84006673

GASKET, AIR CLEANER

$4.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 84006671

ELBOW, INTAKE

$80.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 692519

FILTER, A/C Cartridge

$20.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

$16.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 846432

KNOB, Air Cleaner Cover

$8.99

$

Usually ships in 2-12 days

0

601B

Briggs & Stratton 844405

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

601C

Briggs & Stratton 846483

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

643

Briggs & Stratton 844932

RETAINER, Air Cleaner

$22.99

$

In Stock, Qty 6

0

711

Briggs & Stratton 807385

SCREW

$3.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 84006672

BASE, AIR CLEANER

$67.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 692520

FILTER, Pre Cleaner

$6.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 846323

COVER, Air Cleaner

$64.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner Base To Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 14

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0

996A

Briggs & Stratton 846013

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 847085

TUBE, Vent

$65.99

$

Usually ships in 2-12 days

0

1583

Briggs & Stratton 690939

NUT

Note: (Intake Elbow)

$3.49

$

In Stock, only 2 left!

0
