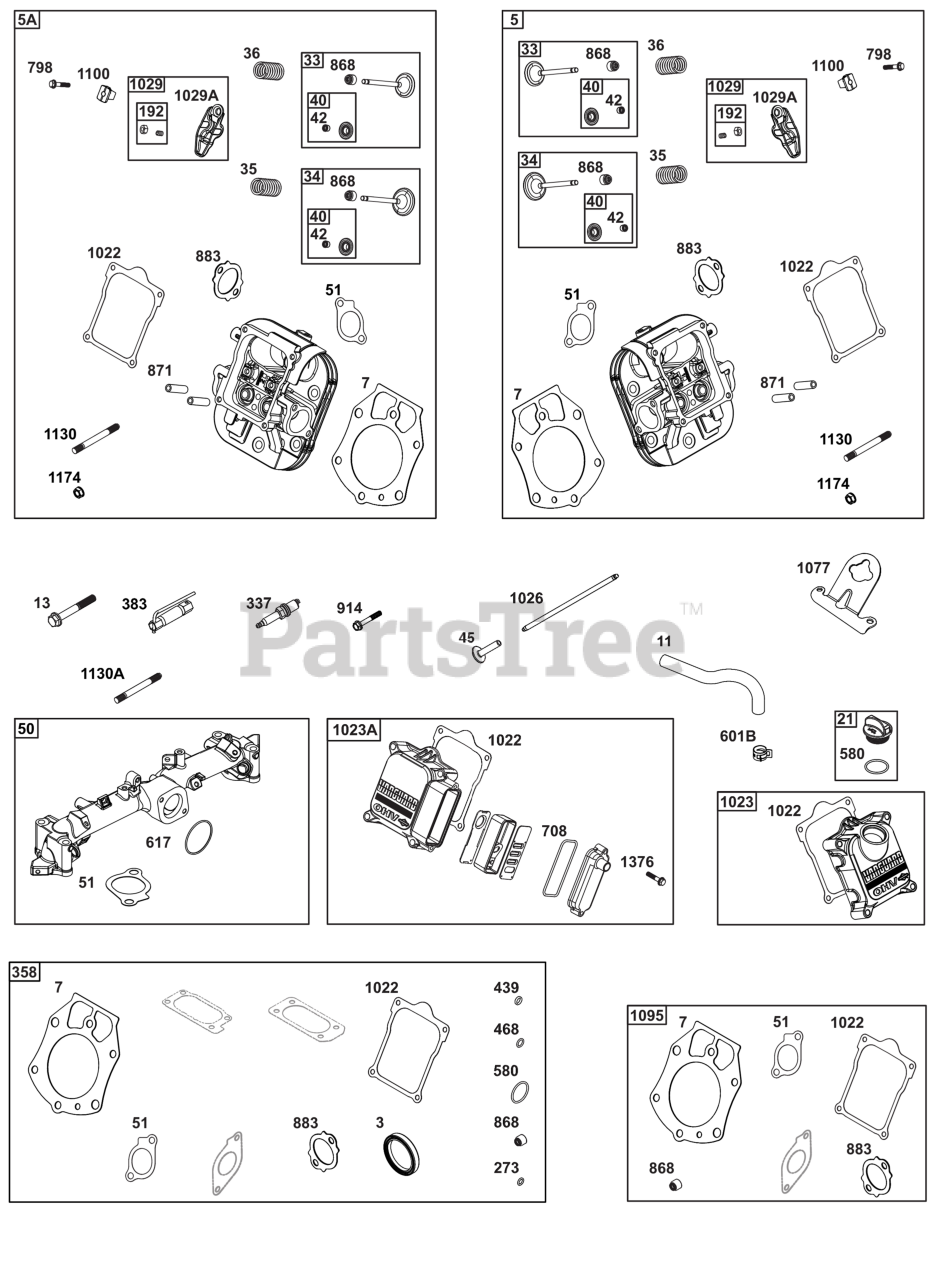

61G277-0005-J1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 84006466

HEAD, CYLINDER

$345.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 84006084

HEAD, CYLINDER

$315.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 809730

GASKET, Cylinder Head

$37.99

$

In Stock, Qty 16

0

11

TUBE, Breather

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

13

Briggs & Stratton 809784

SCREW

Note: (Cylinder Head) (M9x70mm)

$3.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 843464

CAP, Oil Fill

$10.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 843729

VALVE, Exhaust

$40.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 846469

VALVE, Intake

$29.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 845589

SPRING, Valve

Note: (Intake)

$7.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 845589

SPRING, Valve

Note: (Exhaust)

$7.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 844788

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

42

Briggs & Stratton 807683

KEEPER, Valve

$6.99

$

In Stock, Qty 8

0

45

Briggs & Stratton 809785

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 84004426

MANIFOLD, Intake

$211.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 847671

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

192

Briggs & Stratton 84005276

ADJUSTER. Rocker Arm

$10.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 20+

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

439

O-RING, Oil Gallery

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

468

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

580

Briggs & Stratton 809894

SEAL, O-Ring

Note: (Oil Fill Cap)

$9.49

$

In Stock, only 1 left!

0

601B

CLAMP, Hose

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

617

Briggs & Stratton 84003965

SEAL, O-Ring

$6.99

$

Usually ships in 2-12 days

0

708

Briggs & Stratton 841301

SEAL, O-Ring

Note: (Breather Reed)

$11.99

$

Usually ships in 2-12 days

0

798

Briggs & Stratton 691492

SCREW

Note: (Rocker Arm) (M6x18mm)

$3.99

$

In Stock, only 2 left!

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 692057

BUSHING, Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 809872

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

914

Briggs & Stratton 807357

SCREW

Note: (Rocker Cover) (M6x40mm)

$3.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 809732

GASKET, Rocker Cover

$17.99

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 809731

COVER, Rocker

$56.99

$

In Stock, only 2 left!

0

1023A

Briggs & Stratton 809789

COVER, Rocker

$98.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 809783

ROD, Push

$17.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, Qty 11

0

1029A

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1077

Briggs & Stratton 809729

BRACKET, Lifting

$18.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 846672

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$106.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1130

Briggs & Stratton 841590

STUD

Note: (Intake Manifold)

$10.99

$

In Stock, only 1 left!

0

1130A

Briggs & Stratton 84004225

STUD

Note: (Intake Manifold)

$19.99

$

Usually ships in 2-12 days

0

1174

Briggs & Stratton 842067

NUT

Note: (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

1376

Briggs & Stratton 806421

SCREW

Note: (Breather Reed Cover) (M5x25mm)

$

$

Not available
