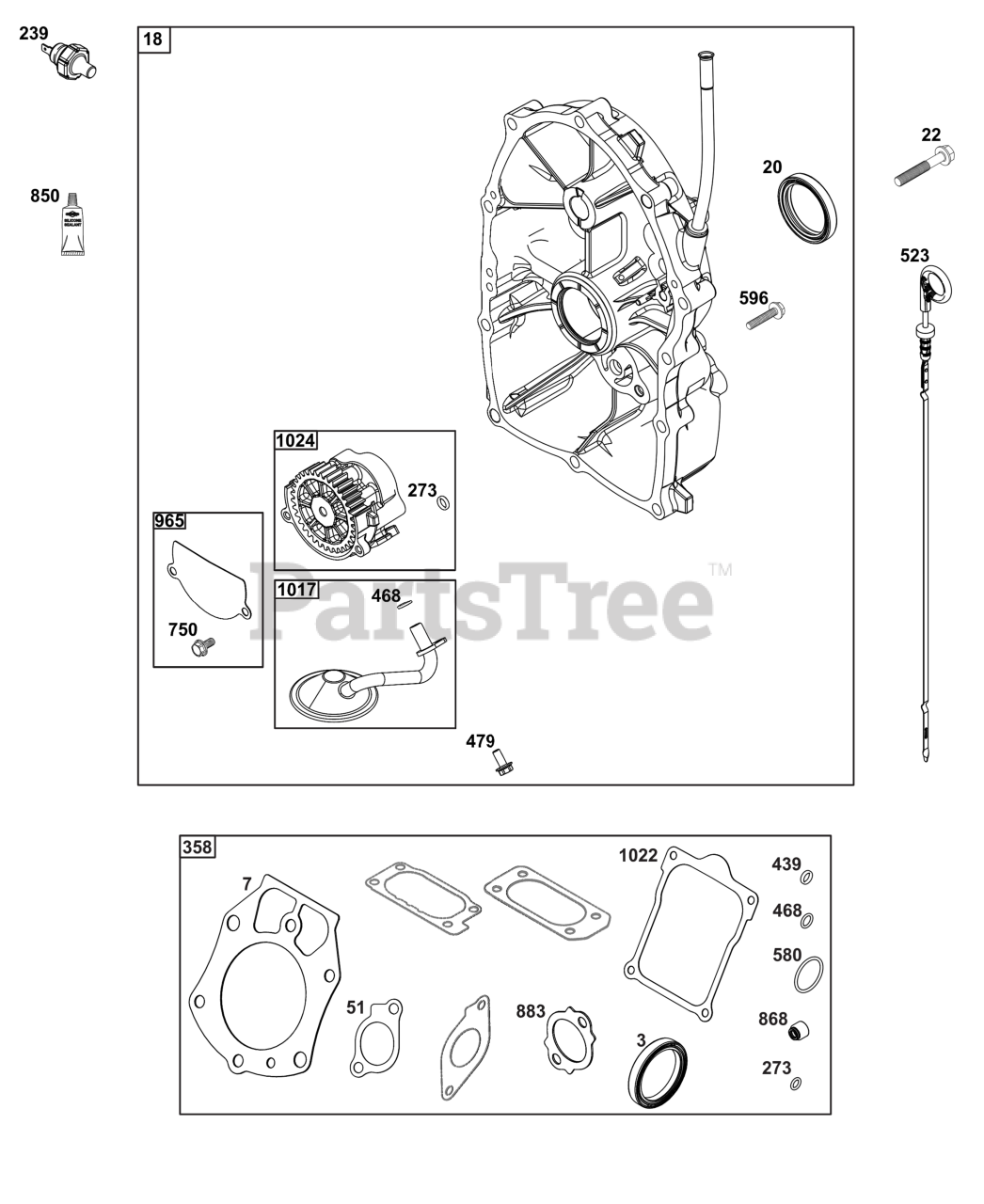

61G277-0005-J1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

18

Briggs & Stratton 848360

COVER, CRANKCASE

$385.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side)

$17.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump) (M8x50mm)

$3.49

$

In Stock, Qty 6

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

239

Briggs & Stratton 841281

SWITCH, Oil Pressure

$32.99

$

In Stock, only 3 left!

0

273

Briggs & Stratton 690681

SEAL, O-Ring

$5.99

$

In Stock, only 2 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

439

O-RING, Oil Gallery

Note: (Part information located in Cylinder Group.)

$

$

Not available

468

Briggs & Stratton 690690

SEAL, O-Ring

$5.99

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

$3.49

$

In Stock, Qty 7

0

523

Briggs & Stratton 841007

DIPSTICK

$30.99

$

In Stock, only 1 left!

0

580

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

596

Briggs & Stratton 691492

SCREW

$3.99

$

In Stock, only 2 left!

0

750

Briggs & Stratton 841233

SCREW

$3.49

$

In Stock, Qty 20+

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

965

Briggs & Stratton 809422

COVER, Oil Pump

$19.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 809421

SCREEN, Oil Pump

$34.99

$

Usually ships in 2-12 days

0

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

Briggs & Stratton 845983

PUMP, Oil

$159.99

$

Usually ships in 2-12 days

0
