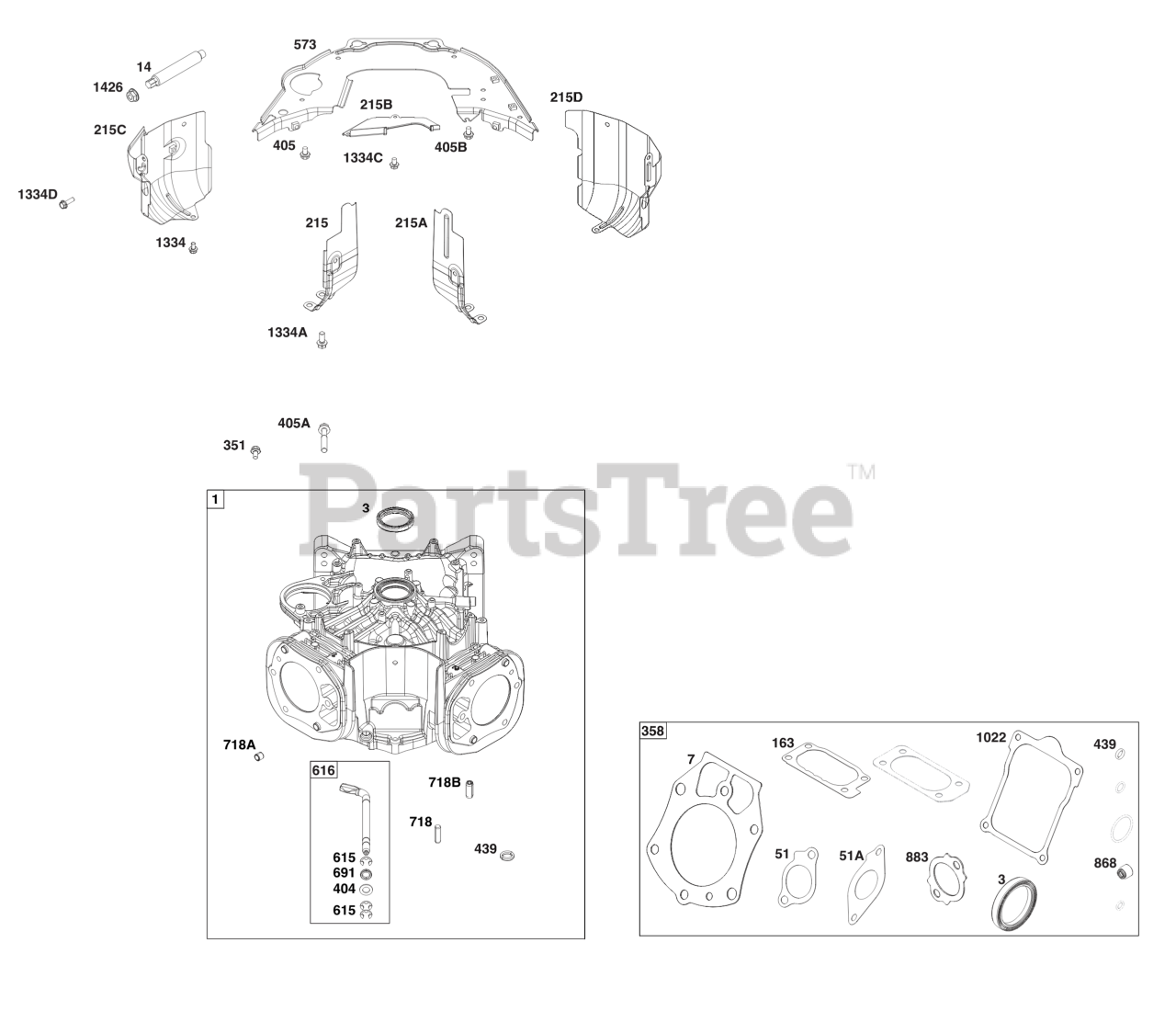

61E877-0112-J1 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 848372

CYLINDER ASSEMBLY

$677.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 841596

SEAL, Oil

Note: (Magneto Side)

$17.99

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

14

Briggs & Stratton 84006285

STUD

Note: (Cylinder Head)

$21.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

215

Briggs & Stratton 846455

GUIDE, Air

$37.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 846460

GUIDE, Air

$40.99

$

Usually ships in 2-12 days

0

215B

Briggs & Stratton 846458

GUIDE, Air

$39.99

$

Usually ships in 2-12 days

0

215C

Briggs & Stratton 809738

GUIDE, Air

$42.99

$

Usually ships in 2-12 days

0

215D

Briggs & Stratton 809897

GUIDE, Air

$42.99

$

Usually ships in 2-12 days

0

351

Briggs & Stratton 690677

SCREW

Note: (Ground Terminal)

$3.99

$

In Stock, only 2 left!

0

358

Briggs & Stratton 846498

GASKET SET, Engine
(Superseded to 84007012)

Note: (Service Kits may include extra parts not specific to this engine.)

$185.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 809436

WASHER

Note: (Governor Crank)

$5.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 807362

SCREW

$3.49

$

In Stock, Qty 6

0

405B

Briggs & Stratton 841735

SCREW

$3.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

$5.99

$

In Stock, Qty 20+

0

573

Briggs & Stratton 846840

PLATE, Back

$139.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 809533

RETAINER, Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 844180

CRANK, Governor

$35.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 809287

SEAL, Governor Shaft

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 809508

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 845925

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 20+

0

1334A

Briggs & Stratton 692062

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 14

0

1334C

Briggs & Stratton 690677

SCREW

Note: (Air Guide)

$3.99

$

In Stock, only 2 left!

0

1334D

Briggs & Stratton 807435

SCREW

Note: (Air Guide)

$3.49

$

Usually ships in 2-12 days

0

1426

Briggs & Stratton 690939

NUT

Note: (Air Guide)

$3.49

$

In Stock, only 2 left!

0
