61E877-0005-J1 - Briggs & Stratton Vertical Engine Oil Guard System - Tank, Hoses Parts Diagram

Vertical Engine

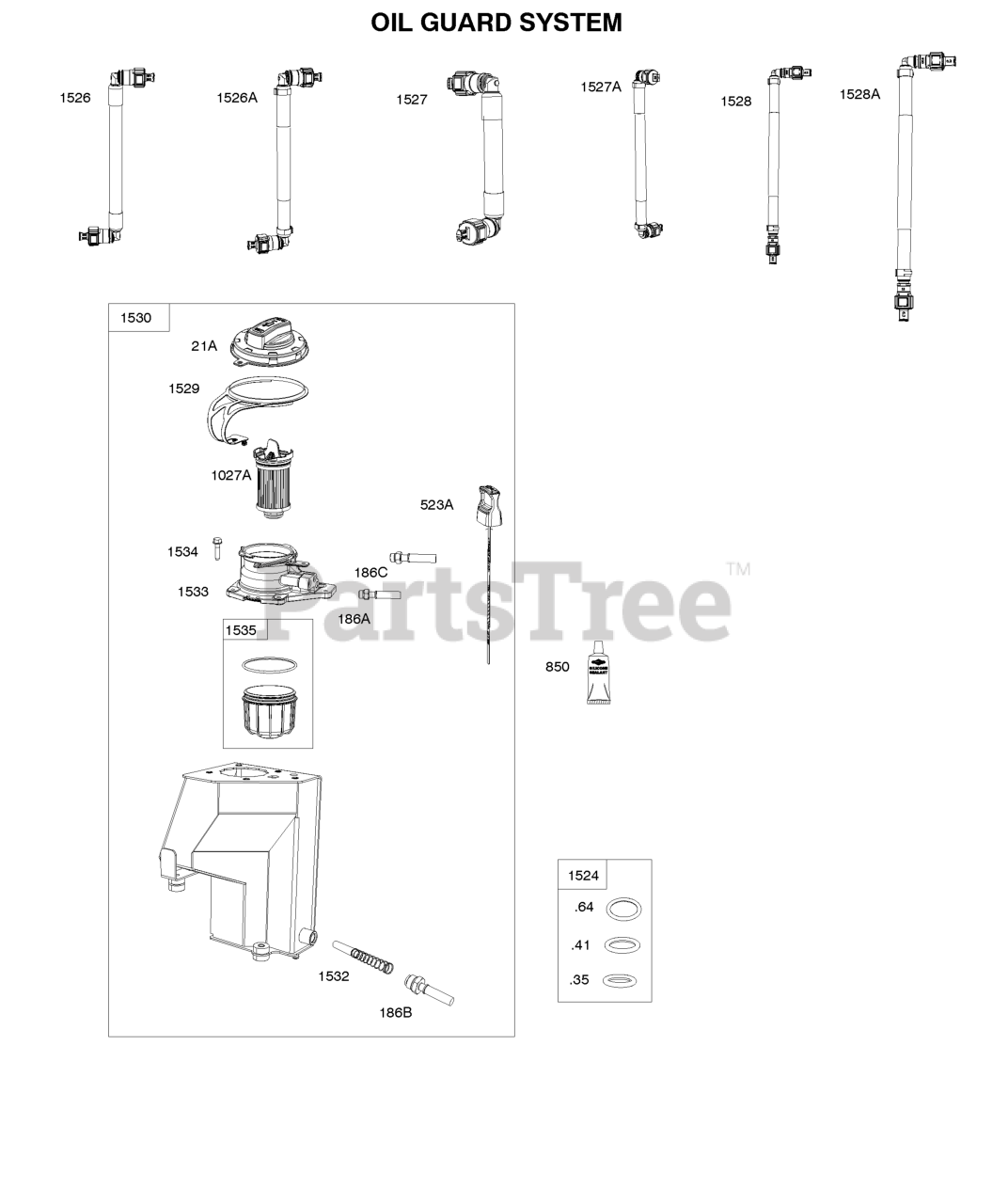

Oil Guard System - Tank, Hoses Parts Diagram

  • Title

21A

Briggs & Stratton 595931

Cap-Oil Fill

$29.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 847344

CONNECTOR, Hose

Note: (Engine Sump) or (Oil Filter Housing)

$14.99

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 847343

CONNECTOR, Hose

$18.99

$

Usually ships in 2-12 days

0

186C

Briggs & Stratton 847353

CONNECTOR, Hose

Note: (Oil Filter Housing)

$10.99

$

Usually ships in 2-12 days

0

523A

Briggs & Stratton 595933

Dipstick
(Superseded to 595602)

$28.99

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

1027A

Briggs & Stratton 595930

Filter-Oil
(Superseded to 84007094)

$33.99

$

In Stock, Qty 20+

0

1524

Briggs & Stratton 847342

KIT, O-Ring

Note: (Hose Connector) (Dry Sump Application)

$4.49

$

Usually ships in 2-12 days

0

1526

Briggs & Stratton 847349

HOSE, Oil Supply
(Superseded to 84006650)

Note: (338mm Long)

$74.99

$

Usually ships in 2-12 days

0

1526A

Briggs & Stratton 847347

HOSE, Oil Supply
(Superseded to 84006594)

Note: (382mm Long)

$136.99

$

Usually ships in 2-12 days

0

1527

Briggs & Stratton 847350

HOSE, Oil Scavenge

Note: (549mm Long)

$58.99

$

Usually ships in 2-12 days

0

1527A

Briggs & Stratton 847348

HOSE, Oil Scavenge

Note: (499mm Long)

$60.99

$

Usually ships in 2-12 days

0

1528

Briggs & Stratton 847351

HOSE, Oil Vent

Note: (464mm Long)

$57.99

$

Usually ships in 2-12 days

0

1528A

Briggs & Stratton 595943

HOSE, Oil Vent

Note: (902mm Long)

$60.99

$

Usually ships in 2-12 days

0

1529

Briggs & Stratton 595932

TETHER

Note: (Oil Fill Cap)

$15.99

$

Usually ships in 2-12 days

0

1530

Briggs & Stratton 595945

TANK, Oil
(Superseded to 84006647)

Note: (Mounting Grommets Available through OEM)

$889.99

$

In Stock, only 1 left!

0

1532

Briggs & Stratton 847398

SCREEN, Oil

Note: (Oil Tank)

$56.99

$

Usually ships in 2-12 days

0

1533

Briggs & Stratton 595986

HOUSING, Oil Filter

$232.99

$

Usually ships in 2-12 days

0

1534

Briggs & Stratton 593637

SCREW

Note: (Oil Filter Housing)

$5.49

$

Usually ships in 2-12 days

0

1535

Briggs & Stratton 595987

CUP, Oil Filter

Note: (Oil Filter Housing)

$28.99

$

Usually ships in 2-12 days

0
