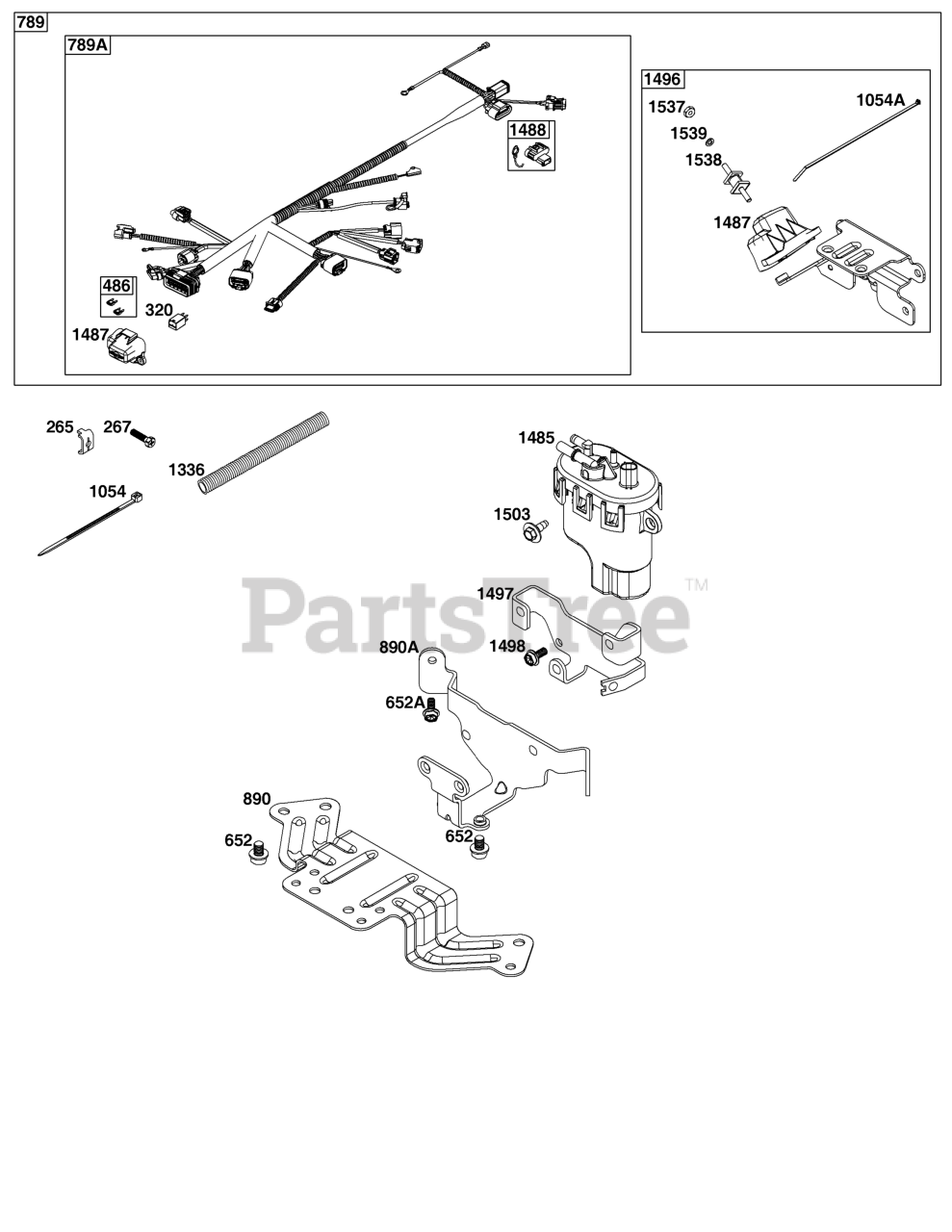

61E477-0003-J1 - Briggs & Stratton Horizontal Engine Wire Harness, Fuel Module, Brackets Parts Diagram

Horizontal Engine

Wire Harness, Fuel Module, Brackets Parts Diagram

  • Title

265

Briggs & Stratton 691024

CLAMP, Casing

Note: (Control Bracket)

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

320

Briggs & Stratton 593902

RELAY(S)

Note: (Wire Harness)

$43.99

$

Usually ships in 2-12 days

0

486

Briggs & Stratton 593901

FUSE

$13.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 845964

SCREW

Note: (Support Bracket) (M6x10mm)

$4.49

$

Usually ships in 2-12 days

0

652A

Briggs & Stratton 807084

SCREW

Note: (Support Bracket) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

789

Briggs & Stratton 847336

Harness-Wiring

Note: Before Code Date 16080100

$363.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 846867

HARNESS-WIRING
(Superseded to 847336)

Note: After Code Date 16073100

$363.99

$

In Stock, only 1 left!

0

890

Briggs & Stratton 846493

BRACKET, Support

Note: (Fuel Module Heat Shield)

$111.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 846506

BRACKET, Support

Note: (Fuel Module)

$101.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: (Clear, Nylon)

$4.49

$

Usually ships in 2-12 days

0

1054A

Briggs & Stratton 861206

Tie-Cable

Note: (Black, Nylon)

$4.49

$

In Stock, only 1 left!

0

1336

Briggs & Stratton 841015

SHIELD, Wire Protective
(Superseded to 846822)

Note: (Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1487

Briggs & Stratton 847334

COVER, Fuse

$35.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$12.99

$

Usually ships in 2-12 days

0

1496

Briggs & Stratton 847337

COVER, Fuse

$120.99

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$106.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.49

$

In Stock, Qty 7

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

In Stock, Qty 20+

0

1537

Briggs & Stratton 703460

Nut

Note: (Fuse Cover)

$3.99

$

In Stock, Qty 9

0

1538

Briggs & Stratton 847332

STUD

Note: (Fuse Cover)

$24.99

$

Usually ships in 2-12 days

0

1539

Briggs & Stratton 847333

WASHER

Note: (Fuse Cover)

$3.99

$

Usually ships in 2-12 days

0
