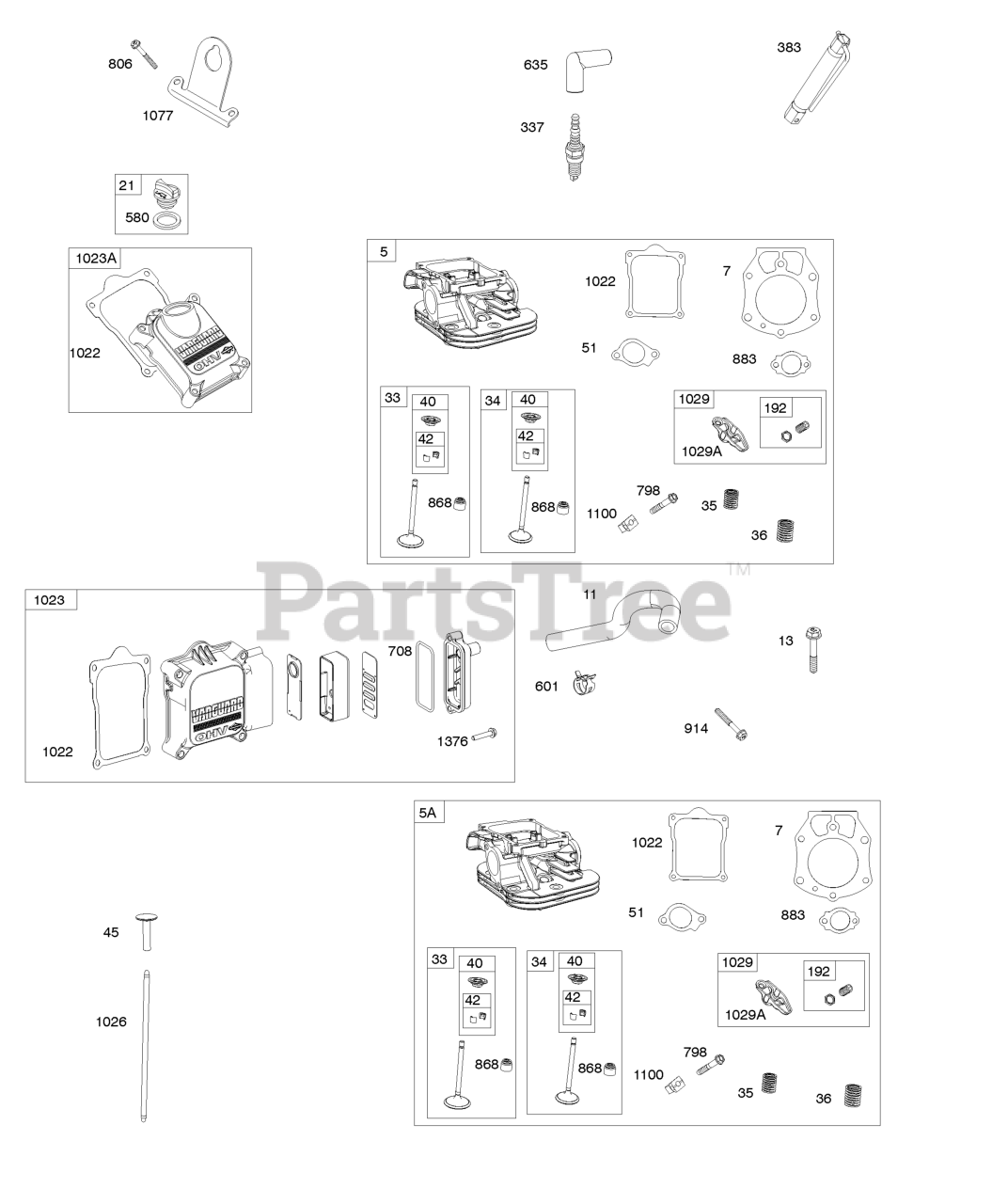

61E477-0003-J1 - Briggs & Stratton Horizontal Engine Cylinder Heads, Rocker Arm Covers Parts Diagram

Horizontal Engine

Cylinder Heads, Rocker Arm Covers Parts Diagram

  • Title

5

Briggs & Stratton 846463

Head-Cylinder
(Superseded to 848342)

Note: (Cylinder #1)

$345.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 846464

Head-Cylinder
(Superseded to 848343)

Note: (Cylinder #2)

$315.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 809730

GASKET, Cylinder Head

$37.99

$

In Stock, Qty 20+

0

11

Briggs & Stratton 846502

TUBE, Breather

Note: (Formed Hose)

$26.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 809784

SCREW

Note: (Cylinder Head) (M9x70mm)

$3.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 843464

CAP, Oil Fill

$10.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 844787

VALVE, Exhaust

$47.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 846469

VALVE, Intake

$29.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 845589

SPRING, Valve

Note: (Intake) (Intake) (Pink)

$7.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 845589

SPRING, Valve

Note: (Exhaust) (Exhaust) (Pink)

$7.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 844788

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

42

Briggs & Stratton 807683

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 809785

TAPPET, Valve

$9.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 841592

Gasket-Intake
(Superseded to 847671)

Note: (Intake Manifold)

$4.49

$

In Stock, Qty 7

0

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

580

Briggs & Stratton 809894

SEAL, O-Ring

Note: (Oil Fill Cap)

$9.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 844405

CLAMP, Hose

Note: (Breather Tube)

$3.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

708

Briggs & Stratton 841301

SEAL, O-Ring

Note: (Breather Reed)

$11.99

$

Usually ships in 2-12 days

0

798

Briggs & Stratton 691492

SCREW

Note: (Rocker Arm)

$3.99

$

In Stock, only 2 left!

0

806

Briggs & Stratton 807357

SCREW

Note: (Lifting Bracket)

$3.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 809872

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

914

Briggs & Stratton 807357

SCREW

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 809732

GASKET, Rocker Cover

$17.99

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 809789

COVER, Rocker

Note: (Cylinder #2)

$98.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 809731

COVER, Rocker

Note: (Cylinder #1)

$56.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 809783

ROD, Push

Note: (Intake and Exhaust)

$17.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, Qty 13

0

1029A

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1077

Briggs & Stratton 809729

BRACKET, Lifting

$18.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 3 left!

0

1376

Briggs & Stratton 806421

SCREW

Note: (Breather Reed Cover)

$

$

Not available
