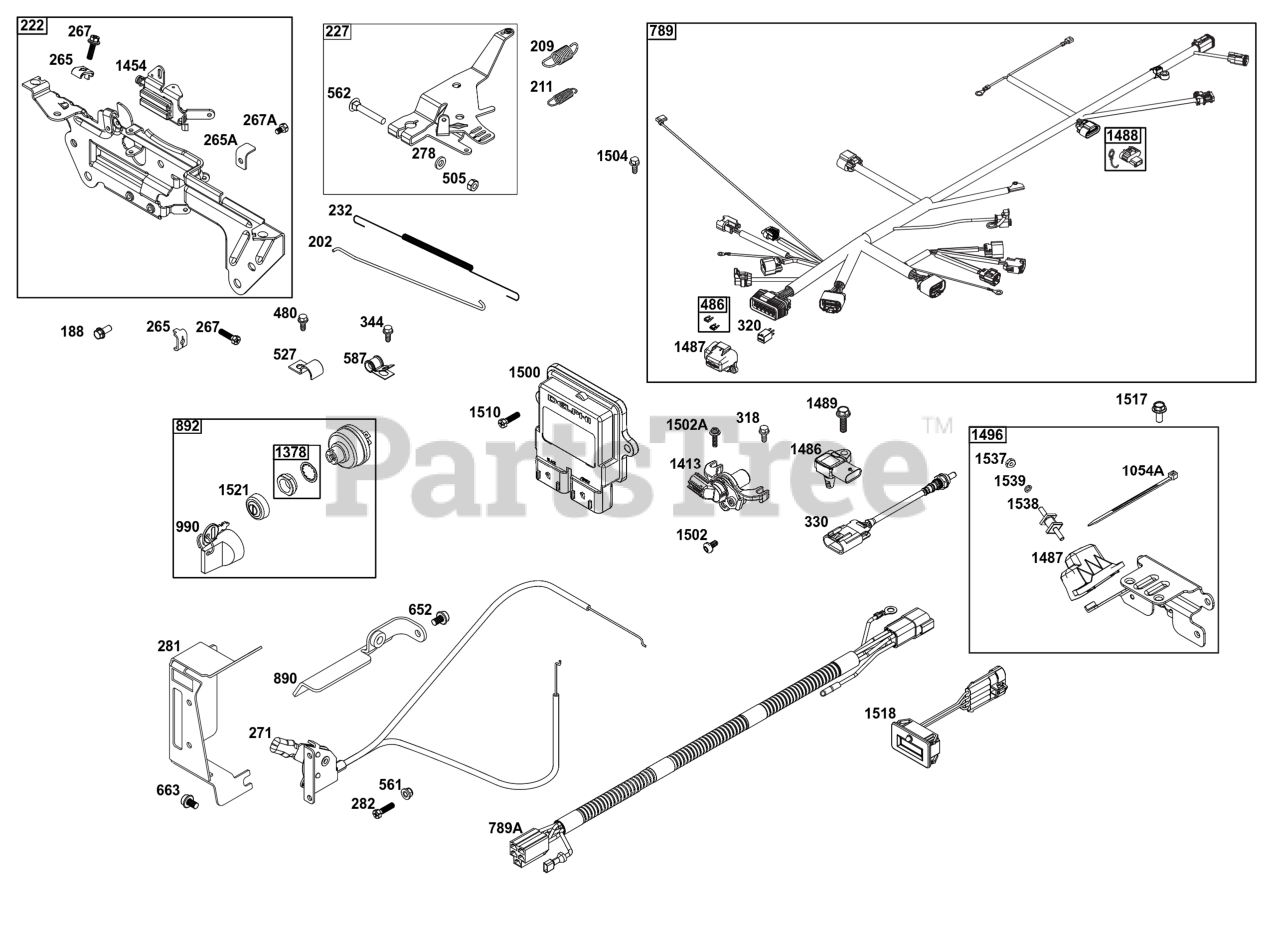

61E377-0052-J1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, Qty 20+

0

202

Briggs & Stratton 846825

LINK, Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 841500

SPRING, Governor

$9.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 809875

SPRING, Governed Idle

$

$

Not available

222

Briggs & Stratton 846818

BRACKET, Control

$166.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 809984

LEVER, Governor Control

$26.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 843248

SPRING/LINK, Governor

$10.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

265A

Briggs & Stratton 841673

CLAMP, Casing

$13.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

267A

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

271

Briggs & Stratton 692541

LEVER, Control

$39.99

$

In Stock, Qty 18

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

281

Briggs & Stratton 690742

PANEL, Control

$61.99

$

Usually ships in 2-12 days

0

282

Briggs & Stratton 841552

SCREW

Note: (Control Lever) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

318

Briggs & Stratton 841233

SCREW

$3.49

$

In Stock, Qty 20+

0

320

Briggs & Stratton 593902

RELAY(S)

$43.99

$

Usually ships in 2-12 days

0

330

Briggs & Stratton 593870

SENSOR, Oxygen

$136.99

$

In Stock, only 1 left!

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

486

Briggs & Stratton 593901

FUSE

$13.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

561

Briggs & Stratton 690713

NUT
(Superseded to 806447)

Note: (Control Lever)

$

$

Not available

562

Briggs & Stratton 843344

BOLT

Note: (Governor Lever)

$5.49

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 846866

CLAMP, Cable

$5.49

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 841233

SCREW

Note: (Support Bracket) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

663

Briggs & Stratton 692056

SCREW

Note: (Control Lever) (M8x14mm)

$5.99

$

In Stock, Qty 5

0

789

Briggs & Stratton 847408

HARNESS, Wiring

$571.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 846776

HARNESS, Wiring

$83.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 847155

BRACKET, Support

$146.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 847448

SWITCH, Key

$57.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 847146

SET, Key

$31.99

$

In Stock, only 2 left!

0

1054A

Briggs & Stratton 861206

TIE, Cable

$4.49

$

In Stock, only 1 left!

0

1378

Briggs & Stratton 847144

WASHER/NUT SET

Note: (Key Switch)

$10.99

$

Usually ships in 2-12 days

0

1413

Briggs & Stratton 84006668

SENSOR, Speed

$58.99

$

In Stock, Qty 6

0

1454

Briggs & Stratton 845807

SLIDER, Governor

$16.99

$

In Stock, only 1 left!

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

Usually ships in 2-12 days

0

1487

Briggs & Stratton 847334

COVER, Fuse

$35.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$12.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 807435

SCREW

Note: (TEMP/MAP Sensor) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1496

Briggs & Stratton 847337

COVER-FUSE KIT

$120.99

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 846484

MODULE-ELECTRONIC CONTROL

Note: (Not Programmed)

$262.99

$

Usually ships in 2-12 days

0

1502

Briggs & Stratton 846459

SCREW

Note: (Speed Sensor) (M5x10mm)

$3.49

$

Usually ships in 2-12 days

0

1502A

Briggs & Stratton 846868

SCREW

Note: (Speed Sensor) (M4x18mm)

$4.49

$

Usually ships in 2-12 days

0

1504

Briggs & Stratton 841233

SCREW

Note: (Fuse Cover) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

1510

Briggs & Stratton 841552

SCREW

Note: (Electronic Control Module) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

1517

Briggs & Stratton 807084

SCREW

$3.49

$

In Stock, Qty 7

0

1518

Briggs & Stratton 847016

TACHOMETER

$192.99

$

Usually ships in 2-12 days

0

1521

Briggs & Stratton 847150

CAP, Switch

$8.49

$

In Stock, Qty 16

0

1537

Briggs & Stratton 703460

NUT, HEX, ZINC, #8-32

Note: (Fuse Cover)

$3.99

$

In Stock, Qty 9

0

1538

Briggs & Stratton 847332

STUD

Note: (Fuse Cover)

$24.99

$

Usually ships in 2-12 days

0

1539

Briggs & Stratton 847333

WASHER

Note: (Fuse Cover)

$3.99

$

Usually ships in 2-12 days

0
