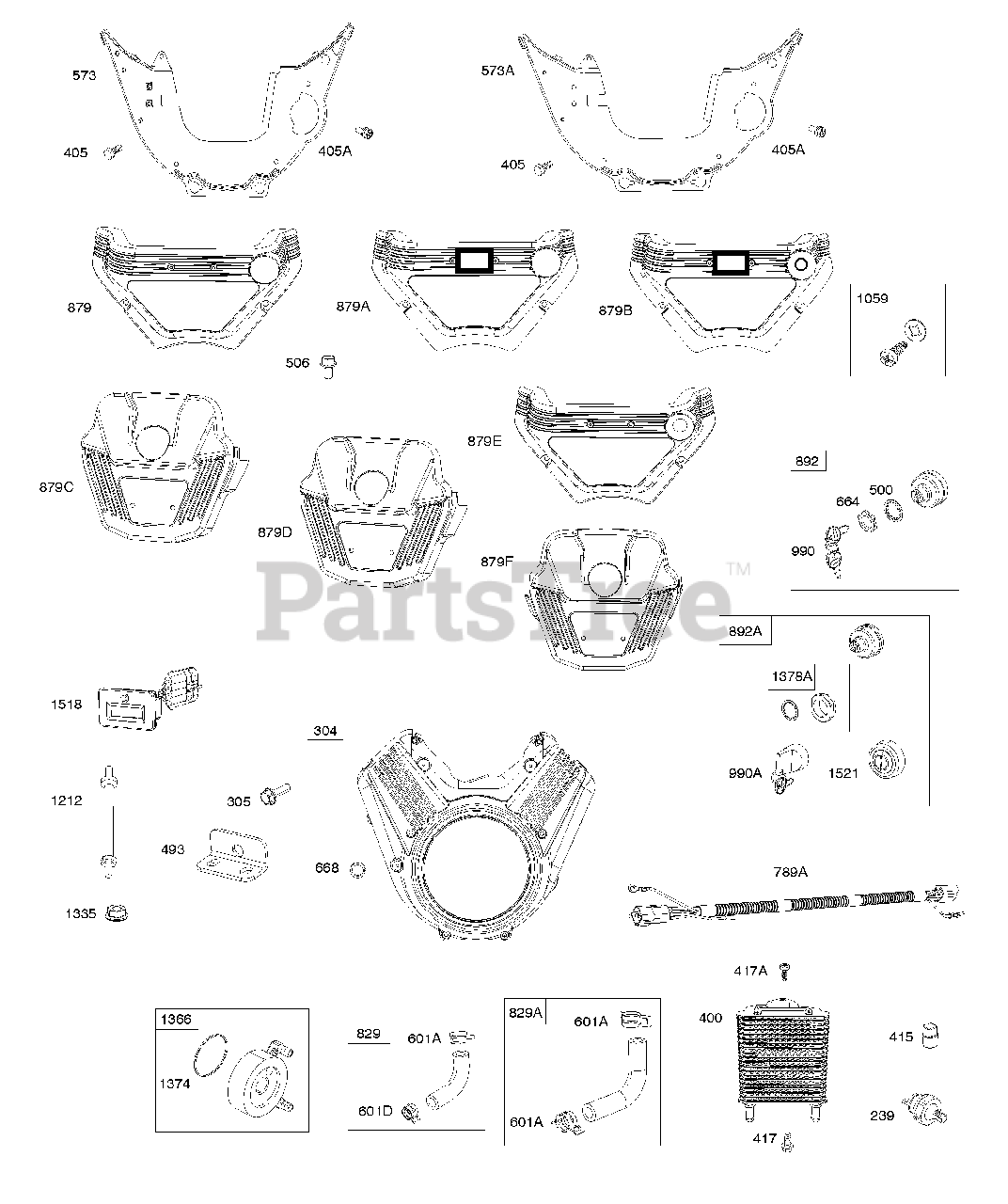

61E377-0001-J1 - Briggs & Stratton Horizontal Engine Blower Housing, Oil Cooler, Tachometer, Key Switches Parts Diagram

Horizontal Engine

Blower Housing, Oil Cooler, Tachometer, Key Switches Parts Diagram

  • Title

239

Briggs & Stratton 841281

Switch-Oil Pressure

$32.99

$

In Stock, Qty 8

0

304

Briggs & Stratton 846481

HOUSING, Blower

Note: (Oil Cooler)

$

$

Not available

305

Briggs & Stratton 807435

SCREW

Note: (Blower Housing) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

400

Briggs & Stratton 846249

COOLER, Oil

$83.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 841735

SCREW

Note: (Back Plate) (M6x14mm) Used After Code Date 15110200

$3.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 794903

PLUG

Note: (M6x10mm)

$5.49

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 841233

SCREW

Note: (Oil Cooler) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

417A

Briggs & Stratton 846250

SCREW

Note: (Oil Cooler) (M6x16mm)

$4.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 692056

Screw

Note: (Carburetor/EFI Cover) (M8x14mm)

$5.99

$

In Stock, Qty 5

0

573

Briggs & Stratton 842712

Plate-Back

Note: (With Weld Nuts)

$54.99

$

Usually ships in 2-12 days

0

573A

Briggs & Stratton 846840

PLATE, Back

Note: (Without Weld Nuts)

$139.99

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

In Stock, only 3 left!

0

601D

Briggs & Stratton 845209

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 841974

SPACER

Note: (Blower Housing)

$5.99

$

In Stock, only 3 left!

0

789A

Briggs & Stratton 846776

Harness-Wiring

$83.99

$

Usually ships in 2-12 days

0

829

Briggs & Stratton 846247

HOSE, Oil Cooler
(Superseded to 846155)

$52.99

$

In Stock, only 2 left!

0

829A

Briggs & Stratton 846248

HOSE, Oil Cooler
(Superseded to 846155)

$52.99

$

In Stock, only 2 left!

0

879B

Briggs & Stratton 847168

Cover-Carburetor/EFI

Note: (Keyswitch/Tachometer)

$146.99

$

Usually ships in 2-12 days

0

892A

Briggs & Stratton 847448

Switch-Key

$57.99

$

Usually ships in 2-12 days

0

990A

Briggs & Stratton 847146

Key Set

$31.99

$

In Stock, only 2 left!

0

1059

Briggs & Stratton 845300

KIT, Screw/Washer

Note: (Carburetor/EFI Cover)

$5.49

$

Usually ships in 2-12 days

0

1212

Briggs & Stratton 809958

STUD

Note: (Blower Housing)

$17.99

$

In Stock, only 3 left!

0

1366

Briggs & Stratton 841510

DIVERTER, Oil Cooler

$87.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 841506

Seal-O Ring
(Superseded to 796863)

Note: (Oil Cooler Diverter)

$5.99

$

In Stock, Qty 20+

0

1378A

Briggs & Stratton 847144

Washer/Nut Set

Note: (Key Switch)

$10.99

$

Usually ships in 2-12 days

0

1518

Briggs & Stratton 847016

TACHOMETER

$192.99

$

Usually ships in 2-12 days

0

1521

Briggs & Stratton 847150

Cap-Switch

$8.49

$

In Stock, Qty 16

0
