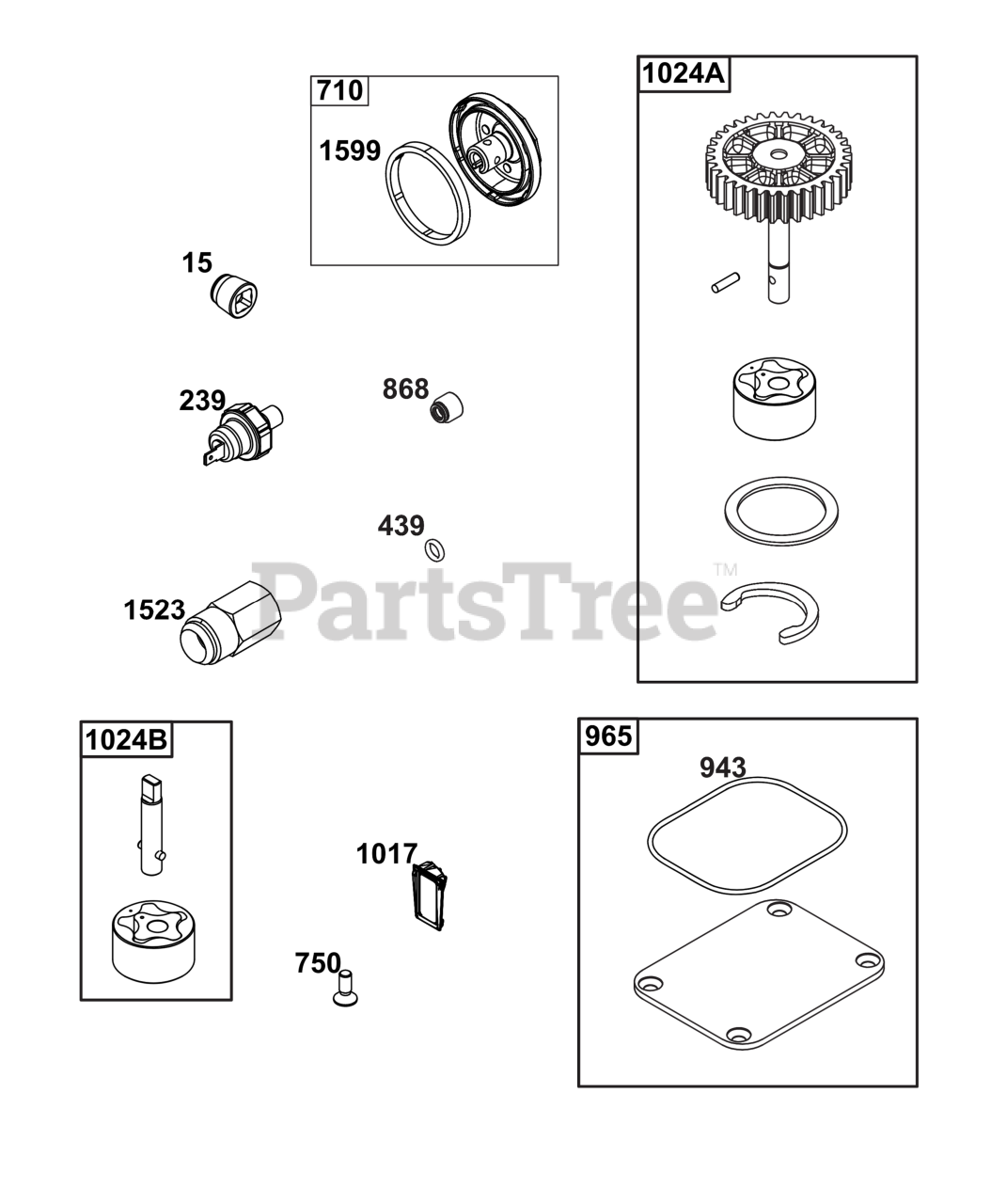

61A777-0100-J1 - Briggs & Stratton Vertical Engine Lubrication Group Parts Diagram

Vertical Engine

Lubrication Group Parts Diagram

  • Title

15

PLUG, Oil Drain

Note: (Part information located in Cylinder Group.)

$

$

Not available

239

Briggs & Stratton 841281

SWITCH, Oil Pressure

$32.99

$

In Stock, Qty 9

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

710

Briggs & Stratton 84006992

COVER, Oil Filter

$24.99

$

Usually ships in 2-12 days

0

750

Briggs & Stratton 842537

SCREW

Note: (Oil Pump Cover)

$10.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

943

Briggs & Stratton 842538

SEAL, O-Ring

Note: (Oil Pump Cover)

$14.99

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 842536

COVER, Oil Pump

$17.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 796214

SCREEN, Oil Pump

$10.99

$

Usually ships in 2-12 days

0

1024A

Briggs & Stratton 847388

PUMP, Oil

$54.99

$

Usually ships in 2-12 days

0

1024B

Briggs & Stratton 847355

PUMP, Oil

$46.99

$

Usually ships in 2-12 days

0

1523

Briggs & Stratton 847341

VALVE, Check

$43.99

$

Usually ships in 2-12 days

0

1599

Briggs & Stratton 84007010

SEAL, O-RING

Note: (Bypass Cover)

$7.99

$

Usually ships in 2-12 days

0
