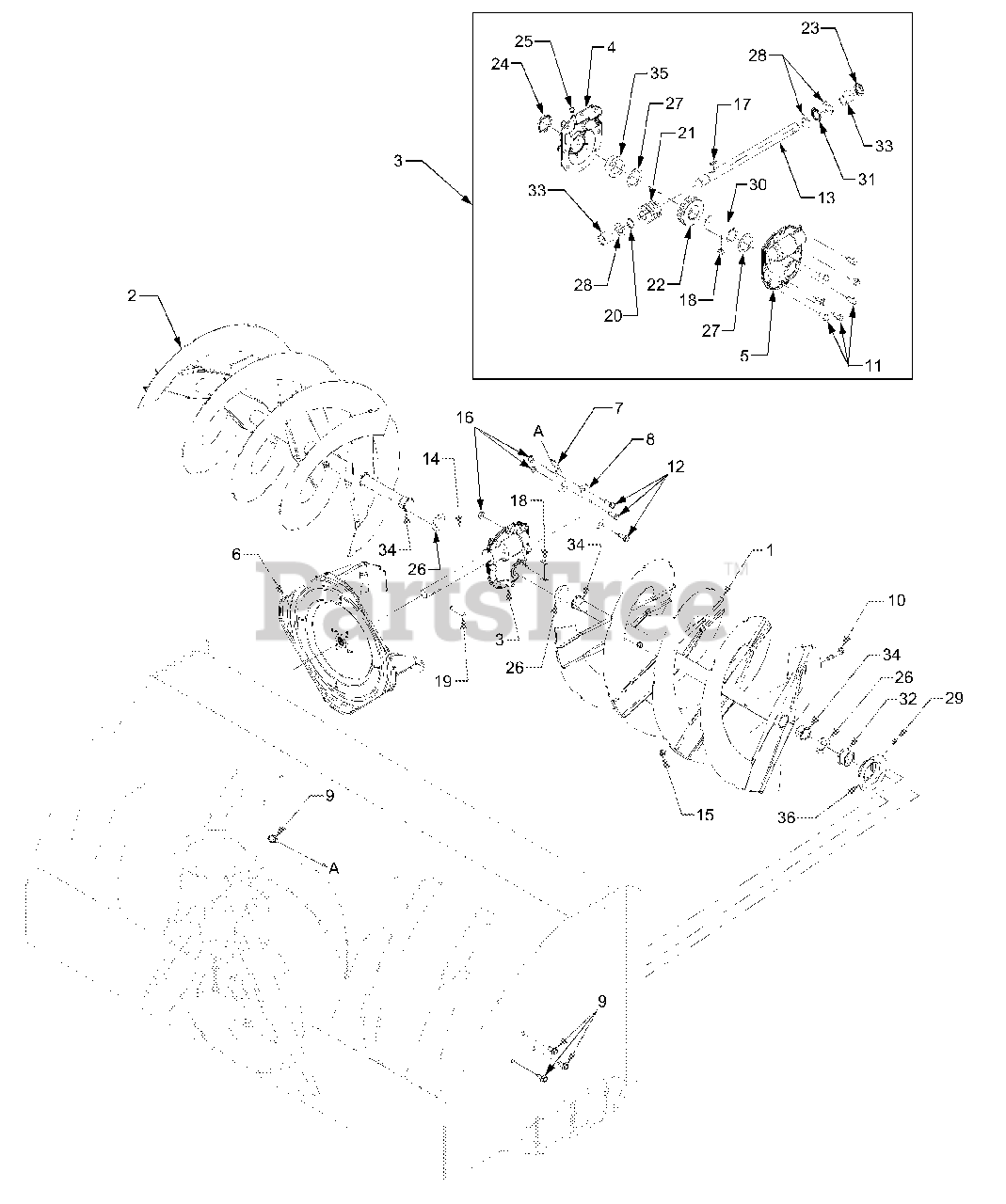

619 (590-619-100) - Cub Cadet 54" Snow Thrower Attachment Spiral Assembly And Gearbox Parts Diagram

54" Snow Thrower Attachment

Spiral Assembly And Gearbox Parts Diagram

  • Title

1

Cub Cadet 603-0801

Spiral Assembly - RH

Variations

Cub Cadet 603-0801-0637

SPIRAL ASSEMBLY (LH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-0802

Spiral Assembly - LH

Variations

Cub Cadet 603-0802-0637

SPIRAL ASSEMBLY (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 618-0244

Auger Gear Box Assembly
(Superseded to 918-0244)

$

$

Not available

4

Cub Cadet 618-0246

Housing, Gear - RH (Includes Ref. Nos. 24 and 35)
(Superseded to 918-0246)

$

$

Not available

5

Cub Cadet 618-0247

Housing, Gear - LH (Includes Ref. Nos. 24 and 35)
(Superseded to 918-0247)

$103.99

$

In Stock, only 1 left!

0

6

Cub Cadet 684-0069-0716

Impellar Assembly
(Superseded to 684-0069-0637)

$281.99

$

In Stock, only 1 left!

0

7

Cub Cadet 703-3634

Bracket, Gear Box Support

$

$

Not available

8

Cub Cadet 703-3635

Plate, Support
(Superseded to 703-3635-0716)

Variations

Cub Cadet 703-3635-0716

SUPPORT-GEAR BOX - CUB YELLOW-99 (0716)

$

$

Not available

$

$

9

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0891

Shear Bolt, 5/16-18 x 1-3/4

$7.49

$

In Stock, Qty 16

0

11

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3038

Screw, Hex Cap 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

13

Cub Cadet 711-1097A

Shaft, Input

$

$

Not available

14

Cub Cadet 711-1581

Axle, Spiral, 1" x 53.12

$118.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 16

0

18

Cub Cadet 714-0135

Key, Woodruff, 1/4 x 3/4

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 715-0118

Pin, Spirol, 5/16 x 1.75

$12.99

$

In Stock, Qty 7

0

20

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.99

$

In Stock, only 4 left!

0

21

Cub Cadet 717-0299

Gear, Worm
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

22

Cub Cadet 717-1425

Gear, Worm
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

23

Cub Cadet 721-0145

Seal, Oil
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 721-0146

Seal, Oil
(Superseded to 921-0146)

$12.99

$

In Stock, only 1 left!

0

25

Cub Cadet 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0250

Washer, Flat, 1.0 x 1.75 x .1

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0266

Washer, Flat, 1.5 x 2.0 x .3
(Superseded to 936-0266)

$

$

Not available

28

Cub Cadet 736-0291

Washer, Flat, .88 x 1.4 x .125

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 737-3000

Lube Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 738-0275

Shaft, Worm Gear

$112.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-0184

Bearing, Thrust

$16.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 741-0192

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

33

Cub Cadet 741-0217

Bearing, Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 9

0

34

Cub Cadet 741-0494

Bushing, Flange

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 741-0670

Bearing, Flange

$13.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 784-0315

Housing, Bearing
(Superseded to 784-0315A-0637)

Variations

Cub Cadet 784-0315-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 737-0168

Grease, Alvania EP 2.5 oz
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz. Tube

$70.99

$

Usually ships in 3-6 days

0
