619 (590-619-100) - Cub Cadet 54" Snow Thrower Attachment att Discharge Chute And Chute Controls Parts Diagram

54" Snow Thrower Attachment

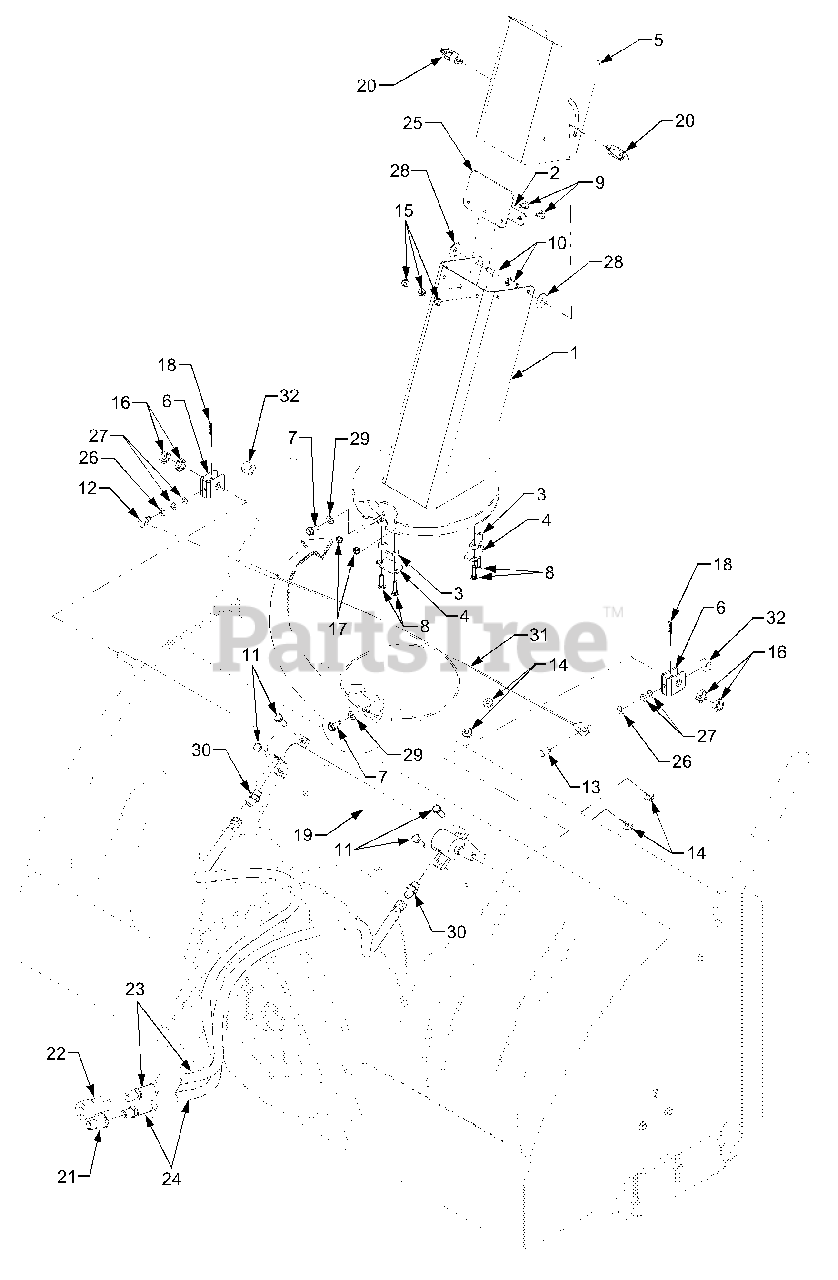

Discharge Chute And Chute Controls Parts Diagram

  • Title

1

Cub Cadet 603-0936

Chute, Discharge

$

$

Not available

2

Cub Cadet 703-05048

Bracket, Rubber Deflector

$

$

Not available

3

Cub Cadet 703-4079

Spacer, Chute Clamp
(Superseded to 703-4079-4021)

Variations

Cub Cadet 703-4079-4021

SPACER-CHUTE CLAMP - CUB YELLOW 2 (4021)

$

$

Not available

$

$

4

Cub Cadet 703-4080

Clamp, Chute

$

$

Not available

5

Cub Cadet 703-4086

Deflector, Chute

$

$

Not available

6

Cub Cadet 703-4087

Bracket, Rod End

$

$

Not available

7

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0932

Screw, Carriage, 1/4-20 x 1.0
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

9

Cub Cadet 710-0946

Screw, Truss Hd., 1/4-20 x .625

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3105

Bolt, Carriage, 5/16-18 x 7/8

$6.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-3118

Screw, Hex Cap Lock 3/8-16 x 1.0 GR5

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-04064

Ferrule, 5/16-18 x .312 Dia

$

$

Not available

13

Cub Cadet 711-0653

Pin, Clevis, .312 x 1.0

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3035

Nut, Hex Jam, 9/16-18 GR5

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0324

Nut, Hex Nylon Lock, 1/4-20 GR8

$3.99

$

In Stock, Qty 16

0

18

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 717-3526

Cylinder, Chute

$

$

Not available

20

Cub Cadet 720-0241

Knob, Wing Nut, 5/6-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 727-3224

Coupling, Hydraulic - Male

$118.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 727-3225

Coupling, Hydraulic - Female

$89.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 727-3244

Hose, Hydraulic, 3/8 ID x 62"

$

$

Not available

24

Cub Cadet 727-3245

Hose, Hydraulic, 3/8 ID x 82"

$

$

Not available

25

Cub Cadet 731-3365

Deflector, Rubber

$

$

Not available

26

Cub Cadet 736-0264

Washer, Flat, .33 x .63 x .0635

$6.99

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0271

Washer, Spring, .317 x .625
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

28

Cub Cadet 736-0123

Washer, Flat, .348 x 1.16 x .064
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 737-3125

Fitting, Straight Hydraulic

$

$

Not available

31

Cub Cadet 746-3094

Cable, Chute Rotation

$

$

Not available

32

Cub Cadet 750-3056

Spacer, .56 ID x .81 OD x .66
(Superseded to 950-3056)

$

$

Not available
