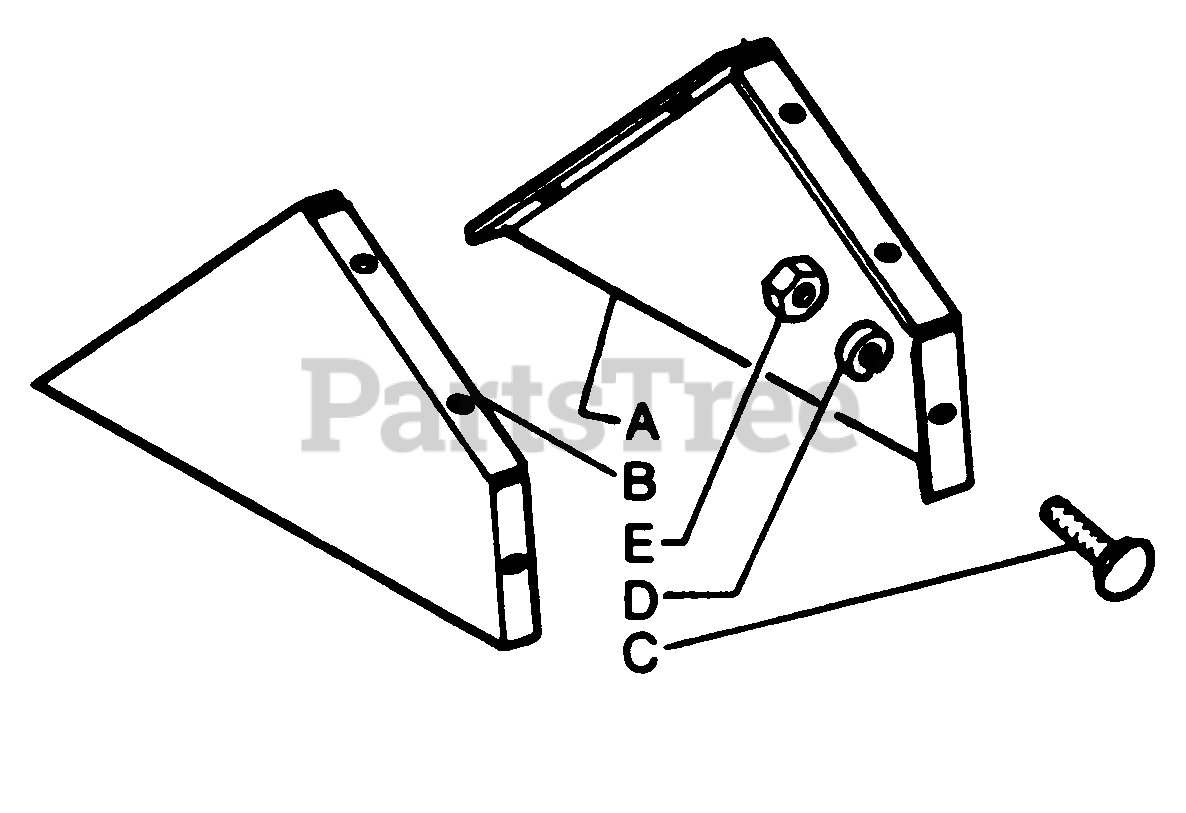

61753 - Lawn-Boy Tine Shield (SN: 800000001 - 899999999) (1988) TINE SHIELD SIDE PANELS PARTS & PARST LIST MODEL 61753 Parts Diagram

Tine Shield

TINE SHIELD SIDE PANELS PARTS & PARST LIST MODEL 61753 Parts Diagram

  • Title

A

Lawn-Boy 200826

Tine Shield Side-R.H.
(Superseded to 705387)

$

$

Not available

B

Lawn-Boy 200827

Tine Shield Side-L.H.
(Superseded to 705388)

$

$

Not available

C

Lawn-Boy 70433

Carriage Bolt, 1/4-20 x 5/8 Plated
(Superseded to 700748)

Note: Common hardware. May be purchased locally.

$

$

Not available

D

Lawn-Boy 70643

Lock Washer, 1/4 Plated
(Superseded to 3253-3)

Note: Common hardware. May be purchased locally.

$0.99

$

In Stock, Qty 20+

0

E

Lawn-Boy 70545

Nut, 1/4-20 Hex, Plated
(Superseded to 146254)

Note: Common hardware. May be purchased locally.

$

$

Not available

10

Lawn-Boy OC7741

PLATE, REAR ATTACHING

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

11

Lawn-Boy OC4471

CROSS BAR, REAR

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

12

Lawn-Boy OC4043

POST, FRONT, right hand (straight w/screw)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

13

Lawn-Boy OC4044

POST, FRONT, left hand (straight w/screw)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

14

Lawn-Boy OC5630

BRACE, TOP, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

15

Lawn-Boy OC5631

BRACE, TOP, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

16

Lawn-Boy OC5632

TOP FRAME, HTS

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

17

Lawn-Boy OC4472

POST, REAR CORNER, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

18

Lawn-Boy OC4473

POST, REAR CORNER, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

19

Lawn-Boy OC4410

"L" BRACKET

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

1

Lawn-Boy OC4402

FOOT, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

20

Lawn-Boy OC4411

3/4" LOOP

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

21

Lawn-Boy OC4750

FRONT PANEL VINYL

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

22

Lawn-Boy OC4413

WINDSHIELD

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

23

Lawn-Boy OC4414

DOOR, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

24

Lawn-Boy OC4415

DOOR, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

25

Lawn-Boy OC4658

REAR CURTAIN

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

26

Lawn-Boy OC8091

TOP, FIBERGLASS, HTS (trim)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

27

Lawn-Boy OC4419

CRANK, CHUTE CONTROL

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

28

Lawn-Boy OC4417

PARTS BAG (contents listed below)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

29

Lawn-Boy OC730

1/4"-20 LOCKNUT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

2

Lawn-Boy OC4403

FOOT, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

30

Lawn-Boy OC15

DOOR HINGE

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

31

Lawn-Boy OC788

1/4"-20 x 3/4" BOLT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

32

Lawn-Boy OC7781

SPRING, DOOR LATCH

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

33

Lawn-Boy OC3951

1/4" FLAT WASHER

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

34

Lawn-Boy OC2187

5/16"-18 x 1-1/2" BOLT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

35

Lawn-Boy OC790

3/8"-16 LOCKNUT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

36

Lawn-Boy OC783

3/8"-16 x 3/4" BOLT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

3

Lawn-Boy OC4404

GUARD, FOOT POCKET, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

4

Lawn-Boy OC4405

GUARD, FOOT POCKET, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

5

Lawn-Boy OC4406

FRAME, FRONT PANEL

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

6

Lawn-Boy OC4407

BRACE, FRONT PANEL FRAME

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

7

Lawn-Boy OC4408

SUPPORT, CHUTE CONTROL CRANK

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

8

Lawn-Boy OC7743

BRACKET, REAR ATTACHING, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

9

Lawn-Boy OC7744

BRACKET, REAR ATTACHING, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable
