61653 - Lawn-Boy 18" String Trimmer (SN: 003900001 - 003999999) (1993) ENGINE ASSEMBLY MODEL NO. 61653 Parts Diagram

18" String Trimmer

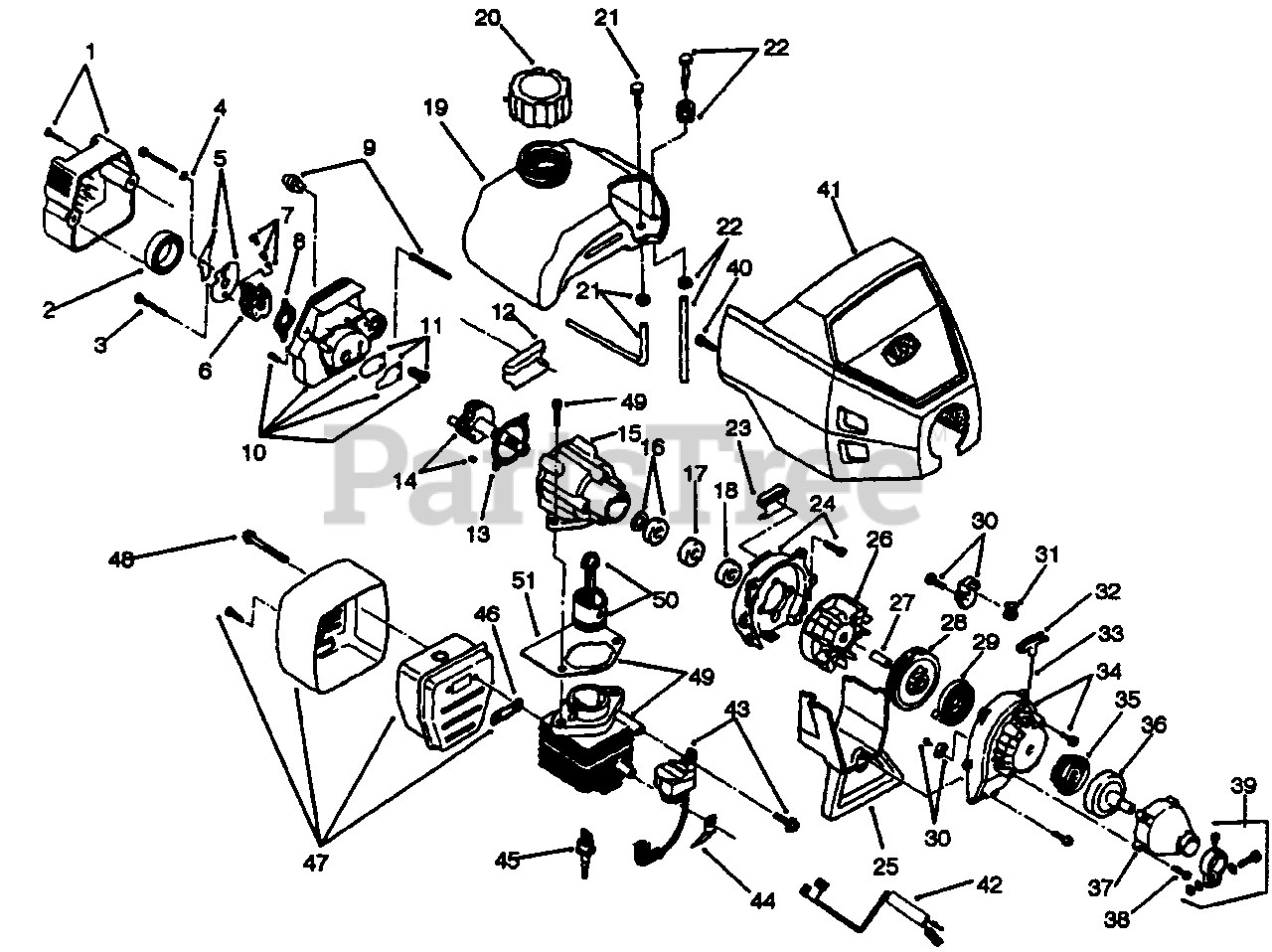

ENGINE ASSEMBLY MODEL NO. 61653 Parts Diagram

  • Title

1

Lawn-Boy 92-3200

Assy.-Carburetor/Air Clean (Inc. Ref. No.2)

$46.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-3201

Filter-Air Cleaner

$

$

Not available

3

Lawn-Boy 92-3202

Screw-Carburetor

$

$

Not available

4

Lawn-Boy 92-3203

Washer-Wave

$

$

Not available

5

Lawn-Boy 92-3204

Choke-Lever and Plate

$

$

Not available

6

Lawn-Boy 180528

Assembly-Carburetor
(Superseded to 181675)

$

$

Not available

7

Lawn-Boy 682048

Throttle Adj.-Walbro

$

$

Not available

8

Lawn-Boy 610675

Gasket-Carb. (10 Pack)

$6.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 683974

Assy.-Primer and Hose

$

$

Not available

10

Lawn-Boy 92-3206

Assembly-Carb. Mount (Incl. Ref. No. 11 & 13)

$

$

Not available

11

Lawn-Boy 684195

Assembly-Reed

$

$

Not available

12

Lawn-Boy 612134

Pad-Mounting Rear

$

$

Not available

13

Lawn-Boy 612115

Gasket (10 Pack)

$

$

Not available

14

Lawn-Boy 92-3214

Assembly-Power Shaft

$

$

Not available

15

Lawn-Boy 92-3217

Assy.-Crankcase (Incl. Ref. No. 14-18)

$

$

Not available

16

Lawn-Boy 682041

Assembly-Inner Bearing

$

$

Not available

17

Lawn-Boy 610309

Seal

$

$

Not available

18

Lawn-Boy 610308

Assembly-Outer Bearing

$

$

Not available

19

Lawn-Boy 92-3207

Assembly-Fuel Tank (Incl. Ref. No. 20-22)

$

$

Not available

20

Lawn-Boy 92-3215

Assembly-Fuel Cap

$

$

Not available

21

Lawn-Boy 683976

Assembly-Return Line

$

$

Not available

22

Lawn-Boy 682039

Assembly-Fuel Line

$

$

Not available

23

Lawn-Boy 145308

Pad-Mounting, Front

$

$

Not available

24

Lawn-Boy 683065

Assembly-Shroud

$74.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 683078

Shroud Extension & Stand
(Superseded to 153403)

$50.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 153624

Assembly-Flywheel
(Superseded to 180929)

$

$

Not available

27

Lawn-Boy 145918

Spacer

$

$

Not available

28

Lawn-Boy 683856

Assembly-Recoil Pulley

$

$

Not available

29

Lawn-Boy 613102

Spring-Recoil

$23.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 682546

Assembly-Pulley Retainer
(Superseded to 153644)

$

$

Not available

31

Lawn-Boy 611061

Guide-Rope

$

$

Not available

32

Lawn-Boy 610300

Handle-Pull
(Superseded to 181079)

$15.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613103

Rope

$

$

Not available

34

Lawn-Boy 683600

Assembly-Starter Housing
(Superseded to 181931)

$

$

Not available

35

Lawn-Boy 153591

Assembly-Clutch Rotor
(Superseded to 181598)

$

$

Not available

36

Lawn-Boy 153592

Assembly-Clutch Drum

$

$

Not available

37

Lawn-Boy 683601

Assembly-Clutch Cover
(Superseded to 180098)

$

$

Not available

38

Lawn-Boy 145888

Screw-Clutch Cover

$

$

Not available

39

Lawn-Boy 153597

Assembly-Clamp

$

$

Not available

40

Lawn-Boy 92-3213

Screws-Engine Cover

$

$

Not available

41

Lawn-Boy 92-3221

Assembly-Engine Cover

$

$

Not available

42

Lawn-Boy 92-3222

Assembly-Lead Wire

$

$

Not available

43

Lawn-Boy 683390

Assembly-Module
(Superseded to 181937)

$

$

Not available

44

Lawn-Boy 92-3223

Tab-Ground

$

$

Not available

45

Lawn-Boy 92-3210

Spark Plug

$

$

Not available

46

Lawn-Boy 610672

Gasket-Exhaust (10 Pack)
(Superseded to 180980)

$7.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 92-3209

Assembly-Muffler

$85.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 147575

Bolt-Muffler

$

$

Not available

49

Lawn-Boy 684448

Assembly-Cylinder (Incl. Ref. No. 51)
(Superseded to 181622)

$

$

Not available

50

Lawn-Boy 684449

Assy. Piston & Rod
(Superseded to 753-04367)

$

$

Not available

51

Lawn-Boy 610674

Gasket-Cylinder (10 Pack)

$

$

Not available

Lawn-Boy 92-3211

Kit-Engine Gasket

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180529

Kit-Carb. Repair, Walbro
(Superseded to 181526)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 153309

Kit-Diaphragm, Walbro
(Superseded to 181069)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180530

Kit-Piston Ring

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3218

Assembly-Short Block (Incl. Ref. No. 14-18, 45, & 49-51)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 610676

Flywheel Key-(10 Pack)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3289

Starter Housing Set Screw

Note: Not Illustrated

$

$

Not available
