616 Special (1690713) - AGCO Lawn Tractor, 16hp Hood, Grille & Dash Group Parts Diagram

Lawn Tractor, 16hp

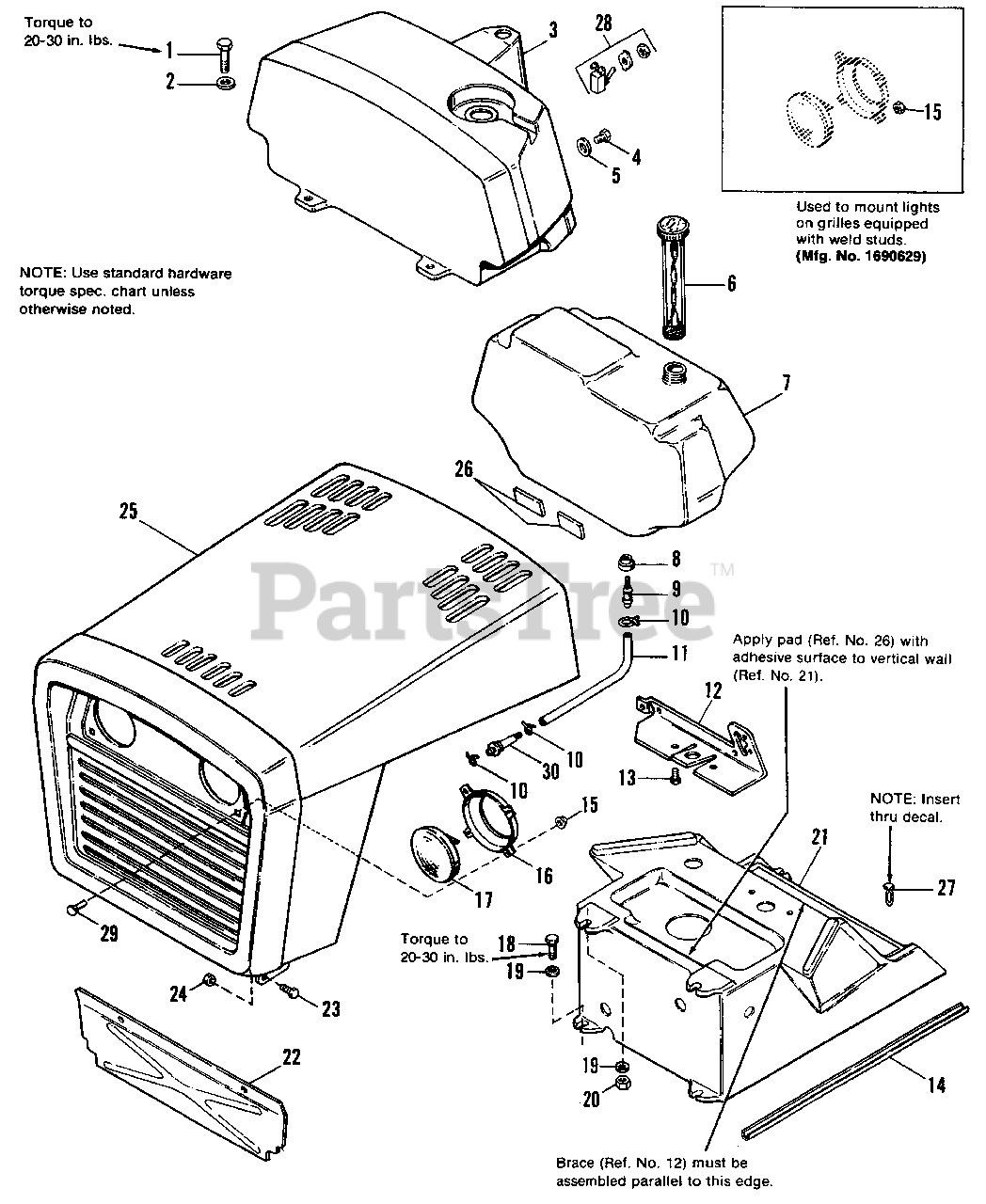

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 2821961

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4

$

$

Not available

2

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

3

Simplicity 1673058

DASH BOARD, Top

$

$

Not available

4

Simplicity 2830561

SCREW, #14 x 3/4

$

$

Not available

5

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

6

Simplicity 2171252SM

CAP, Fuel

$31.99

$

In Stock, Qty 20+

0

7

Simplicity 1687038SM

TANK ASSY., Fuel

Note: Reference No. 7 includes Ref. Nos. 8, 9, 10 (Qty. 1) 10 & 11.

$

$

Not available

8

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

9

Simplicity 1666447SM

FITTING

$

$

Not available

10

Simplicity 2154372

CLAMP, Hose

$

$

Not available

11

Simplicity 1718678SM

HOSE, FUEL

$

$

Not available

12

Simplicity 1665301

BRACE, Dash

$

$

Not available

13

Simplicity 2825592SM

SCREW, Hex, Taptite, 1/4-20 x 1

$2.99

$

Usually ships in 2-12 days

0

14

Simplicity 1672123

EDGING, Lower Dash

Note: Used on Mfg. No. 1690684, 1690849, 1690879, 1690915 & 1690934.

$

$

Not available

15

Simplicity 1960517SM

LOCKNUT, Pal, #10-24 (Qty. 8 on 1690629 only)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1665813SM

BRACKET, Support, Headlight

$27.99

$

Usually ships in 2-12 days

0

17

Simplicity 1665853SM

LAMP, Sealed Beam, G.E. #4411-1

$

$

Not available

18

Simplicity 2829783

SCREW, Hex, Taptite, 1/4-20 x 1

$

$

Not available

19

Simplicity 2831704

LOCKWASHER, Dished Type, 1/4

$

$

Not available

20

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

21

Simplicity 1707393SM

DASH BOARD, Bottom

$

$

Not available

22

Simplicity 1660805SM

BAFFLE, Engine, Front

$

$

Not available

23

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

24

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

25

Simplicity 1669410

HOOD & GRILLE ASSY.

$

$

Not available

26

Simplicity 2173335

PAD

$

$

Not available

27

Simplicity 1667248SM

CLIP, Canoe

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

29

Simplicity 936363

BOLT, Carriage, #10-24 x 1/2

Note: Used on Mfg. No. 1690684, 1690849, 1690879, 1690915 & 1690934.

$

$

Not available

30

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0
