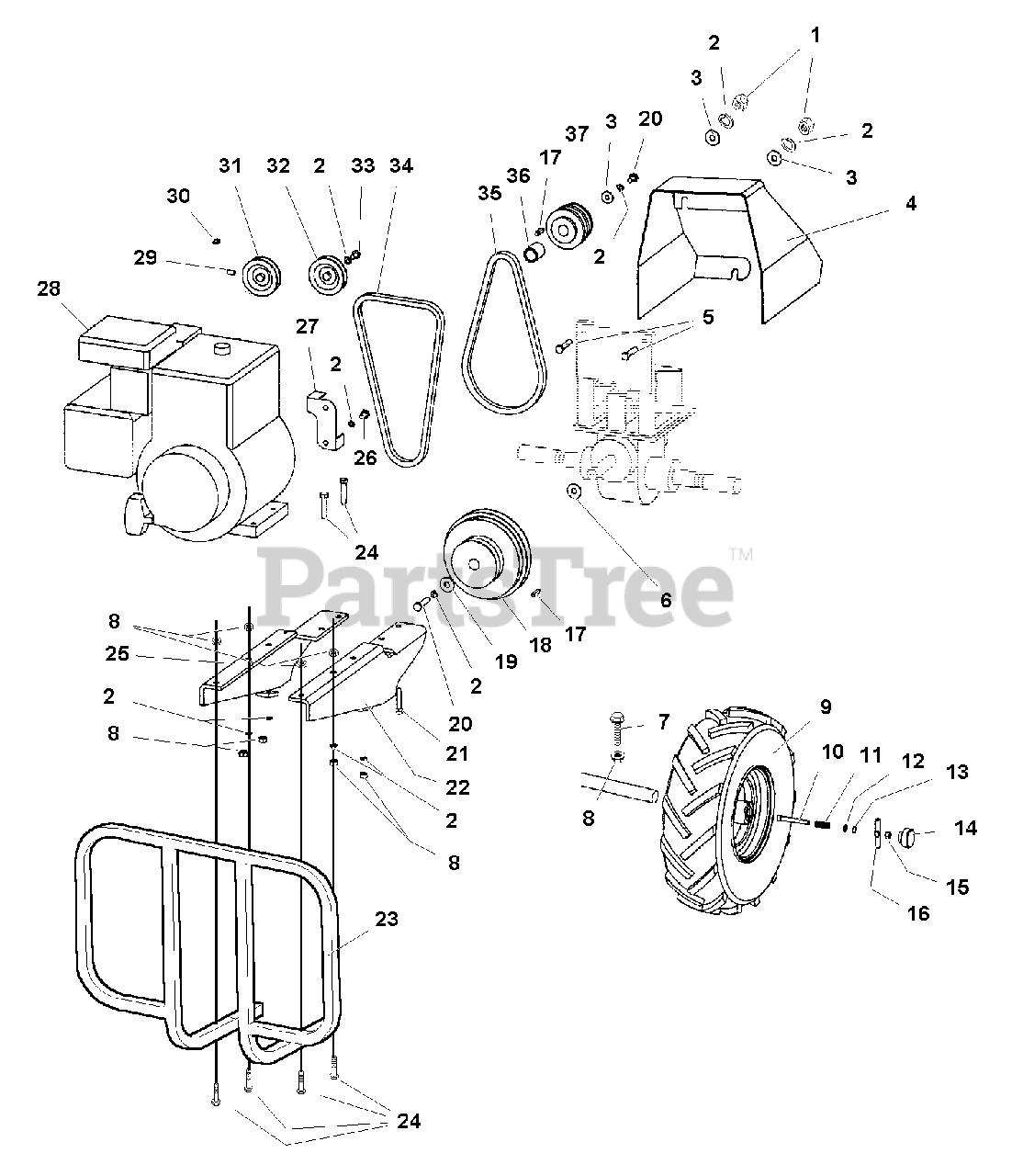

616 RT (1693704) - Simplicity Rear-Tine Tiller, 6hp Engine Mount, Belts & Wheels Group Parts Diagram

Rear-Tine Tiller, 6hp

Engine Mount, Belts & Wheels Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex 5/16" - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, Spring 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1960044SM

WASHER, 5/16"

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1716784SM

COVER, Belt

$93.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 2860164SM

WASHER, 5/8"

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 1921332SM

CAPSCREW, Hex Flange Head, 5/16"- 18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

8

Simplicity 1935048SM

NUT, Hex Flange 5/16"- 18 Two, Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1716773SM

WHEEL & TIRE ASSEMBLY, Tiller LH

$146.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716775SM

WHEEL & TIRE ASSEMBLY, Tiller RH

$153.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716782SM

CAPSCREW, Hex Socket Head, 1/4"- 20 x 2-5/32"

$5.99

$

Usually ships in 2-12 days

0

11

Simplicity 1716781SM

SPRING

$15.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960151SM

WASHER, 1/4"
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 1716779SM

RING, Snap

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716777SM

KNOB, Wheel Lock Out

$16.99

$

Usually ships in 2-12 days

0

15

Simplicity 2828372SM

NUT, Hex Keps 1/4" - 20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

16

Simplicity 1716778SM

KNOB, Lock Out Set of Two

$54.99

$

Usually ships in 2-12 days

0

17

Simplicity 2805850SM

KEY, Parrallel

$

$

Not available

18

Simplicity 1716769SM

PULLEY, Transmission

$

$

Not available

19

Simplicity 1716770SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

20

Simplicity 1921515SM

CAPSCREW, 5/16"- 24 x 3/4" G5

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960470SM

CAPSCREW, Hex Socket Head, 5/16"- 18 x 11/4" G8

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1716753SM

BRACKET, Engine Mount LH

$70.99

$

Usually ships in 2-12 days

0

23

Simplicity 1721528SM

BUMPER, Guard

$265.99

$

Usually ships in 2-12 days

0

24

Simplicity 1922127SM

CAPSCREW, 5/16"- 18 x 1 3/4" G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1716752SM

BRACKET, Engine Mount RH

$72.99

$

Usually ships in 2-12 days

0

26

Simplicity 1716756SM

CAPSCREW, 5/16"- 24 x 1/2"

$

$

Not available

27

Simplicity 1721527SM

GUIDE, Belt Forward

$55.99

$

Usually ships in 2-12 days

0

28

ENGINE, 6HP Briggs & Stratton - Engine Model 120492, Engine Type 0119-E1

$

$

Not available

29

Simplicity 1716758SM

SCREW, Set 1/4"- 20 x 1/4"

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 2805121SM

KEY, Woodruff

$2.99

$

In Stock, only 1 left!

0

31

Simplicity 1716757SM

PULLEY, Engine, Reverse

$70.99

$

Usually ships in 2-12 days

0

32

Simplicity 1716761SM

PULLEY

$

$

Not available

33

Simplicity 1716760SM

CAPSCREW, Hex Head, 5/16"- 24 x 1-1/2"
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

34

Simplicity 1721523SM

V-BELT, Reverse

$22.99

$

Usually ships in 2-12 days

0

35

Simplicity 1716766SM

V-BELT, Forward

$23.99

$

In Stock, only 1 left!

0

36

Simplicity 1716762SM

SPACER, Engine Pulley

$5.99

$

Usually ships in 2-12 days

0

37

Simplicity 1716764SM

PULLEY, Engine, Forward

$96.99

$

Usually ships in 2-12 days
