616 H (1691504) - AGCO Lawn Tractor, 16hp Frame & Footrest Group Parts Diagram

Lawn Tractor, 16hp

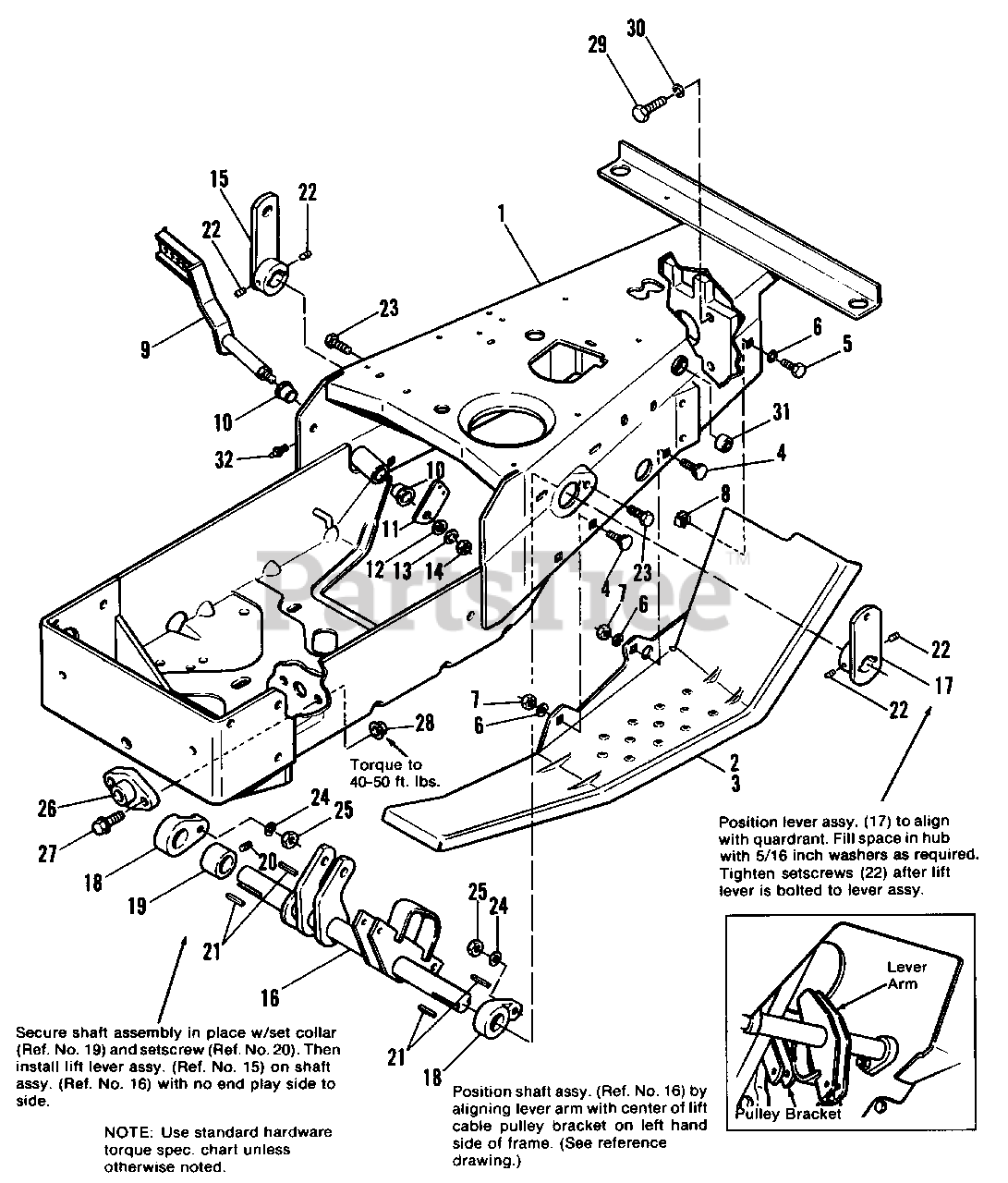

Frame & Footrest Group Parts Diagram

  • Title

1

Simplicity 1667098

FRAME & BUSHING ASSY. (7117 Only)

Note: Ref. No. 1 includes Ref. No's. 31 & 32.

$

$

Not available

32

Simplicity 1667097

FRAME & BUSHING ASSY. (7112 & 7116 Only)

$

$

Not available

2

Simplicity 1665909SM

FOOTREST, R.H.
(Superseded to 1665909CSM)

$87.99

$

Usually ships in 2-12 days

0

3

Simplicity 1665908SM

FOOTREST, L.H.
(Superseded to 1665908CSM)

$87.99

$

Usually ships in 2-12 days

0

4

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

5

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2820470

NUT, Speed, Tinnerman, 5/16-18

$

$

Not available

9

Simplicity 1674137SM

FOOT PEDAL ASSY.

$

$

Not available

10

Simplicity 2108419

BUSHING

$

$

Not available

11

Simplicity 2157300SM

ARM, Pedal Foot

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

14

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 2157625SM

FRONT LIFT LEVER ASSY. (R.H.)

$233.99

$

Usually ships in 2-12 days

0

16

Simplicity 1663168

LIFT SHAFT ASSY.

$

$

Not available

17

Simplicity 171593

LIFT LEVER ASSY. (L.H.)

$

$

Not available

18

Simplicity 2170975SM

BEARING, Lift Lever

$

$

Not available

19

Simplicity 2157624

COLLAR, Set

$

$

Not available

20

Simplicity 2828709

SETSCREW, Cup Pt., 5/16-18 x 3/8

$

$

Not available

21

Simplicity 2157652

KEY

$

$

Not available

22

Simplicity 2828734

SETSCREW, Skt. Hd., 5/16-18 x 1/4

$

$

Not available

23

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1653876SM

BEARING, Pivot

$8.99

$

Usually ships in 2-12 days

0

27

Simplicity 2828727

CAPSCREW, Whiz, 3/8-16 x 1-1/4

$

$

Not available

28

Simplicity 2828352

LOCKNUT, Hex, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 2821212

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

30

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

31

Simplicity 2174662SM

BUSHING

$58.99

$

Usually ships in 2-12 days

0

32

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0
