616 H (1691504) - AGCO Lawn Tractor, 16hp 36" Mower Deck & Arbor Group Parts Diagram

Lawn Tractor, 16hp

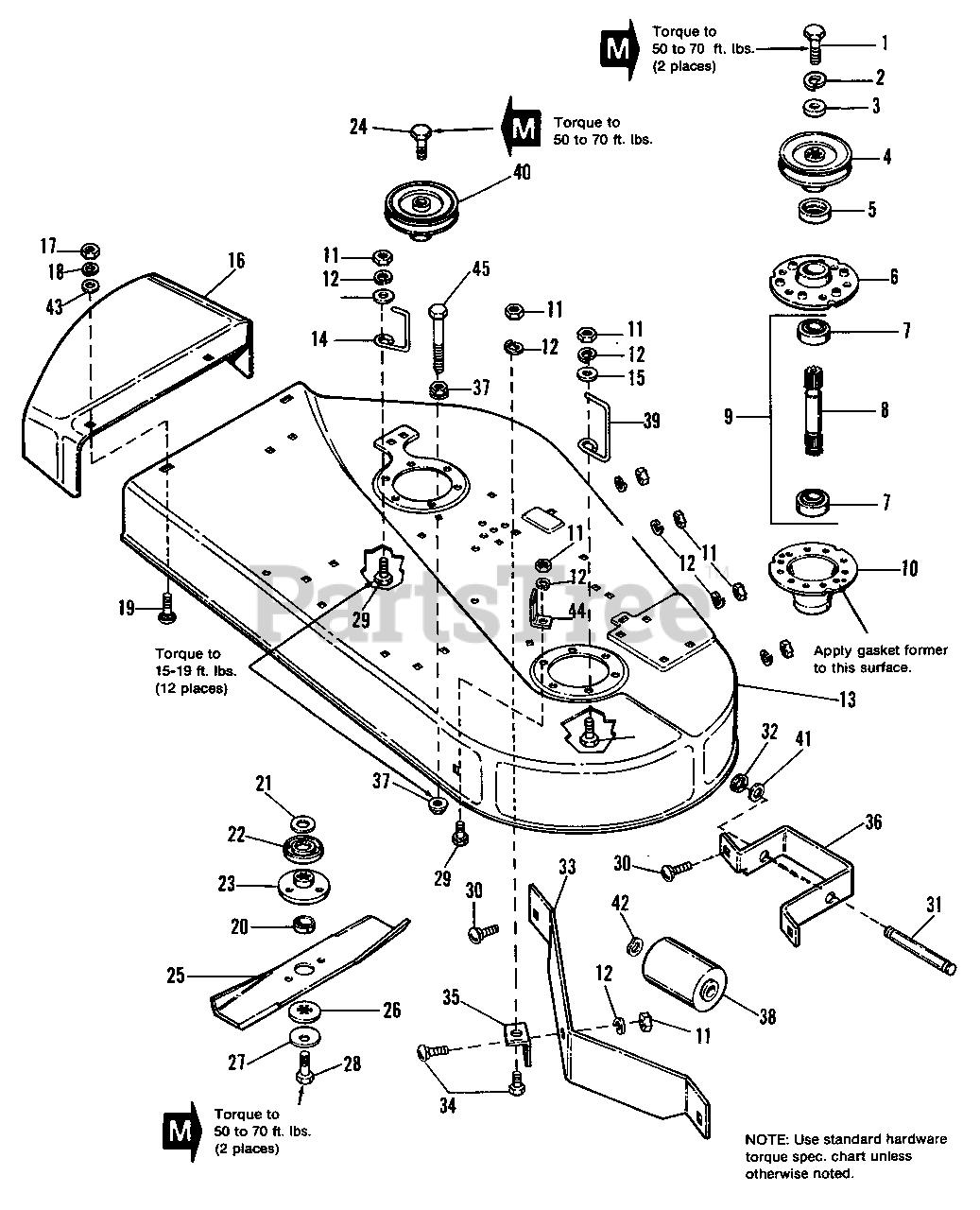

36" Mower Deck & Arbor Group Parts Diagram

  • Title

1

Simplicity 1930585SM

CAPSCREW, Hex Hd., 7/16-14 x 3-1/2

$7.49

$

In Stock, only 2 left!

0

2

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1933263SM

WASHER, 29/64 x 1-1/4 x 1/4
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 1673109ASM

PULLEY ASSY.

$109.99

$

In Stock, only 1 left!

0

5

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1655729ASM

HOUSING, Top

$14.99

$

Usually ships in 2-12 days

0

7

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

8

Simplicity 1685245SM

SHAFT, Arbor (Incl. Ref. No. 20)

$74.99

$

In Stock, Qty 6

0

9

Simplicity 1685251SM

SHAFT & BEARING ASSY. (Incl. Ref. Nos. 7, 8, 20)

$99.99

$

In Stock, Qty 13

0

10

Simplicity 1655728A

HOUSING, Bottom

$

$

Not available

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1700325C

HOUSING, 36" (Incl. Safety Decals)

$

$

Not available

14

Simplicity 1657660SM

STOP, Belt

$22.99

$

Usually ships in 2-12 days

0

15

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

16

Simplicity 1702190SM

DEFLECTOR, Mower (1690838)
(Superseded to 1702190ASM)

$112.99

$

Usually ships in 2-12 days

0

16

Simplicity 1702190A

DEFLECTOR, Mower (1691419)
(Superseded to 1702190ASM)

$112.99

$

Usually ships in 2-12 days

0

17

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

19

Simplicity 1931348SM

BOLT, Carriage, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1672132SM

COLLAR, Arbor

$12.99

$

In Stock, only 4 left!

0

21

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

22

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

23

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

24

Simplicity 1930584SM

CAPSCREW, Hex Hd., 7/16-14 x 2-3/4

$7.99

$

Usually ships in 2-12 days

0

25

Simplicity 1657589ASM

BLADE, 36"

$25.99

$

In Stock, Qty 5

0

26

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

27

Simplicity 1656916SM

WASHER, Cup

$7.49

$

In Stock, Qty 20+

0

28

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1960373SM

SCREW, Hex, Wash. Hd., Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

31

Simplicity 1603205SM

SHAFT, Roller, Center

$29.99

$

Usually ships in 2-12 days

0

32

Simplicity 2827793SM

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 15

0

33

Simplicity 1671577SM

BAFFLE
(Superseded to 1671577ASM)

$

$

Not available

34

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

35

Simplicity 1668500A

BRACKET, Mower
(Superseded to 1668500SM)

$19.99

$

In Stock, only 1 left!

0

36

Simplicity 1705953SM

BRACKET, Center, Roller
(Superseded to 1705953ASM)

$16.99

$

Usually ships in 2-12 days

0

37

Simplicity 1927557SM

NUT, Hex Flange Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

39

Simplicity 1673106SM

STOP, Belt

$16.99

$

In Stock, only 2 left!

0

40

Simplicity 1655839SM

PULLEY ASSY.
(Superseded to 1655839ASM)

$82.99

$

Usually ships in 2-12 days

0

41

Simplicity 2156116

WASHER, Nylon

$

$

Not available

42

Simplicity 1678100SM

WASHER, Wave

$7.99

$

Usually ships in 2-12 days

0

43

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 10

0

44

Simplicity 1678339

BRACKET, Lift

$

$

Not available

45

Simplicity 1925690SM

CAPSCREW, Hex Hd., 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0
